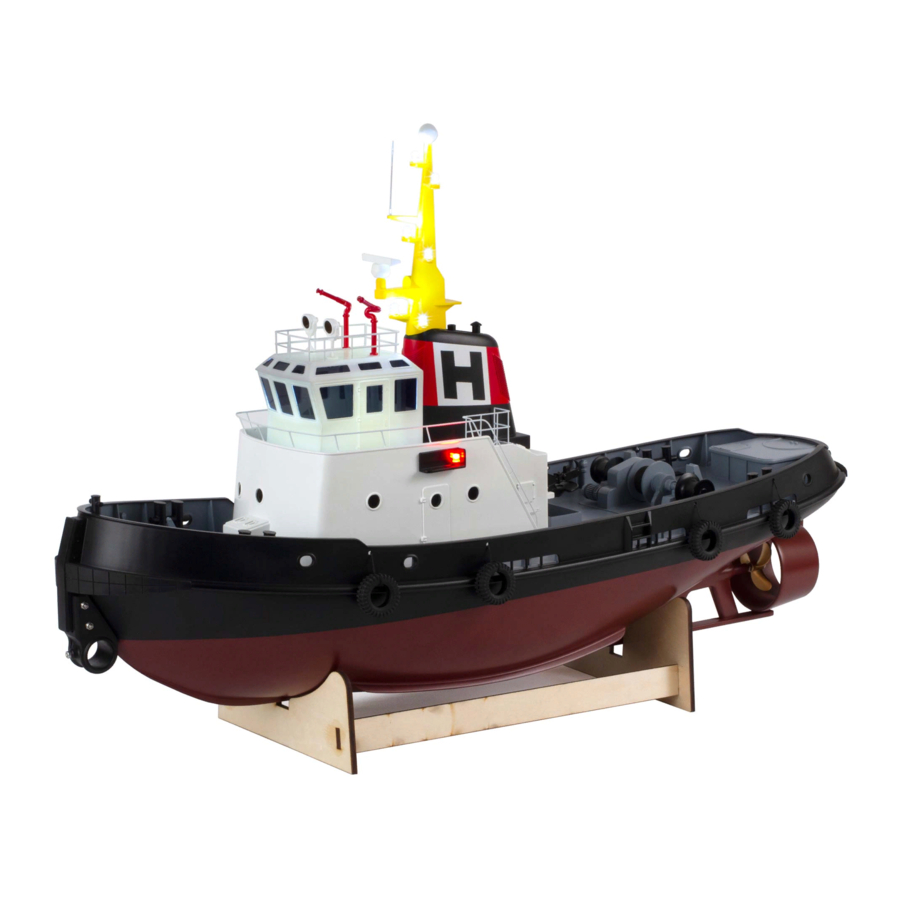

- Page 1 Horizon Harbor Horizon Harbor Tug Boat Tug Boat ™ ™ 30-INCH RTR 30-INCH RTR PRB08036 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente...
-
Page 2: Water-Resistant Boat With Waterproof Electronics
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE... -
Page 3: Table Of Contents
General Precautions Wet Conditions Maintenance • Read the WET CONDITIONS MAINTENANCE • Drain any water that has collected in the hull procedures and make sure that you have all the tools by removing canopy and tilting the boat in the you will need to properly maintain your boat. -
Page 4: Recommended Tools And Materials
Recommended Tools and Materials • Needle nose pliers • Paper towel • Rubbing alcohol • Phillips screwdriver: #1 • Hex wrench: 1.5mm, 2mm, 2.5mm, 3mm • Clear tape (DYNM0102) ® • Pro Boat Marine Grease and Gun • Hook and Loop Tape Set, WP 4pcs Boat Stand Assembly 1. -
Page 5: Battery And Charger
Battery and Charger Choose a charger designed to charge the recommended Refer to your charger manual for charging instructions Spektrum 3S 11.1V Smart 30C LiPo battery with IC5™ and safety information. Connector (SPMX50003S30H5). NOTICE: Never charge a battery in the boat or damage We recommend the Spektrum S2100 AC Charger or the may result. -
Page 6: Transmitter Functions
Transmitter Functions TRIM TRIM A. Steering Wheel Controls direction (left/right) of the model B. Throttle Trigger Controls speed and direction (forward/ brake/reverse) of the model C. CH3 Activates the water pump to fire the water cannons D. ON/OFF Switch Turns the power ON/OFF E. -
Page 7: Binding
Binding You must rebind when: • When you want different failsafe positions (e.g. when Binding is the process of HRZ00011 throttle or steering reverse has been changed). LiPo|NiMH 2-in-1 ESC/Rx 40A 2-3S LiPo programming the receiver/ESC F/R/B|F/R – + • Binding the receiver to a different transmitter. to recognize the GUID (Globally ... -
Page 8: Getting Started
TRIM TRIM Getting Started 1. Power on the transmitter. IMPORTANT: Verify that the jumpers on the receiver/ESC correctly corresponds to the battery chemistry. 2. Connect the battery to the EC5 ™ connectors on the receiver/ESC. 3. Power on the receiver/ESC. 4. -
Page 9: Boating Tips
Boating Tips When running your boat for the first time, we Never operate your boat in less than 3 inches (7.6 cm) recommend calm wind and water conditions so that you of water. can learn how the boat responds to your control. CAUTION: Never operate your boat in extreme Maximum speeds are only achieved when the water temperatures or turbulent water. -
Page 10: Drive Shaft Maintenance
Drive Shaft Maintenance 5. Clean the shaft using paper towels and rubbing Quick Service alcohol. Always replace the drivetrain parts when they are damaged 6. Lubricate the full length of the shaft using marine or show visible wear or injury and damage may result. grease (DYNE4201). -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds Throttle channel is reversed Reverse throttle channel on transmitter to other controls Damaged propeller, shaft or motor Replace damaged parts Extra noise or extra vibration Propeller is out of balance Balance or replace propeller Boat battery charge is low Completely recharge battery... -
Page 12: Limited Warranty
LIMITED WARRANTY What this Warranty Covers — Horizon Hobby, LLC, please visit our website at www.horizonhobby.com, submit (Horizon) warrants to the original purchaser that the product a Product Support Inquiry, or call the toll free telephone purchased (the “Product”) will be free from defects in mate-... -
Page 13: Warranty And Service Contact Information
European Hanskampring 9 Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 FCC Information Contains FCC ID: 2AVRN-KYHT01 This device complies NOTE: This equipment has been tested and found to with part 15 of the FCC rules. Operation is subject to the... -
Page 14: Replacement Parts
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # English Deutsch Français Italiano Horizon Multi Model Horizon Multi-Modell Émetteur Horizon multi- Trasmittente Horizon Multi HRZ00010 LT Transmitter LT-Sender modèle LT Model LT 2-in-1 40A Brushed 2-in-1 40 A gebürsteter Geschwin- Variateur ESC/récepteur ESC/Ricevitore LT 2-in-1 40... - Page 15 59107 Created: 03/2020 ©2020 Horizon Hobby, LLC. Pro Boat, the Pro Boat logo, Horizon Harbor, EC5, IC5, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
