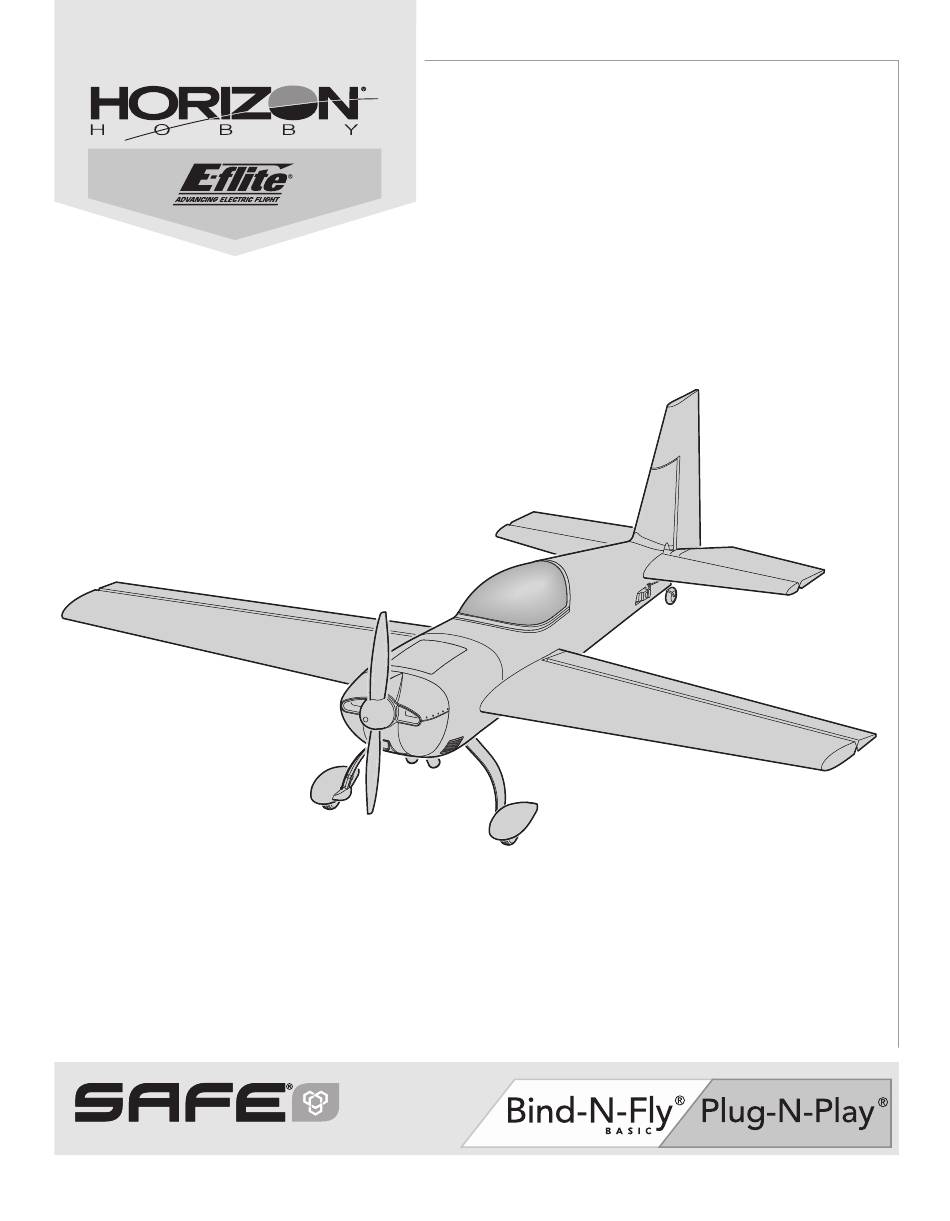

- Page 1 Extra 300 1.3m Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE ® Select Technology, Optional Flight Envelope Protection...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi... -
Page 3: Table Of Contents
Box Contents Quick Start Information Set up your transmitter using the Transmitter Setup transmitter setup chart Hi Rate 100% Low Rate 70% Travel and Dual 50mm (2 in) 30mm (1.5 in) Rates 60mm (2.38 in) 45mm (1.75 in) 100mm (4 in) 70mm (2.75 in) 3.5 –... -
Page 4: Select Technology (Bnf Basic)
SAFE ® Select Technology (BNF Basic) ® The evolutionary SAFE Select technology can offer an extra level of protection so you can perform the fi rst fl ight with confi dence. No complex transmitter programming is required. Just follow the simple bind process to make the SAFE Select system active. When activated, bank and pitch limitations keep you from over-controlling and automatic self-leveling makes recovery from risky or confusing attitudes as simple as releasing the sticks. -
Page 5: Model Assembly
Model Assembly Landing Gear Installation 1. Fit the landing gear into the slot. 2. Install the landing gear cover and secure using four 3 x 15 mm screws. Tail Installation Horizontal Stabilizer 1. Insert the horizontal stabilizer tube into one of the stab halves. 2. - Page 6 Model Assembly Continued Wing Installation 1. Remove the magnetic bottom hatch cover. 2. Slide the wing joiner into one of the wing panels. Insert that panel into the wing opening in the fuselage and install the other wing panel onto the wing joiner.
- Page 7 Model Assembly Continued PNP Receiver Selection and Installation 1 = Throttle ™ The Spektrum AR636 receiver is recommended for this airplane. 2 = Aileron If you choose to install another receiver, ensure that it is at least a 3 = Elevator 4 = Rudder 4-channel full range receiver.
-
Page 8: Transmitter And Receiver Binding / Safe Select (Bnf Basic)
Transmitter and Receiver Binding / Enabling and Disabling SAFE Select (BNF Basic) This product requires an approved Spektrum ™ DSM2 ® /DSMX ® compatible Switching ON SAFE Select Binding Sequence transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. -
Page 9: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection ™ The Spektrum 2200mAh 14.8V 4S 30C Li-Po battery (SPMX22004S30) is recommended. Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the Spektrum Li-Po battery packs to fi... -
Page 10: Select Switch Designation
® SAFE Select Switch Designation SAFE ® Select technology can be easily assigned to any open switch Mode 1 and 2 Transmitters (two or three position) on the transmitter. With this new feature, you now have the fl exibility to switch SAFE On and Off while in fl ight. IMPORTANT: Before assigning your desired switch, ensure that the travel for that channel is set at 100% in both direction. -
Page 11: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the 90 –100 mm +/- 3mm root. This CG location has been determined with the recommended back from leading edge Li-Po battery (SPMX22004S30). of wing at the fuselage. -
Page 12: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. NOTICE: If a crash is imminent, reduce the throttle and trim fully. Failure to do so could result in extra damage to the airframe, as well as damage Range Check your Radio System to the ESC and motor. -
Page 13: Post Flight
Post Flight 1. Disconnect the fl ight battery from the ESC (Required for Safety 5. Repair or replace all damaged parts. and battery life). 6. Store the fl ight battery apart from the aircraft and monitor the 2. Power OFF the transmitter. battery charge. -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater respond to throttle but responds to Throttle channel is reversed... -
Page 15: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained 1. All pilots shall avoid fl ying directly over unprotected people, vessels, fl ight in the atmosphere. It may not exceed limitations of this code and is vehicles or structures and shall avoid endangerment of life and intended exclusively for sport, recreation, education and/or competition. -
Page 16: Limited Warranty
Product Support Inquiry, or call the toll free telephone number Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the referenced in the Warranty and Service Contact Information section to product purchased (the “Product”) will be free from defects in materials... -
Page 17: Contact Information
EMC Directive. collections point for the recycling of waste electrical and EFL11550 Extra 300 1.3 M BNF BASIC; Horizon Hobby, LLC hereby electronic equipment. The separate collection and recycling declares that this product is in compliance with the essential... - Page 18 Recommended Receivers • Empfohlene Empfänger Récepteurs Recommandés • Ricevitori Raccomandati PNP Only • Nur PNP • PNP Uniquement • Solo PNP Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice AR610 6-Channel Coated Air Ummantelter AR610-6-Kanal- Récepteur aérien avec Ricevente aereo AR610 6 canali SPMAR610 Receiver...
-
Page 19: Replacement Parts
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice EFL11576 Fuselage w/Rudder Rumpf mit Seitenruder Fuselage avec gouverne Fusoliera con timone EFL11577 Wing Tragfl ächen Aile EFL11578 Horizontal Stabilizer Höhenleitwerk... -
Page 20: Optional Parts
Optional Parts • Optionale Bauteile • Pièces optionnelles • Pezzi opzionali Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice EFLA250 Park Flyer Tool Assortment, 5 pc Park Flyer Werkzeugsortiment, 5 teilig Assortiment d'outils park fl yer, 5pc Park Flyer assortimento attrezzi, 5 pc EFLAEC302 EC3 Battery Connector, Female (2) - Page 21 E-fl ite, the E-Flite logo, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, Passport, Prophet, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
