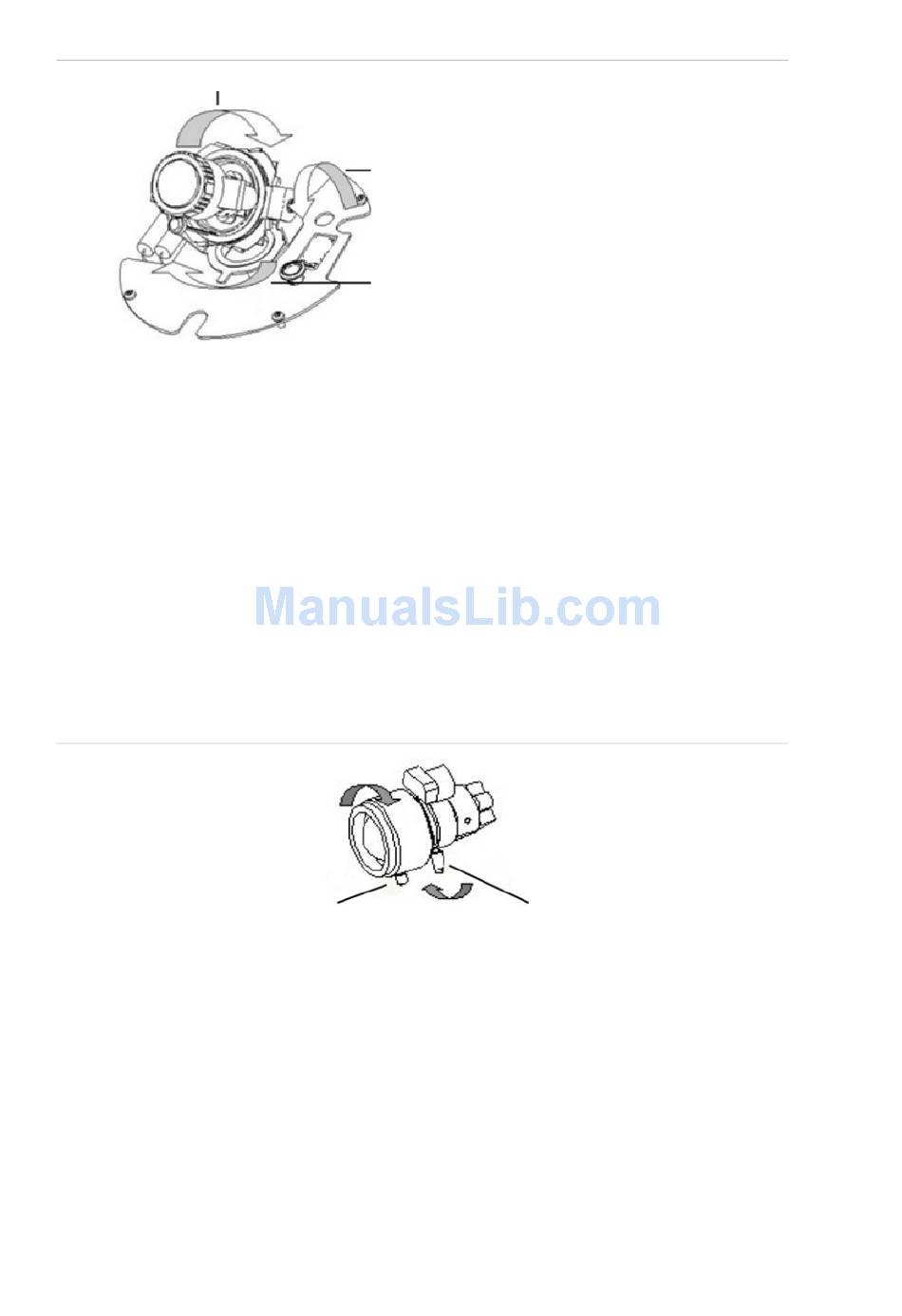

Figure 3: Camera adjustment
Platform horizontal adjustment (0 to 180°)
To adjust the lens:
See Figure 3 above.
1. To adjust the horizontal angle of the platform up to 180 degrees, turn the
platform.
2. To adjust the horizontal angle of the rotor up to 350 degrees, turn the rotor on
the platform.
3. To adjust the vertical angle of the platform up to 90 degrees, turn the
platform.
Adjust the focus and zoom
Figure 4: Zoom and focus adjustment
Zoom ring thumbscrew
To adjust the camera zoom and focus:
1. Loosen the zoom ring thumbscrew and turn the zoom ring to set the desired
zoom. Tighten the thumbscrew.
2. Loosen the focus ring thumbscrew and turn the focus ring to set the desired
focus. Tighten the thumbscrew.
6
Platform vertical adjustment (0 to 90°)
Rotor horizontal adjustment (0 to 350°)
Focus ring thumbscrew
UltraView UVD-6120VE-2 Digital WDR Dome Camera User Manual
