Upper and Lower Heat Shields

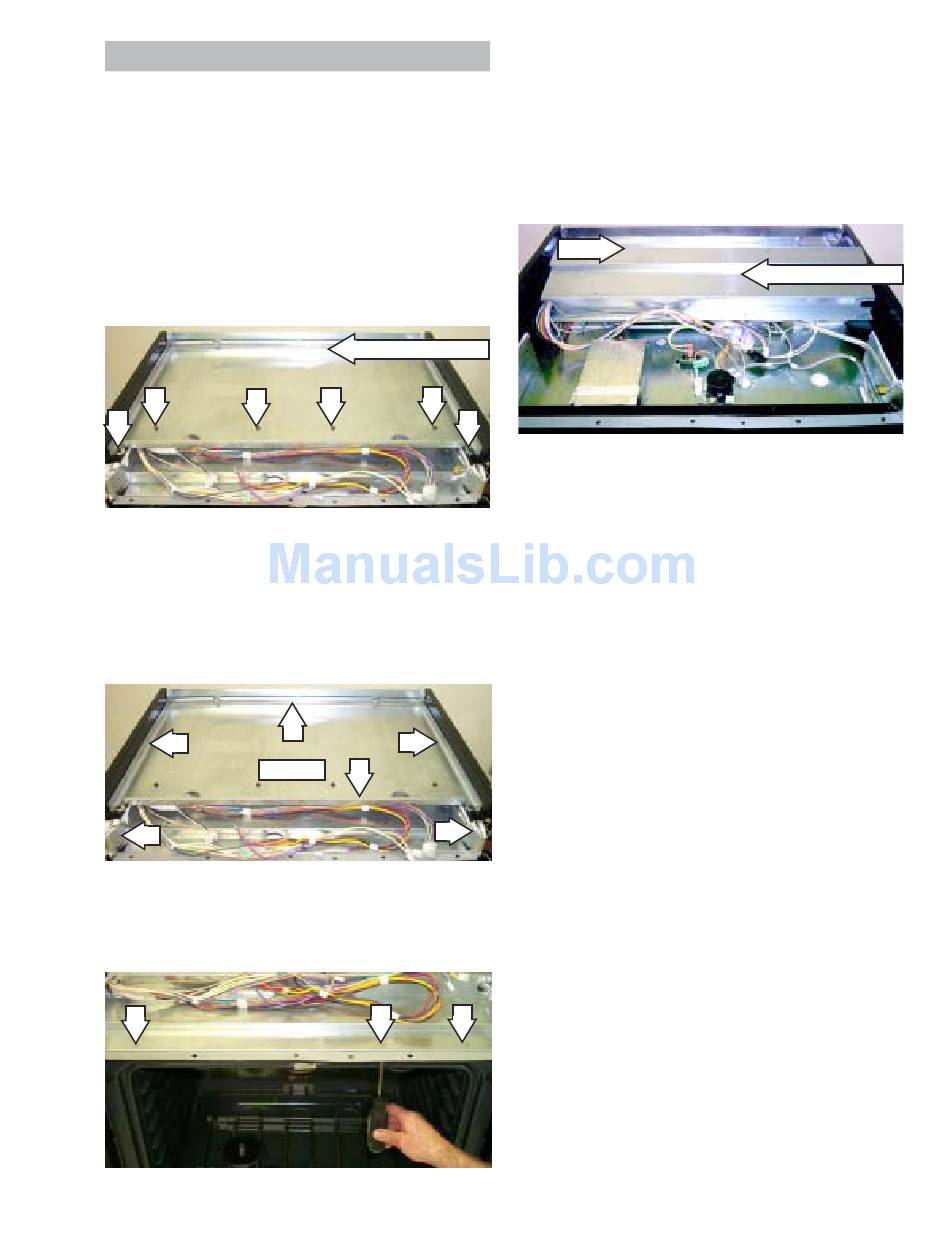

The upper and lower heat shields are located
under the maintop burner assembly.
To remove the upper and lower heat shields:
1. Remove the maintop burner assembly (see
Maintop Burner Assembly).
2. Remove the 6 hex-head screws that hold the
upper heat shield in place. Remove the upper
heat shield.
Note: For proper operation, air to the burners is
supplied only from around the burner knobs.
When reassembling, it is important that all seals
on the upper heat shield are in place (see photo
below). Replace any damaged or worn seals.
Seals
3. Open the door then remove the 3 hex-head
screws that hold the lower heat shield in
place.
4. Roll the lower heat shield back to access oven
Note: When reassembling, it is important that the
seal on the lower heat shield is in place; it is
located on the bottom edge (see photo). Replace
if damaged or worn.
Upper Heat Shield
– 43 –
components.
Seal
Lower Heat Shield
