Bake Burner Glow-Bar Igniter; Broil Burner Glow-Bar Igniter - GE Profile J2S968 SERIES Technical Service Manual

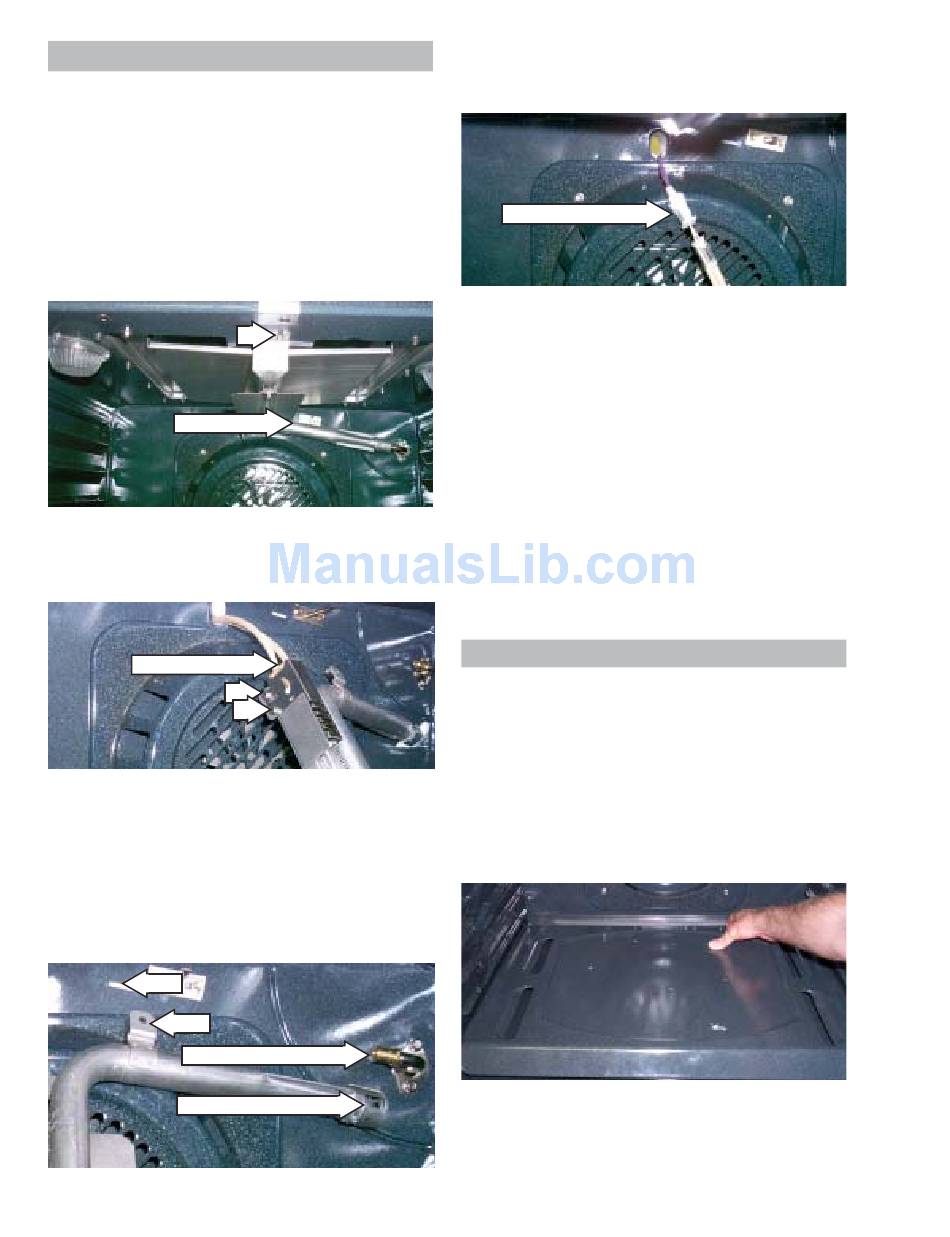

Broil Burner Glow-bar Igniter

The broil burner glow-bar igniter has an
approximate resistance value of 141 Ω.
To remove the broil burner glow-bar
igniter:
1. Remove the oven door (see Oven Door).
2. Remove the screw that holds the burner in
place. Lower the burner.
Broil Burner
3. Remove the 2 hex-head screws that hold the
glow-bar igniter to the burner.
Glow-bar Igniter
4. Remove the burner.
Note: When reinstalling the burner, be sure the
tab on the burner is inserted into the slot on the
rear wall of the oven. Make sure the burner inlet
opening is over the gas outlet.
Slot
Tab
Burner Gas Outlet
Burner Inlet Opening
5. Gently pull the glow-bar connector through the
oven wall. Disconnect the glow-bar igniter
wires.
Glow-bar Connector
6. Remove the glow-bar igniter from the oven.
IMPORTANT: When reinstalling the glow-bar, the
connector end must be positioned OUTSIDE the
range insulation. Do not allow the connector next
to or inside the insulation. Allow the stiff over
sleeve to position the connector away from the
insulation.
Insulation should be allowed to close in around the
igniter lead wires thus protecting the connector
from any heat loss at the insulation opening.

Bake Burner Glow-bar Igniter

The bake burner glow-bar igniter has an
approximate resistance value of 178 Ω.
To remove the bake burner glow-bar igniter:
1. Remove the oven door (see Oven Door).
2. Remove the bottom pan by sliding it
forward until it can be removed from the oven.
– 28 –
