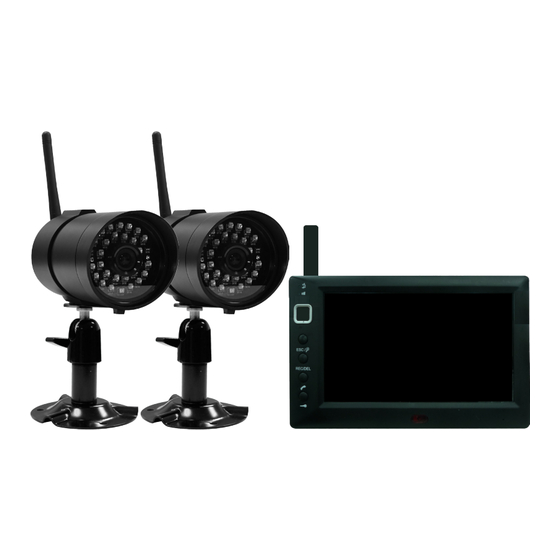

Response CWD3 Installation And Operating Instructions Manual

Digital wireless colour camera recordable cctv kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital Wireless Colour Camera
Recordable CCTV Kit CWD3
Installation and Operating Instructions
YOUR HELPLINE 0844 736 9149
Lines open Monday to Friday 9.00am to 5.00pm. Calls charged at local rates.
www.friedland.co.uk
These instructions should be retained in a safe place for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Response CWD3

Summary of Contents for Response CWD3

  • Page 1 Digital Wireless Colour Camera Recordable CCTV Kit CWD3 Installation and Operating Instructions YOUR HELPLINE 0844 736 9149 Lines open Monday to Friday 9.00am to 5.00pm. Calls charged at local rates. www.friedland.co.uk These instructions should be retained in a safe place for future reference.

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION—3 2. KIT CONTENTS—6 3. INSTALLATION—8 3.1 Contents and Connections 8 3.2 Powering up the system 3.3 Setting the Camera Channel (Optional) 3.4 Pairing the Camera to Receiver (Optional) 3.5 Camera Installation 11 4. MONITOR PANEL INTRODUCTION—12 5. SYSTEM INTRODUCTION—13 5.1 Icon Functions 5.2 System Menu 6.

  • Page 3: Introduction-3

    1. INTRODUCTION The Digital Wireless Colour Camera Recordable CCTV Kit is a wireless security system designed to view and capture video clips of any motion viewed by the wireless camera and store them in on a micro SD memory card. The wireless camera supplied is colour, weatherproof and suitable for day/night use for the protection of your home or office, etc.

  • Page 4: Safety And Installation Tips

    PLANNING YOUR LAYOUT: Camera 1 7" LCD DVR Receiver 20mm diameter cable hole TV/Monitor (to allow camera cable and connector to pass through) Front Door Ensure the distance from camera to power Camera 2 outlet does not exceed the length of the camera power adapter cable NOTE: The camera has an open field RF operating range of up to 150m.

  • Page 5: Night Vision

    Camera(s) and DVR Do not attempt to open the units with the power adaptor plug connected to avoid any risk of personal injury. When installing CCTV camera(s), always follow manufacturer's advice when using power tools, steps, ladders, etc. and wear suitable protective equipment (e.g. safety goggles) when drilling holes.

  • Page 6: Kit Contents

    2. KIT CONTENTS YOUR HELPLINE 0844 736 9149 1 x 7" LCD Monitor (Receiver) Trouble Shooting page 9 or call the Customer Helpline available Monday to Friday 9.00 am to 5.00pm. 2 x Digital Wireless Cameras www.friedland.co.uk 3 x 5V/1A Power Adapter for Camera and Receiver 2 x Camera Stands 2 x Fixings Pack 1 x Video Playback PC Software(CD-ROM)
  • Page 7 C C T V AV Cable Manual 2GB Micro SD Memory Digital Wireless Colour Camera Recordable CCTV Kit CWD3 Card and Adaptor Camera Antenna Installation and Operating Instructions YOUR HELPLINE 0844 736 9149 Lines open Monday to Friday 9.00am to 5.00pm. Calls charged at local rates.

  • Page 8: Installation-8

    3. INSTALLATION 3.1 Contents and Connections WIRELESS CAMERA Screw the Camera Antenna clockwise on to the back of the Camera to Wireless Cammera Screw the Camera Bracket TV / MONITOR clockwise on to the lower Camera Power body of the Camera WIRELESS CAMERA Screw the Camera Antenna clockwise on to the back of...

  • Page 9: Powering Up The System

    3.2 Powering up the system Insert the memory card into the DVR if not already fitted Press and Hold power key for one second to power hold the power. Press and hold the power key for two seconds to power off the system. After system power on, adjust the camera viewing position again if necessary.

  • Page 10: Setting The Camera Channel (Optional)

    3.3 Setting the Camera Channel (Optional) The wireless cameras will be supplied preset to channel 1 and channel 2. The wireless monitor supports up to 4 wireless cameras. Follow the step below to set or change the monitor channel of the camera. If you are adding another camera to link with the supplied monitor in this kit, then ensure its channel is set to a different channel to the existing camera(s).

  • Page 11: Camera Installation

    3.5 Camera Installation Attach Stand to Mounting Surface A.Secure camera stand on the wall B. Loosen the thumb screw C.Adjust the camera to the correct viewing position then secure the joint with T-bolt.

  • Page 12: Monitor Panel Introduction-12

    4. MONITOR PANEL INTRODUCTION Display Menu Playback REC Mode Other Link indicator Power indicator 3 Switch Channel Cursor UP Fast Forward VOL Down Cursor Left VOL Down Switch Display CH Menu OK / ENTER PLAY / PAUSE VOL Up Cursor Right VOL Up Switch Display CH 7 Switch Channel Cursor Down...

  • Page 13: System Introduction-13

    5. SYSTEM INTRODUCTION 5.1 Icon Functions (Display Icon) Signal Indicator Channel Indicator Recording Indicator Audio Channel Indicator Display mode QUAD Display Scan Display Single Display Audio Volume (Seven volume levels) = Full Volume = 1/2 Volume = Mute Monitor Power Indicator Power indicator will indicate 100% when adaptor in use or the battery is fully charged.

  • Page 14: System Menu

    5.2 System Menu [Main Menu] Press MENU to enter main menu. After entering [MAIN MENU] system will highlight EVENT LIST by default. System will idle in [MAIN MENU] for 2 minutes before exiting [MAIN MENU]. Use ▲▼◄► to select, Press MENU to confirm selection and to enter sub-menu. CAMERA SETUP Press MENU to CAMERA SETUP Sub Menu RECORDER SETUP...
  • Page 15 EVENT LIST Press MENU to enter EVENT LIST SYSTEM SETUP Press MENU to enter SYSTEM SETUP ALARM BUZZER Press MENU to turn ALARM BUZZER ON / OFF for when motion is detected PAN TILT ZOOM YOUR HELPLINE 0844 736 9149 Trouble Shooting page 9 or call the Customer Helpline available Monday to Friday 9.00 am to 5.00pm.

  • Page 16: System Operation -16

    SCAN ACTIVATED CAMERAS Press MENU to scan activated cameras in full screen mode. MEMORY CARD OVERWRITE Press MENU to set memory card overwrite ON or OFF. 6. System Operation 6.1 Camera Setup Select CAMERA SETUP, press MENU key once to enter sub-menu.
  • Page 17 Use▼▲to select the camera to set up (1-4). Use◄►to select [PAIRING] [BRIGHTNESS] [CAMERA ON/OFF] Camera Pairing With PAIRING section highlighted, press MENU key once to begin camera pairing (pair LED on camera will blink once and following with LED blinking continuously indicating data transmission in process.
  • Page 18 Camera Brightness Adjustment With BRIGHTNESS section highlighted, use ▼▲ to adjust camera brightness. Press ESC to return to main menu. Camera Activation With ACTIVATION section highlighted, use ▼▲ to enable or disable camera. Press ESC to return to main menu. NOTE: Ensure the cameras are paired to the receiver for SCAN or QUAD to function properly (camera "ON"...

  • Page 19: Recorder Setup

    6.2 Recorder Setup Record Schedule Use▲▼◄► to select and press MENU to enter schedule setup.There are three different recording options available to chose from. First highlight the time period and press MENU key to switch between different recording mode. M: MOTION (REC only when motion detected) S: SCHEDULE (record between selected times for each day) C: MANUAL (manual REC) The system will record video from all 4 channels simultaneously with MOTION, SCHEDULE...
  • Page 20 Motion Detection Sensitivity Select RECORDER SETUP, press MENU to enter. Use ▲▼ to select MOTION DETECTION SENSITIVITY section Use ◄► to highlight camera for setup Use ▲▼ to adjust sensitivity level: OFF / LV1 / LV2 / LV3 (LV3 is most sensitive) Press ESC to save and exit Format Memory Card Select RECORDER SETUP, press MENU to enter...

  • Page 21: Event List

    Record Time Select RECORDER SETUP, press MENU to enter. Use ▲▼ to select RECORD TIME section Use ◄► to highlight recording period: 2 Min / 5 Min / 10 MIN, press MENU to confirm Press ESC to save and exit 6.3 Event List Playback Use ◄►...
  • Page 22 (1) Starting / Time: Start Time = PM10:33 End Time = PM10:43 (2) The type of recorded file (Schedule / Motion / Manual) is indicated by: = Channel 1 is SCHEDULE recorded file = Channel 1 is MOTION recorded file =Channel 1, 2, 3 and 4 are MANUAL (C = Continous) recorded files NOTE: The channel indicator 1, 2, 3, 4 in SOLID square indicate the following: - In MOTION (M): channel triggered.

  • Page 23: System Setup

    6.4 System Setup Date and Time Select SYSTEM SETUP, press MENU to enter. Use ▲▼ to highlight DATE AND TIME, press MENU to enter. Use ◄► to highlight adjust: YEAR / MONTH / DATE / HOUR / MINUTE, use ▲▼ to adjust each section and press MENU to confirm adjustment.
  • Page 24 Power Saving (5 Minutes) (10 Minutes) (Always ON) Select SYSTEM SETUP, press MENU to enter. Use ▲▼ to select POWER SAVING Use ◄► to select SCREEN OFF AFTER 5 MINUTES IDLE / SCREEN OFF AFTER 10 MINUTES IDEL / SCREEN ALWAYS ON, press MENU to confirm setting. Press ESC to save and exit.
  • Page 25 (Display QUAD mode) (5 sec Intervals) (10 sec Intervals) (15 sec Intervals) Select SYSTEM SETUP, press MENU to enter. Use ▲▼ to select MULTI CHANNELS IDLE DISPLAY. Use ◄► to select: DISPLAY QUAD DURING IDLE / AT 5 SEC INTERVALS / AT 10 SEC INTERVALS / AT 15 SEC INTERVALS, press MENU to confirm selection.

  • Page 26: Alarm Buzzer

    Default Select SYSTEM SETUP, press MENU to enter. Use ▲▼ to select DEFAULT. Use ◄► to select the system language for SYSTEM RESTORE, press MENU to confirm selection and system will restore to factory default. NOTE: While SYSTEM RESTORE icon highlighted, system firmware version will be displayed (example: VER:11.06.11-21:13:09) 6.5 Alarm Buzzer Select ALARM BUZZER, press MENU to turn buzzer ON or OFF.

  • Page 27: Pan Tilt Zoom

    6.6 Pan Tilt Zoom Select PAN TILT ZOOM, press MENU once to enter ZOOM mode, press MENU again to zoom in (2X). When zooming in, use ▲▼ ◄► to select various view areas. Press MENU to zoom out. In zoom out (1X), use ▲▼to change available channel Press ESC to exit ZOOM.

  • Page 28: Memory Card Overwrite

    6.7 Memory Card Overwrite When the memory is full, by enabling this function will allow you to overwrite the earlist files with the recent ones. Select MEMORY CARD OVERWRITE, press MENU once to activate overwrite function and press MENU again to de-activate. NOTE: (1) One of the following examples will appear on display screen a.

  • Page 29: Pc Playback Software-29

    7.PC PLAYBACK SOFTWARE The Sec24 Media Player is specifically designed to playback recorded files from the Micro SD card provided video files have been recorded by the system. 7.1 Sec24 Media Player Introduction Channel 1 Playback Screen Channel 2 Playback Screen Channel 3 Playback Screen Channel 4 Playback Screen Playback Progress Bar...

  • Page 30: Installation

    7.2 Installation Insert the CD into the CD-ROM of the PC. Click on MY COMPUTER, double click on the drive where the CD-ROM is assigned by the PC (for example: E;\). In this drive you will find the following icon. Please read the following steps to complete installation.
  • Page 31 7.2.2 The following error message will appear if you did not select “Run as administrator” option first before starting the installation. 7.2.3 Double click the icon to start installation process.
  • Page 32 7.2.4 Click “Next” and the following window will appear on the screen. 7.2.5 The following window will appear on the screen after installation is completed. Click “Finish” to complete the installation.

  • Page 33: Playback Recorded File(S)

    7.3 Playback recorded file(s) 7.3.1 Double click the Sec24 Media Player icon on the desktop to start the software YOUR HELPLINE 0844 736 9149 Trouble Shooting page 9 or call the Customer Helpline available Monday to Friday 9.00 am to 5.00pm. www.friedland.co.uk...
  • Page 34 7.3.2 Click on “Load” to import and playback previous recorded files (SNX files) already stored on your PC. NOTE: You will first need to save the files from the Micro SD card to the PC first. If your PC has a memory card reader then use the supplied memory card adaptor.

  • Page 35: Channel Disable / Enable Select

    7.4 Channel Disable / Enable Select During playback, all four channels will playback at once. For privacy concern, user is able to manually disable audio channel and/or video channel(s). Select Audio to turn off sound • Select 1 to turn off video image from channel 1 •...

  • Page 36: System Configuration

    8. System Configuration Channel 1 Activation Channel 2 Camera Setup Brightness Channel 3 Pairing Channel 4 Schedule Cam1 Cam2 Cam3 Cam4 Motion sensitivity SD Card Format Recorder Setup Cam1 Cam2 Cam3 Cam4 Motion Area 2 minute 5 minutes 10 minutes Record Time Event List Play Mode...

  • Page 37: Product Specification

    9.Product Specification Camera Receiver Maximum Channels Communication Range 150 metres in open space Monitor Resolution 800X480 Camera Resolution 640X480 Operating Temperature -10°C ~ 50°C Operating Voltage DC 5V / 1A Curren Consumption 550mA(max) 860mA(max) Night Vision 5-8m Dimension 123x65x65 mm 200x122x25 mm Battery 3.7V 1800mAH (LI-ON)
  • Page 38 Disposal and Recycling (Directive 2002/96/EC) The product is classified by the Waste Electrical or Electronic Equipment (WEEE) Directive. It should not be disposed of with other household or other commercial waste. At the end of its useful life the packaging and product should be disposed of via a suitable recycling centre. For information on available facilities, please contact your local authority or retailer from where the product was purchased.
