Printer Overview

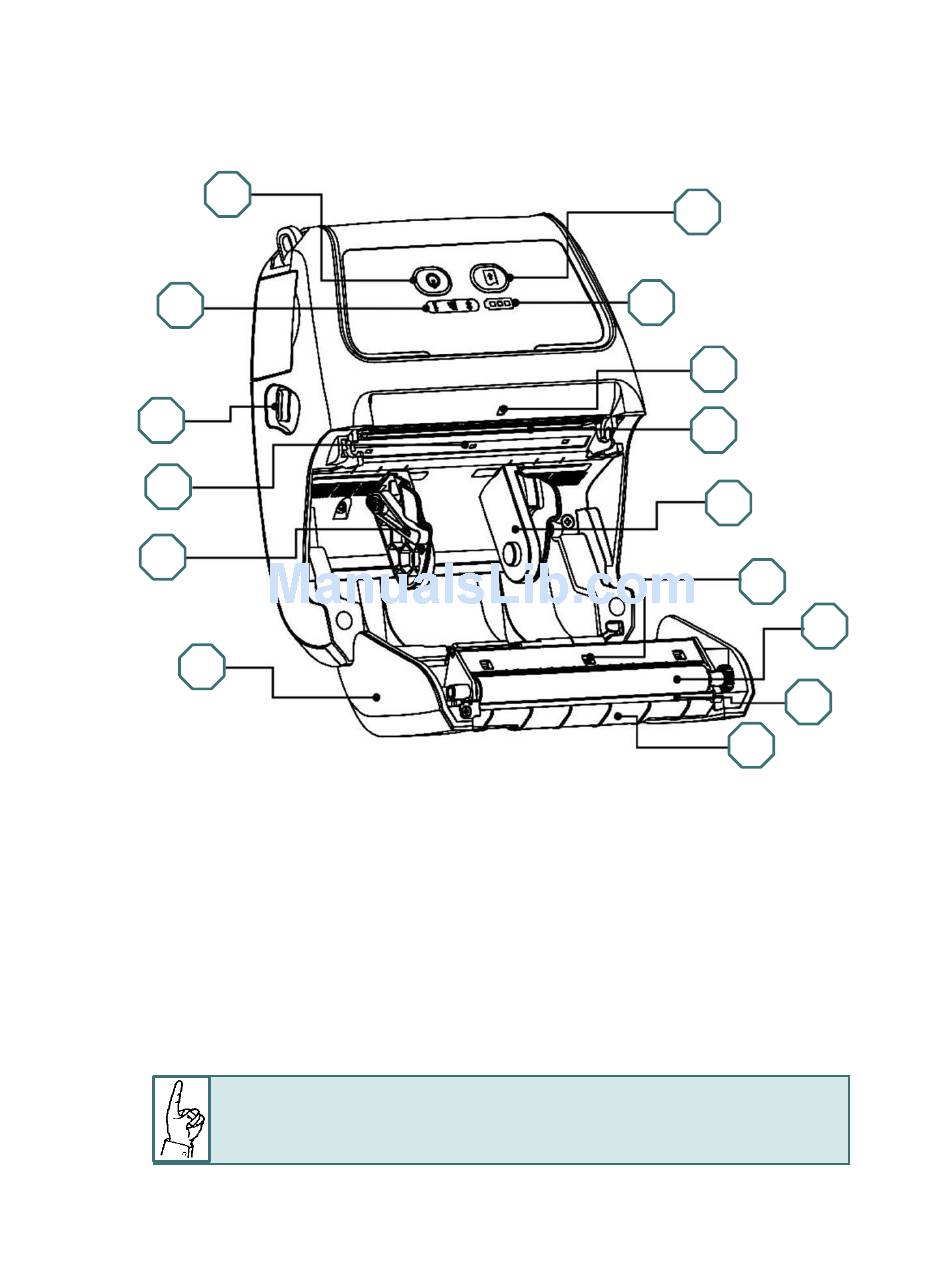

Front view

1
3
5
8
9
11
1. Power on/off button
3. Printer status LED indicator
5. Media cover release button
7. Print head
9. Media holder lock switch
11. Media cover
13. Platen roller
15. Peeler module
*The media sensor position (#12) is selectable by factory
adjustment (L/C/R). Default is the center
2. Feed button
4. Battery status LED indicator
6. Peel-off sensor
8. Transmissive Gap sensor
10. Media holder
12. Reflective Black Mark sensor
14. Tear/Peeler bar
~ 11 ~
2
4
6
7
10
12
13
14
15
position.
