CONNECTION AND MAINTENANCE

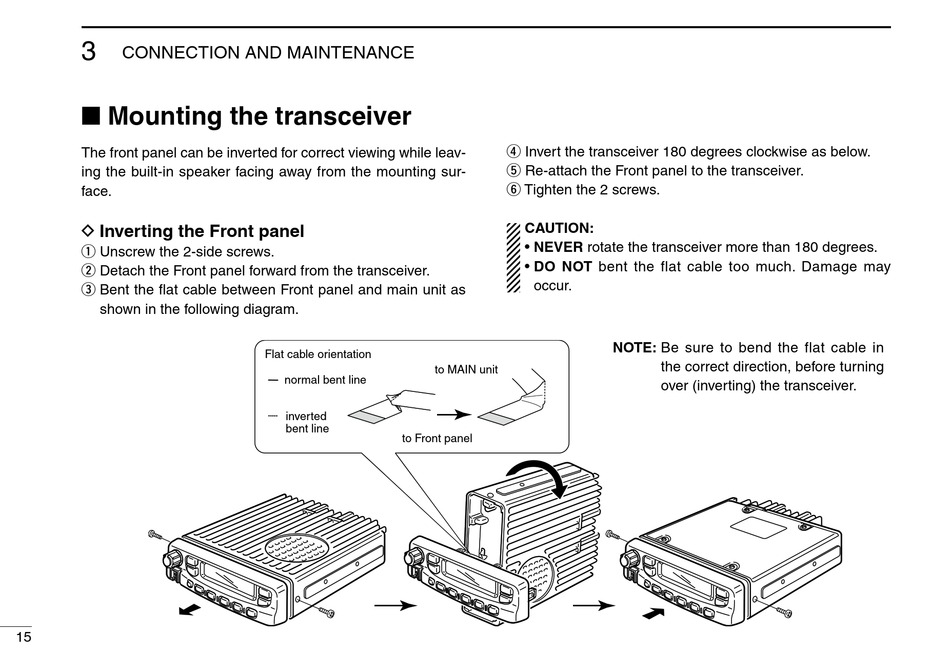

n Mounting the transceiver
The front panel can be inverted for correct viewing while leav-
ing the built-in speaker facing away from the mounting sur-
face.
D Inverting the Front panel
q Unscrew the 2-side screws.
w Detach the Front panel forward from the transceiver.
e Bent the flat cable between Front panel and main unit as
shown in the following diagram.
15
Flat cable orientation
to MAIN unit
normal bent line
inverted
bent line
to Front panel
r Invert the transceiver 180 degrees clockwise as below.
t Re-attach the Front panel to the transceiver.
y Tighten the 2 screws.
CAUTION:
• NEVER rotate the transceiver more than 180 degrees.
• DO NOT bent the flat cable too much. Damage may
occur.
NOTE: Be sure to bend the flat cable in
the correct direction, before turning
over (inverting) the transceiver.
