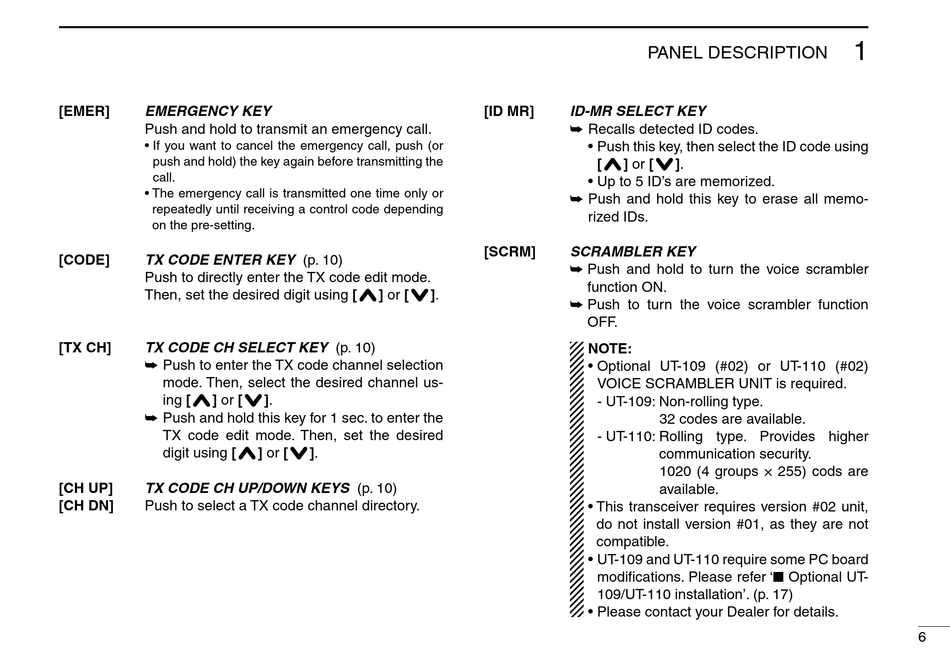

Icom IC-F510 Instruction Manual page 9

[EMER] EMERGENCY KEY
Push and hold to transmit an emergency call.
• If you want to cancel the emergency call, push (or
push and hold) the key again before transmitting the
call.
• The emergency call is transmitted one time only or
repeatedly until receiving a control code depending
on the pre-setting.
[CODE] TX CODE ENTER KEY (p. 10)
Push to directly enter the TX code edit mode.
Then, set the desired digit using [
[TX CH] TX CODE CH SELECT KEY (p. 10)
➥ Push to enter the TX code channel selection
mode. Then, select the desired channel us-
ing [ ] or [
➥ Push and hold this key for 1 sec. to enter the
TX code edit mode. Then, set the desired
digit using [
[CH UP] TX CODE CH UP/DOWN KEYS (p. 10)
[CH DN]
Push to select a TX code channel directory.
] or [ ].
].
] or [ ].
PANEL DESCRIPTION
[ID MR] ID-MR SELECT KEY
➥ Recalls detected ID codes.
• Push this key, then select the ID code using
[ ] or [
• Up to 5 ID's are memorized.
➥ Push and hold this key to erase all memo-
rized IDs.
[SCRM] SCRAMBLER KEY
➥ Push and hold to turn the voice scrambler
function ON.
➥ Push to turn the voice scrambler function
OFF.
NOTE:
• Optional UT-109 (#02) or UT-110 (#02)
VOICE SCRAMBLER UNIT is required.
- UT-109: Non-rolling type.
32 codes are available.
- UT-110: Rolling type. Provides higher
communication security.
1020 (4 groups × 255) cods are
available.
• This transceiver requires version #02 unit,
do not install version #01, as they are not
compatible.
• UT-109 and UT-110 require some PC board
modifications. Please refer 'n Optional UT-
109/UT-110 installation'. (p. 17)
• Please contact your Dealer for details.
