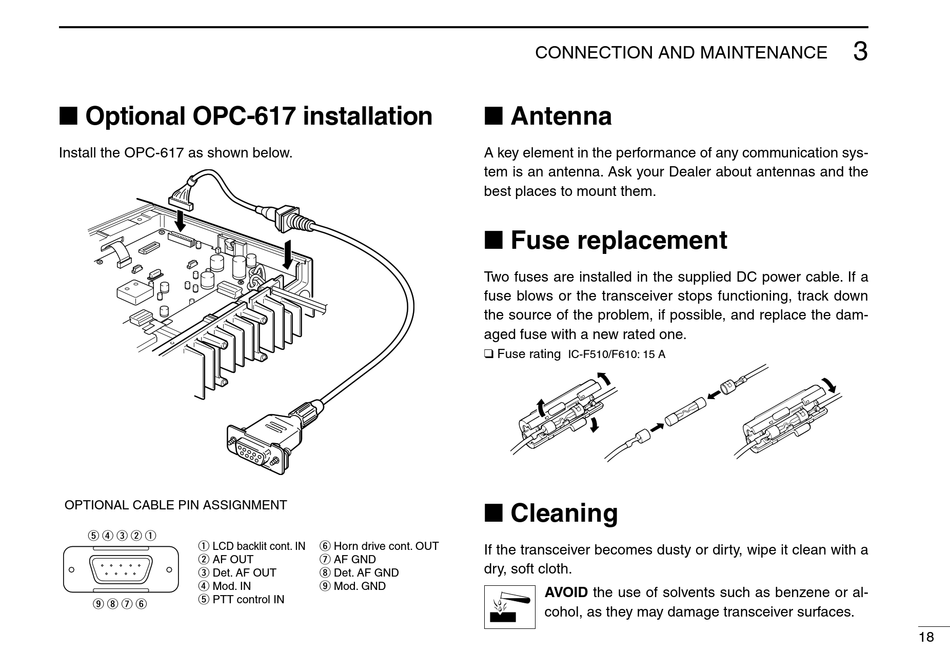

n Optional OPC-617 installation
Install the OPC-617 as shown below.
OPTIONAL CABLE PIN ASSIGNMENT
t r e w q
q LCD backlit cont. IN
w AF OUT
e Det. AF OUT
r Mod. IN
t PTT control IN
o i u y
n Antenna
A key element in the performance of any communication sys-
tem is an antenna. Ask your Dealer about antennas and the
best places to mount them.
n Fuse replacement
Two fuses are installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem, if possible, and replace the dam-
aged fuse with a new rated one.
q Fuse rating
n Cleaning
y Horn drive cont. OUT
If the transceiver becomes dusty or dirty, wipe it clean with a
u AF GND
dry, soft cloth.
i Det. AF GND
o Mod. GND
CONNECTION AND MAINTENANCE
IC-F510/F610: 15 A
AVOID the use of solvents such as benzene or al-
cohol, as they may damage transceiver surfaces.
