1

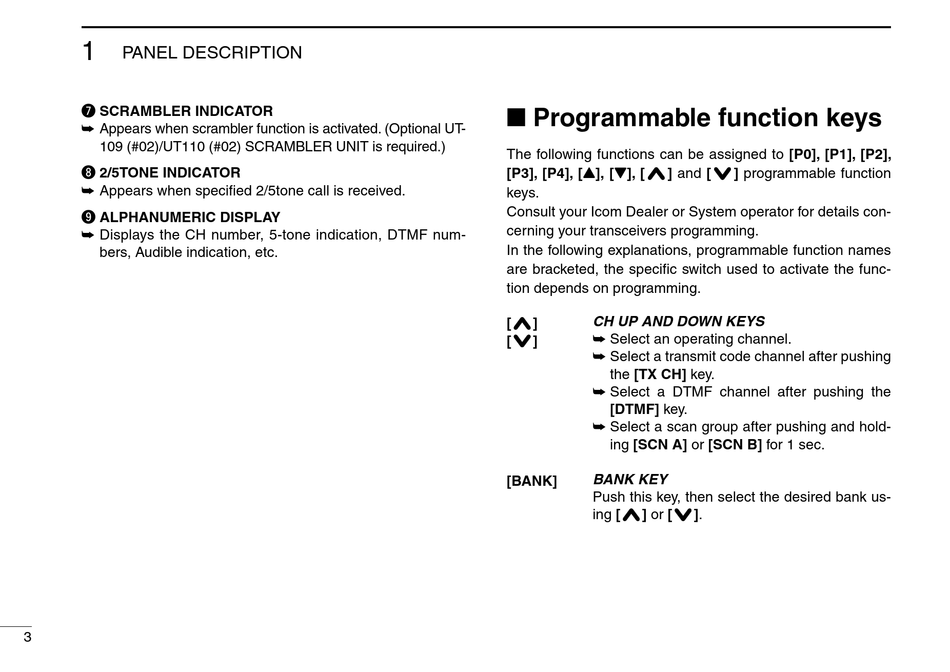

PANEL DESCRIPTION
u SCRAMBLER INDICATOR
➥ Appears when scrambler function is activated. (Optional UT-
109 (#02)/UT110 (#02) SCRAMBLER UNIT is required.)
i 2/5TONE INDICATOR
➥ Appears when specified 2/5tone call is received.
o ALPHANUMERIC DISPLAY
➥ Displays the CH number, 5-tone indication, DTMF num-
bers, Audible indication, etc.
3
n Programmable function keys
The following functions can be assigned to [P0], [P1], [P2],
[P3], [P4], [Y], [Z], [ ] and [
keys.
Consult your Icom Dealer or System operator for details con-
cerning your transceivers programming.
In the following explanations, programmable function names
are bracketed, the specific switch used to activate the func-
tion depends on programming.
CH UP AND DOWN KEYS
[ ]
➥ Select an operating channel.
[ ]
➥ Select a transmit code channel after pushing
the [TX CH] key.
➥ Select a DTMF channel after pushing the
[DTMF] key.
➥ Select a scan group after pushing and hold-
ing [SCN A] or [SCN B] for 1 sec.
BANK KEY
[BANK]
Push this key, then select the desired bank us-
ing [ ] or [
] programmable function
].
