2

PANEL DESCRIPTION

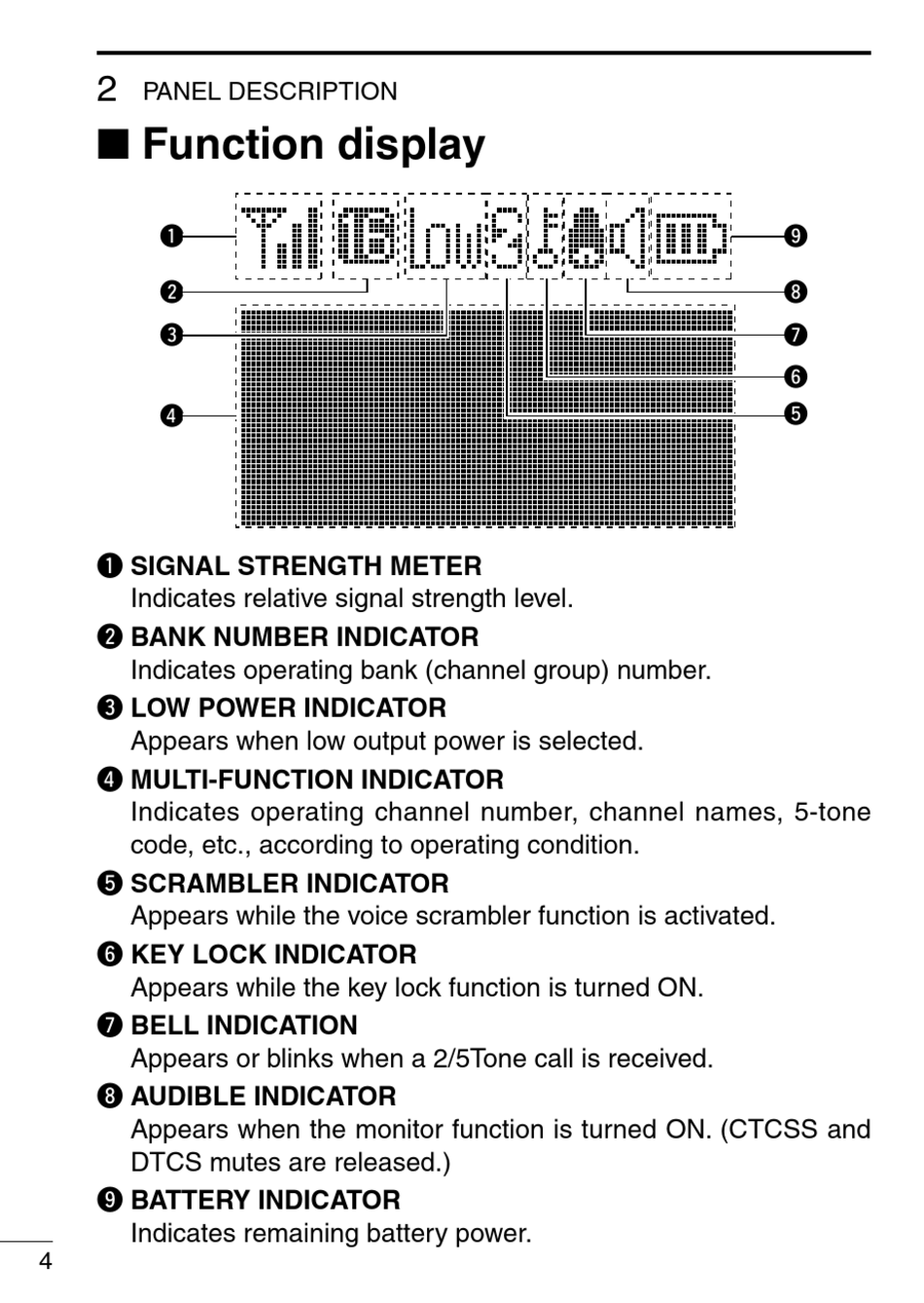

n Function display
q
w
e
r
q SIGNAL STRENGTH METER
Indicates relative signal strength level.
w BANK NUMBER INDICATOR
Indicates operating bank (channel group) number.
e LOW POWER INDICATOR
Appears when low output power is selected.
r MULTI-FUNCTION INDICATOR
Indicates operating channel number, channel names, 5-tone
code, etc., according to operating condition.
t SCRAMBLER INDICATOR
Appears while the voice scrambler function is activated.
y KEY LOCK INDICATOR
Appears while the key lock function is turned ON.
u BELL INDICATION
Appears or blinks when a 2/5Tone call is received.
i AUDIBLE INDICATOR
Appears when the monitor function is turned ON. (CTCSS and
DTCS mutes are released.)
o BATTERY INDICATOR
Indicates remaining battery power.
4
o
i
u
y
t
