Installation Overview

To install and set up the VSC 75, follow these basic steps:
Turn all of the equipment off. Make sure that the
1
source computer, the VSC 75, and the output devices
(projector, monitors) are turned off and disconnected
from the power source.
Mount the scan converter. See "Mounting the
2
VSC 75" on page 2-2.
Set the rear panel toggle and DIP switches. See "Rear
3
Panel Features" on page 2-6.
Attach the cables. See "Cabling" on page 2-7 and
4
"Rear Panel Features" on page 2-6.
Connect power cords and turn on all the equipment.
5
The image should now appear. If not, ensure that all
6
devices are plugged in and receiving power. Check
the cabling and rear panel switches, and make
adjustments as needed. Refer to "Troubleshooting"
on page 2-11 if needed.
Optimize the image for your display environment.
7
See "Optimizing the Image" on page 2-10.

Mounting the VSC 75

Select tabletop placement or rack mounting. Follow the
appropriate installation instructions on these two pages.

Tabletop/desktop placement

For tabletop or desktop placement only, install the self-
adhesive rubber feet/pads (provided) onto the four corners
of the bottom of the enclosure.

Rack mounting

1.
If feet were installed on the bottom of the VSC 75,
remove them.
2.
Place the VSC 75 on one half of the 1U (one unit high,
one unit wide) rack shelf (part #60-190-01). Align the
front of the VSC 75 with the front of the shelf, and
align the threaded holes on the bottom of the VSC 75
with the holes in the rack shelf.
3.
Attach the VSC 75 to the rack shelf with the two
provided 4-40 x 1/8" machine screws. Insert the
VSC 75 Installation and Operation
2-2
screws from the underside of the shelf, and securely
fasten them into diagonally-opposite corners as
shown in figure 2.
False front panel
uses 2 front holes
FR
EE
FL
ZE
FI LT
IC
KE
R
TE
ER
ST
I
II
CE
NT
ER
IN G/
PA
N SI
ZE
SI ZE
MI
N/
MA
X
SC
V S
AN
C
CO
75
NV
ER
TE
R
Use 2 mounting holes on
opposite corners

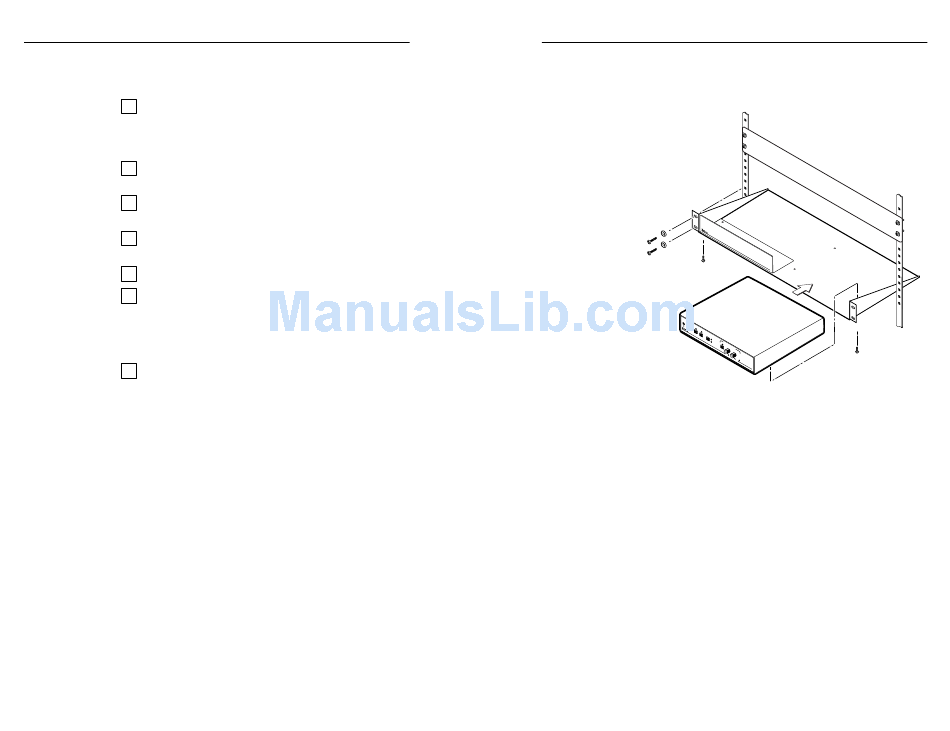

Figure 2 — Rack mounting
4.
Attach the false front panel (provided with the rack
shelf) to the unoccupied side of the rack (as shown
above), or install a second half-rack-width device in
that side by repeating steps 1 – 3.
Attach the rack shelf to the rack using four 10-32 x ¾"
5.
bolts (provided). Insert the bolts through #10 beveled
washers, then through the holes in the rack ears and
rack, as shown above.
VSC 75 Installation and Operation
(2) 4-40 x 1/8" Screws
2-3
