(b) To connect to the ADSL line and a Telephone Set
The POTS Splitter (with built-in Micro-Filter) is a device that allows you to connect
both your ADSL Router and Telephone Set to the same Telephone Wall Socket. This
device will help to eliminate background noise on the telephone line, ensuring the
best possible phone performance. (When purchasing POTS Splitter from your
dealer, ensure that it has a built-in Micro-Filter).
If you have Telephone set(s)/Facsimile
machine connected to other Telephone
Wall Socket(s), you will need to plug
in a Micro-Filter to each of the
Telephone Wall Socket before
connecting to the Telephone set as
illustrated.
Micro-Filter helps to eliminate noise
on the telephone line when your ADSL
Router and Telephone set are both
sharing the same line.
(Micro-Filter can be purchased from
your dealer).
6

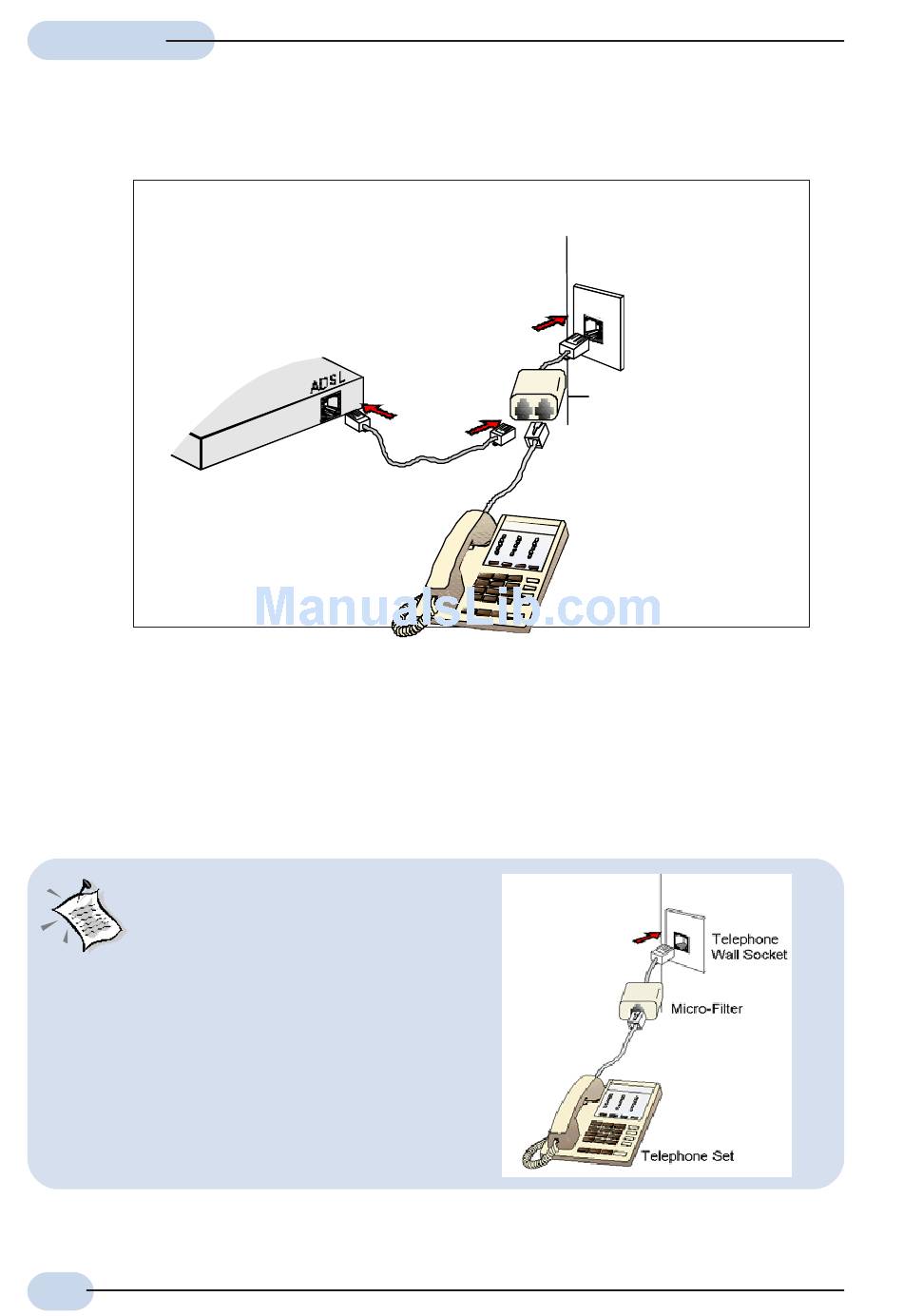

Back view of the
ADSL Router
Telephone cable
Telephone Wall
Socket
POTS Splitter
Connect the Telephone set to the
jack labelled TEL or PHONE and
the telephone cable to the jack
labelled LINE.
Telephone Set
