Hardware Kit (Not To Scale) - Precor Discovery Plate Loaded Line Assembly Manual

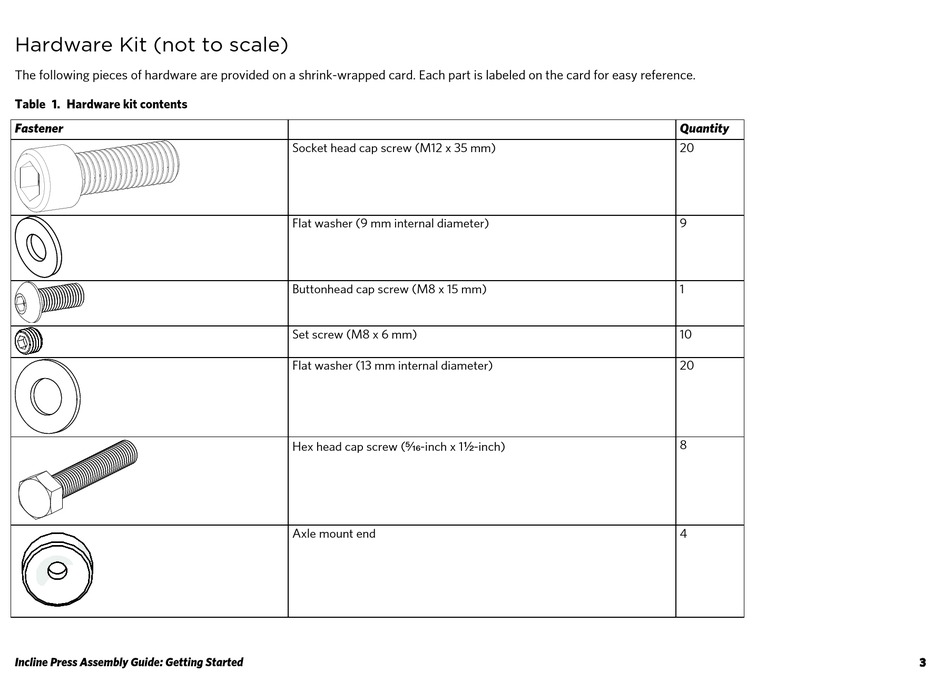

Hardware Kit (not to scale)

The following pieces of hardware are provided on a shrink-wrapped card. Each part is labeled on the card for easy reference.
Table 1. Hardware kit contents
Fastener
Incline Press Assembly Guide: Getting Started
Socket head cap screw (M12 x 35 mm)
Flat washer (9 mm internal diameter)
Buttonhead cap screw (M8 x 15 mm)
Set screw (M8 x 6 mm)
Flat washer (13 mm internal diameter)
Hex head cap screw (⁵₁₆-inch x 1¹₂-inch)
Axle mount end
Quantity
20
9
1
10
20
8
4
3
