Attaching the Side Uprights to the

Base Frame

Perform the following procedure to attach both side uprights to the base

frame.

To attach the side uprights to the base frame:

1. Position the left side upright on the base frame so that the screw holes on

the base frame and the upright line up.

Note: Ask that your assistant hold the side uprights while you secure them

into position.

Incline Press Assembly Guide: Assembling the Equipment

2. Add one M12 x 35mm socket head cap screw and one 13mm flat washer to

each of the screw holes. Finger tighten the fasteners.

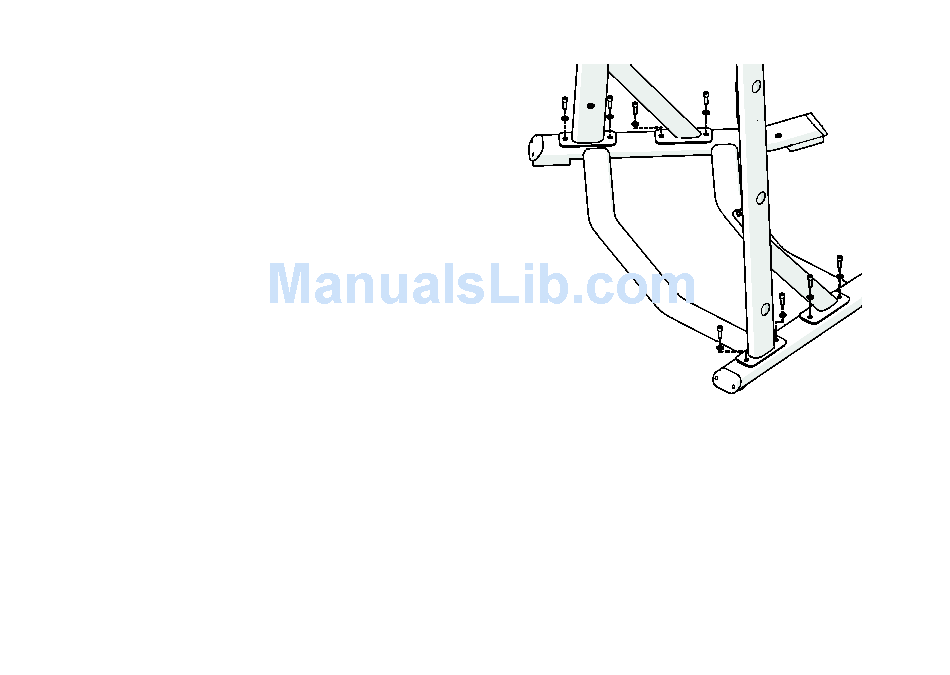

Figure 4: Side upright attachment

3. Repeat steps 1 and 2 to attach the right side upright.
