Installing the Crossbar

Before beginning this procedure, obtain two weight storage horns. The upper
screw and washer used to attach the crossbar to each side upright also attach
a weight storage horn to the side upright.
Note: Have your assistant hold the crossbar in place while you perform this
procedure.
To attach the crossbar to the side uprights:
1. Position the crossbar between the side uprights so that the curve of the
crossbar extends backward and the screw holes at either end line up with
the screw holes on the side uprights.
2. Place a 13 mm flat washer over a M12 x 35 mm socket head cap screw.
Insert the screw into the lower screw hole at one end of the crossbar and
tighten it partially.
3. Insert a weight storage horn into the socket opposite the upper screw hole.
4. Insert a M8 x 6mm set screw into the small hole in the socket. Position the
weight storage horn, then tighten the set screw completely.
Incline Press Assembly Guide: Assembling the Equipment
5. Place a 13 mm flat washer over a M12 x 35 mm socket head cap screw.
Insert the screw through the upper screw hole and into the weight storage
horn, then tighten the screw partially.
6. Repeat steps 2 through 5 to attach the crossbar and an additional weight
storage horn on the other side of the frame.

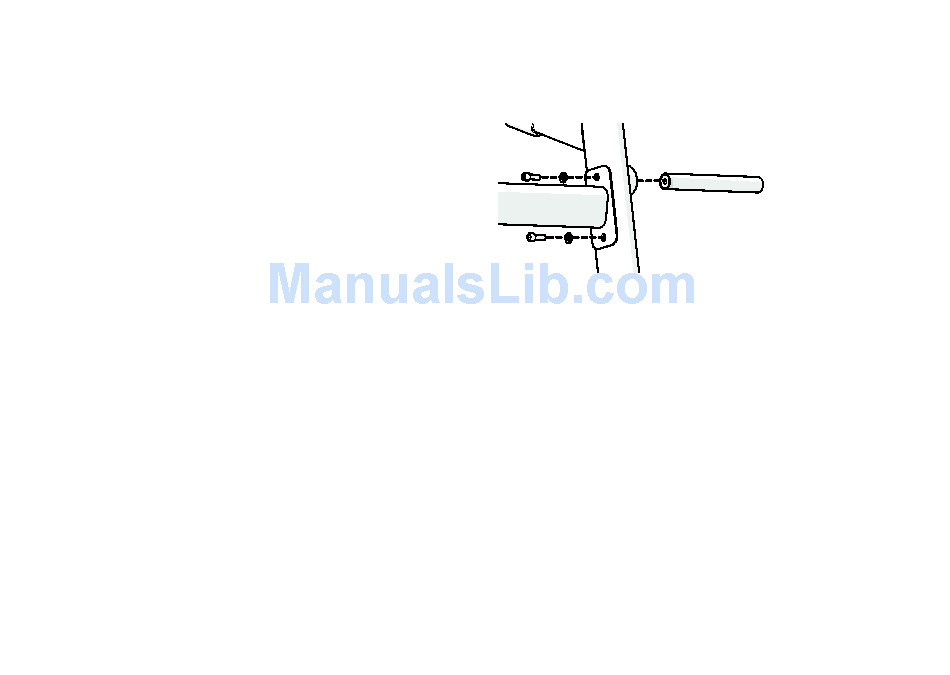

Figure 5: Crossbar attachment
