Chapter 1
Touch-Screen Display
The ICE 5700 terminal is built around a graphic touch-screen that provides a high degree of flexibility
and an intuitive user environment. Additionally, the graphics screen can deliver advertising and other
promotional messages directly to the consumer.
The easy-to-operate nature of the touch-screen reduces the need for cashier training. It allows trouble-
free operation by consumers in the PIN pad and signature capture pad modes. It also allows the support
of complex new applications such as loyalty, which on a traditional terminal requires many keystrokes
and long transaction entry times.
For operation in dimly lit environments such as restaurants, the screen is equipped with a backlight.
The standard configuration for the ICE 5700 terminal includes a 1.7 inch by 2.7 inch graphic dot matrix
touch screen that is capable of character, graphics, and signature display. While in character mode, the
display resolution is 160 pixels by 80 pixels. The character display has 10 lines with 26 characters for
each line. Graphic keys displayed on the screen initiate most functions.
N
:
This display is configurable.
OTE
Magnetic Stripe Read Card Reader
The ICE 5700 magnetic stripe read (MSR) card reader uses Track 1 and 2. Track 3 is optional.
Check Reader
The ICE 5700 motorized check reader magnetically reads the MICR line at the bottom of checks. The
terminal supports dial-up to multiple check processors to perform check verification against negative
files or check guarantee by obtaining positive online authorization.
1-4

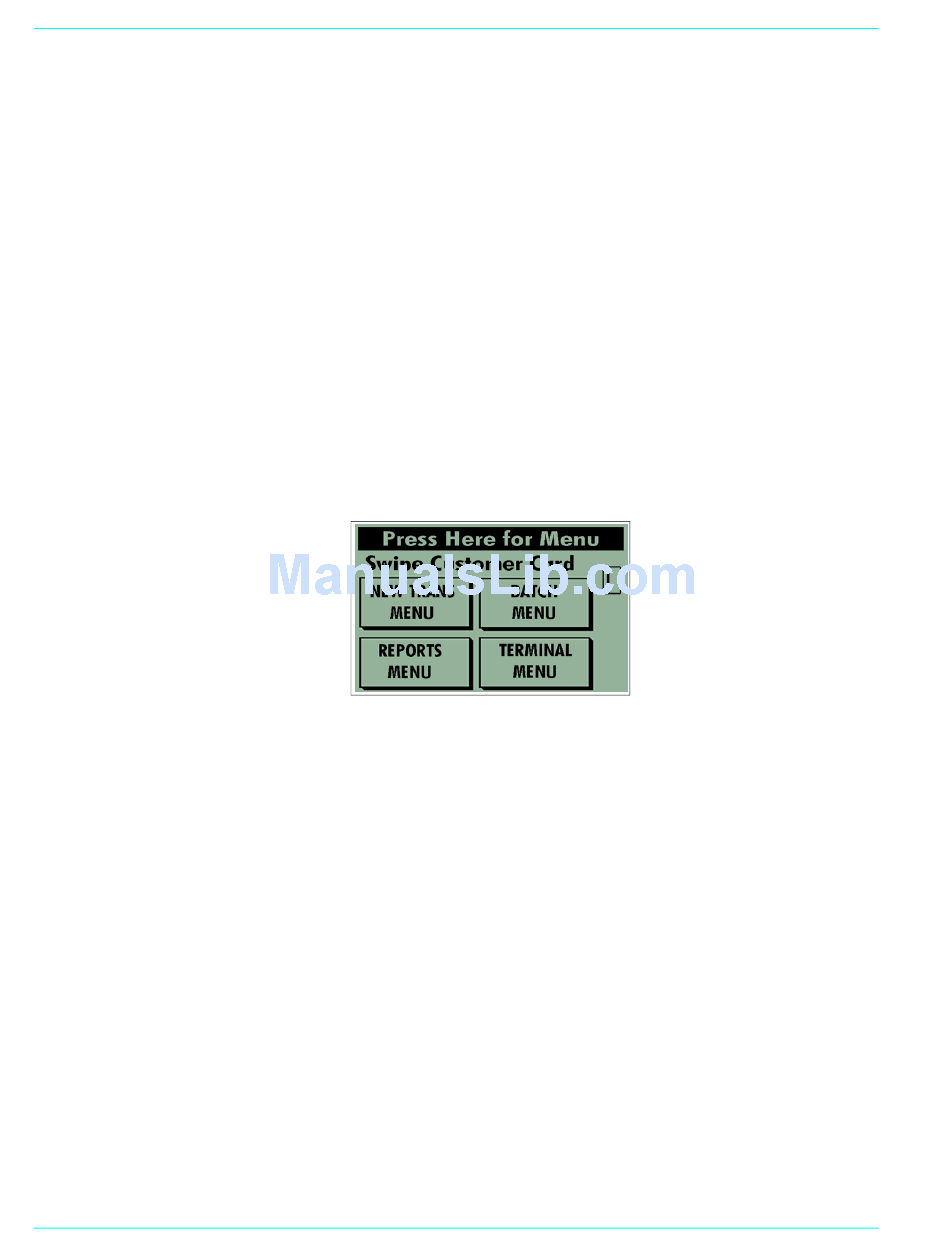

Figure 1-3. Touch-screen display
ICE 5700 Hardware and Installation Operators Manual
940310-001, rev. A
