Chapter 4
3. Insert the male connector on the 12-foot cable from the terminal transceiver into the female
connector on the single-unit adapter cable.
If the 12-foot cable is not long enough, it may be extended up to 100 feet by using any
six-conductor, one-to-one standard telephone extender cable available at various electronic
appliance retail outlets. The cable may be extended up to 1000 feet by substituting a terminal
transceiver interface for the single unit adapter cable.
W
ARNING
To avoid damaging the terminal transceiver unit, do not insert the cable connectors from the single unit
adapter or the terminal transceiver into any receptacle designated for use with the premises telephone
system.

Extending Basic Coverage Area

If the basic system does not cover enough space or major gaps exist in the coverage, you can extend
the area covered. The example in Figure 4-2 shows how to extend coverage or fill in gaps by adding a
terminal transceiver interface and an additional terminal transceiver.
4-4

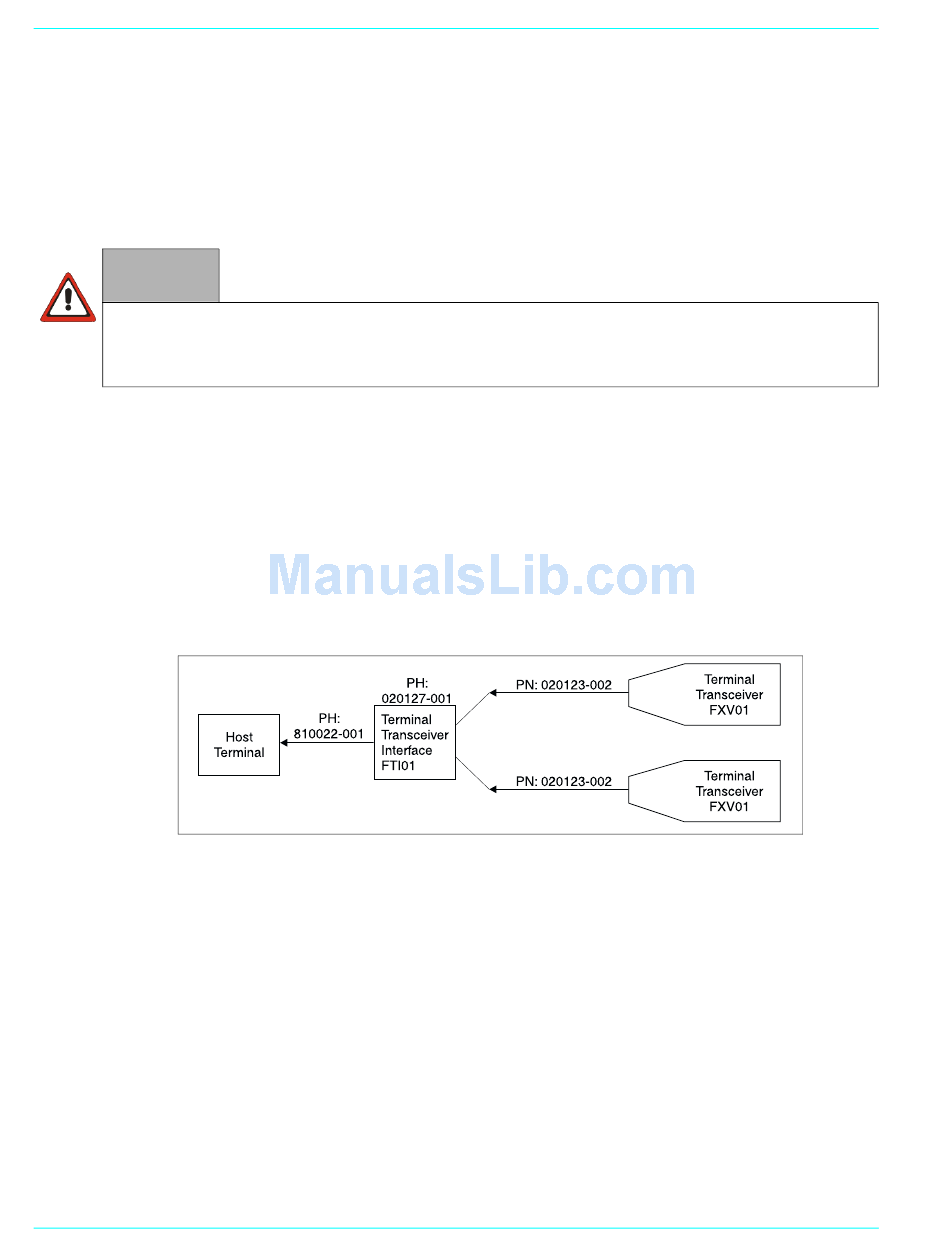

Figure 4-2. Extending basic coverage

ICE 5700 Hardware and Installation Operators Manual 940310-001, rev. A
