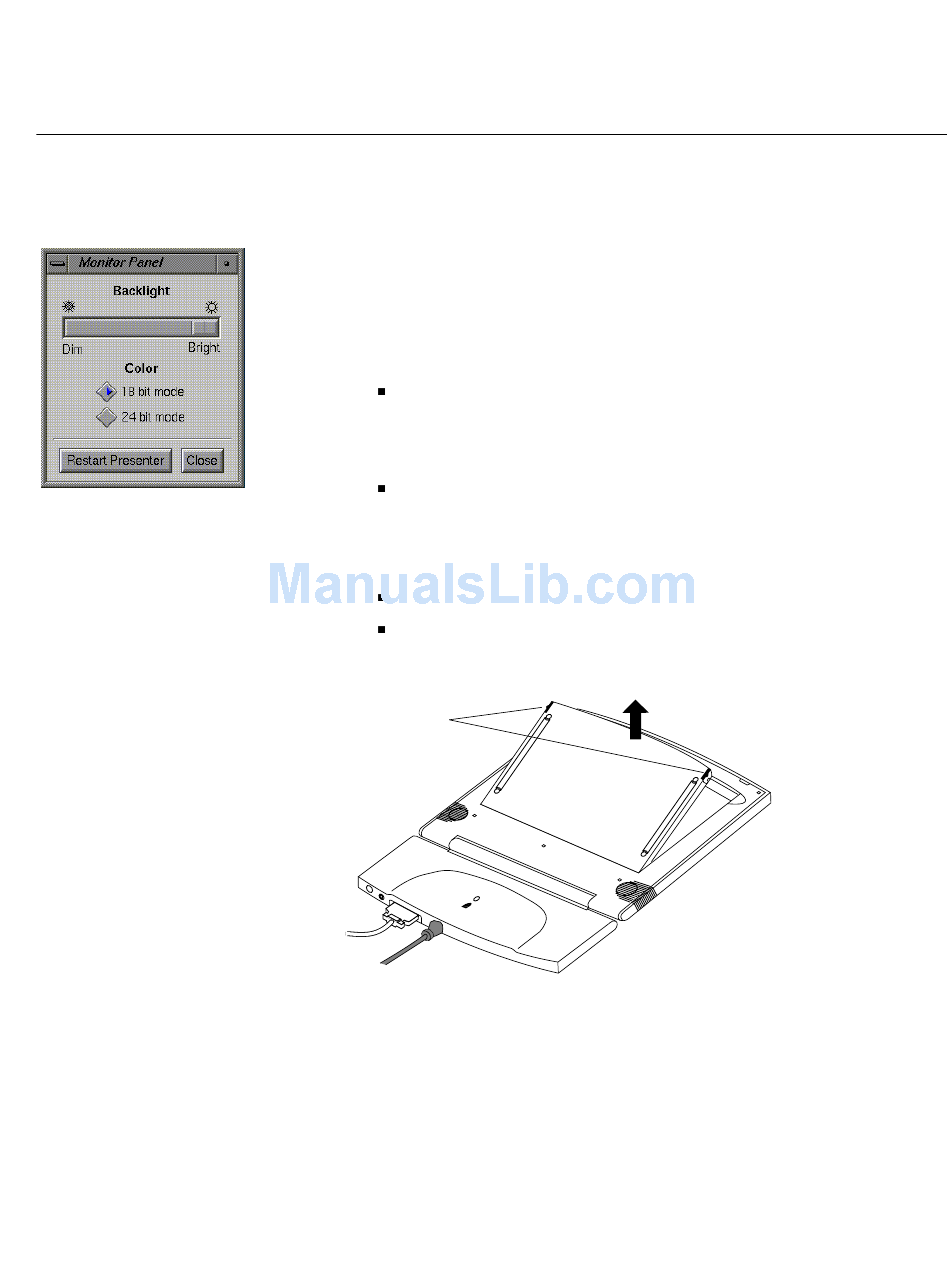

Figure 1-9 Monitor Panel
Setting Up Presenter 1280 on the Dukane Overhead Projector
7. If the power cable and interface cable are not already attached to
Presenter 1280 and to your workstation, connect them now. (See
"Connecting the External Cables" on page 4 if necessary.)
It's all right to move Presenter 1280 once the cables are attached, but do
not extend the cables so much that you stress or loosen the connection.
8. If Presenter 1280 is not already on, turn it on or restart it in one of the
following ways:
If you have a CRT monitor attached, open the Monitor Panel. From
the Find menu in the Toolchest, choose "Control Panels," and
double-click the monpanel icon. The Monitor Panel shown in
Figure 1-9 appears. Click the Turn On or Restart Presenter button.
If you have no CRT monitor attached and Presenter 1280 has been
on since the system was booted, press the Sleep button to turn on
Presenter 1280.
9. Remove the backlight panel:
Place Presenter 1280 face down on a flat surface.
Press in the latches on either side of the panel, tilt it up and remove
it. This automatically turns off the backlight. See Figure 1-10.
Latches

Figure 1-10 Removing the Backlight Panel

13
