CDM-600 Satellite Modem
Clock Modes and Drop and Insert (D&I)
MODEM
DDI
DDO
Terrestrial Trunk

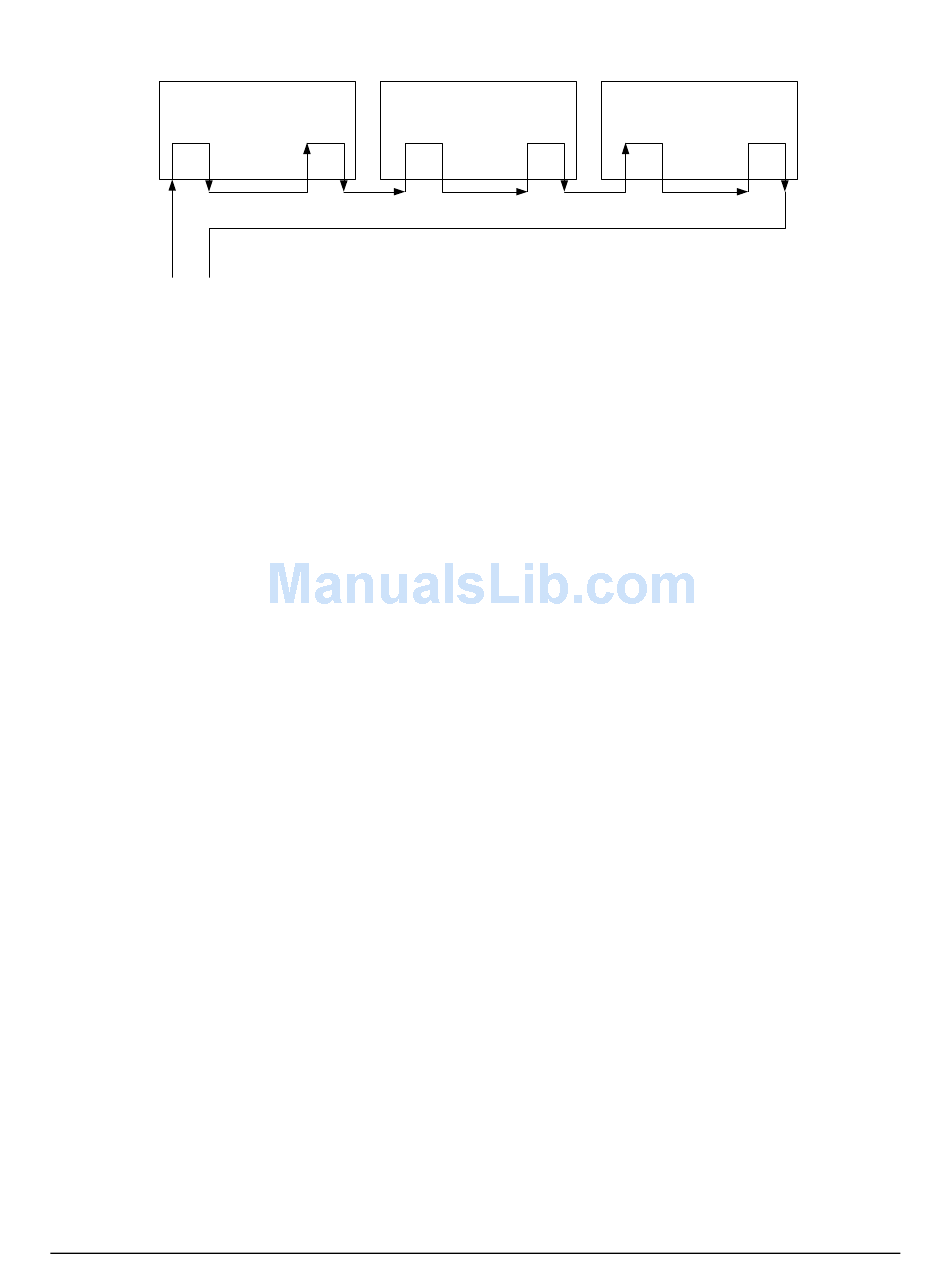

Figure 10-6. Single-Source Multiple Modems (Daisy Chain)
MODEM
IDI
IDI
IDO
Multiple Modem Drop & Insert Application: This application shows how the loop is extended
to one or more additional modems.
DDO- IDI connection may be made internally using Loop = Y under D&I menu.
10–11
Revision 7
MN/CDM600.IOM
