4.0 Installation

The Micro Plus ticket printer is designed to be mounted on a desktop or on a shelf. The
Micro Plus is available with an optional mounting plate for installation within a counter.
However, prior to site preparation and installation, the printer should be powered up
and run in the self test mode. Lay the printer flat on a counter as shown in figure 3
with the cover removed. Verify that voltage selector is properly set for your line voltage
(110/220v) as shown in figure 5. Attach the AC cord and interface
the proper connectors as shown in figure 4. Turn power on (figure 4). The LCD will
display PAPER OUT. Begin loading tickets through the entrance slot (figure 5) with a
smooth motion until the printer automatically positions the ticket.
NOTE: Tickets should be loaded with the black mark facing down. Two typical ticket
formats and feed directions are shown below (figure 6).
2
Black Mark on
Underside of
Ticket
3.25
After the ticket is automatically positioned (the READY LED will be illuminated), press
the TEST button located on the control panel (figure 2) to print a test ticket. Verify that
the printer properly works with your system by issuing a ticket through your computer
system.
You may now install the printer in the desired location or prepare for in-counter installa-
tion using the instructions shown in appendix B. Adequate room should be provided
beneath the printer for cables and ventilation.
1.975
FEED DIRECTION
5.5
Black Mark on
Underside of
Ticket

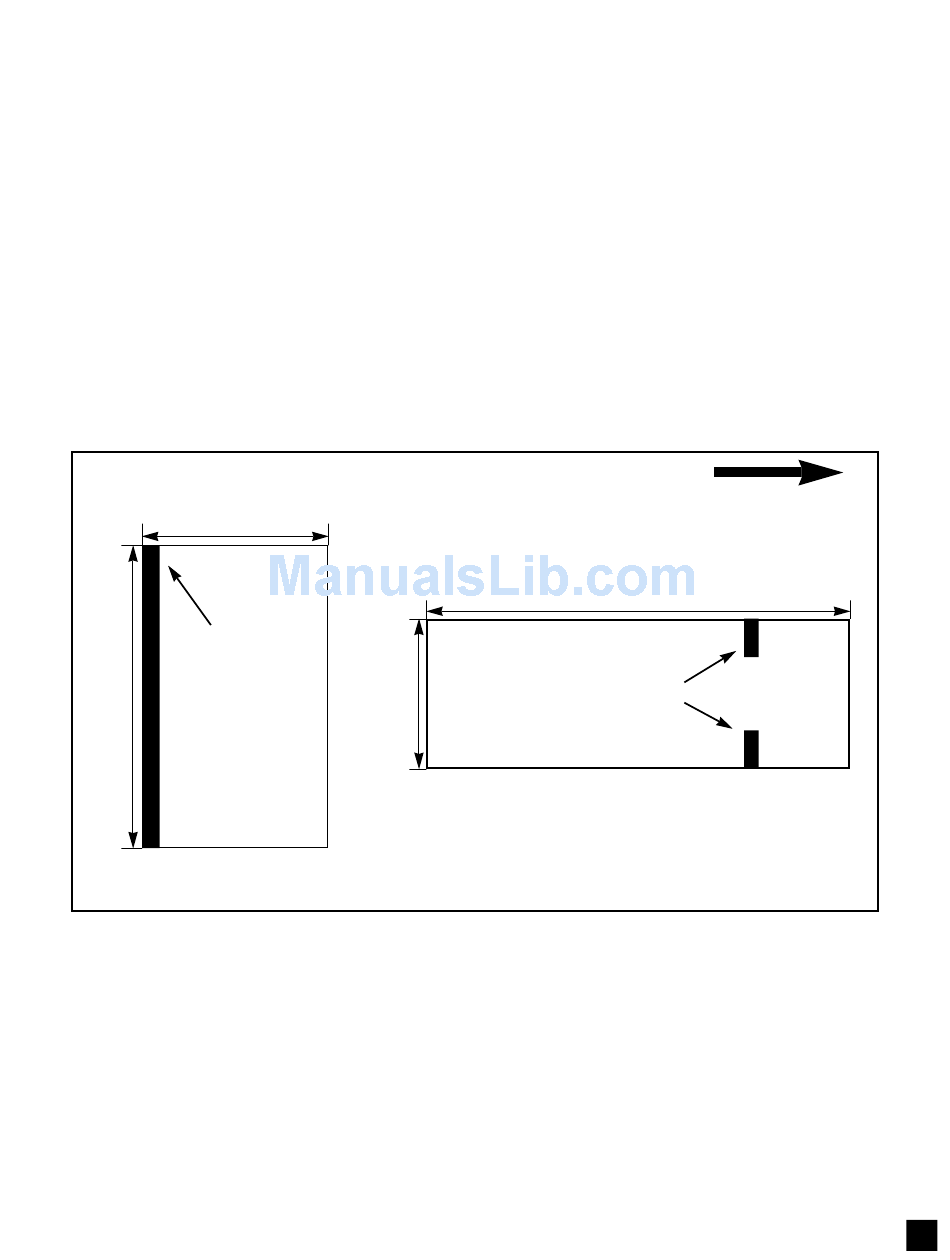

Figure 6 - Ticket feed direction
connector into
5
