Connecting the Modem to Your System
Turn off your computer.
1.
Connect the modem to your PC:
2.
a.
Plug one end of the serial cable into the modem's RS-232 connector.
b.
Plug the other end into your PC's serial port connector (COM1 or COM2).
Connect the modem to the telephone line (dialup connection):
3.
a.
Plug one end of the phone cable into the modem's LINE jack.
b.
Plug the other end into a public switched telephone network (PSTN) wall jack.
Important:
The LINE jack and PHONE jack are not interchangeable. Do not plug the phone into the LINE
jack and do not plug the leased line cable into the PHONE jack.
Note:
Regulatory agencies may impose certain restrictions on equipment connected to public
telephone systems.
Connect two- or four-wire leased line
4.
a.
Plug one end of a two- or four-wire phone cable into the modem's LEASED jack.
b.
Connect the other end to a leased line wall jack or terminals.
Note:
Modems with the leased line feature support dial backup.
Multi-Tech Systems, Inc. MT5600BA-V92 User Guide
Chapter 2 - Installation

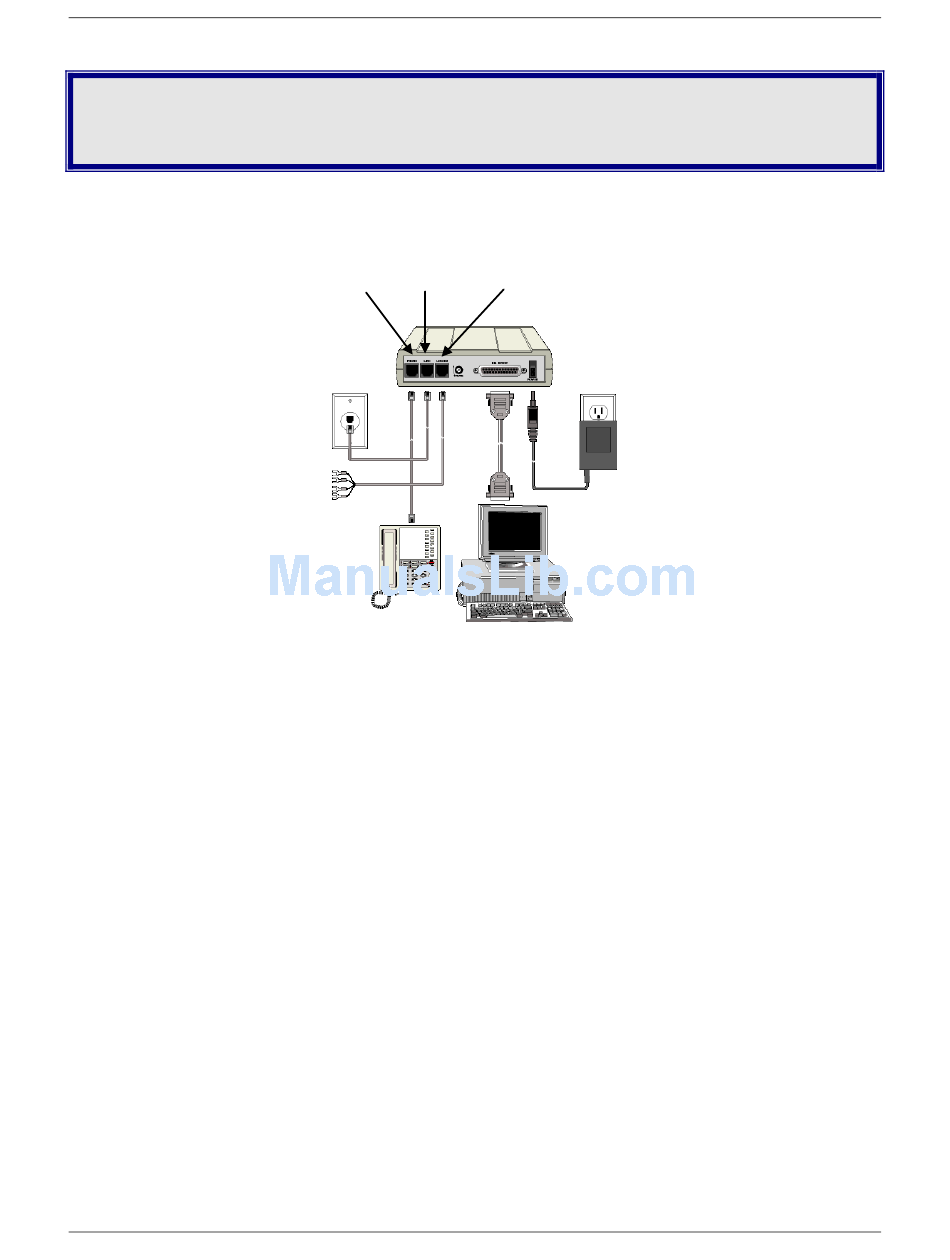

PHONE LINE LEASED
MultiModem II Connections
Chapter 3 – Using the Front Panel
9
