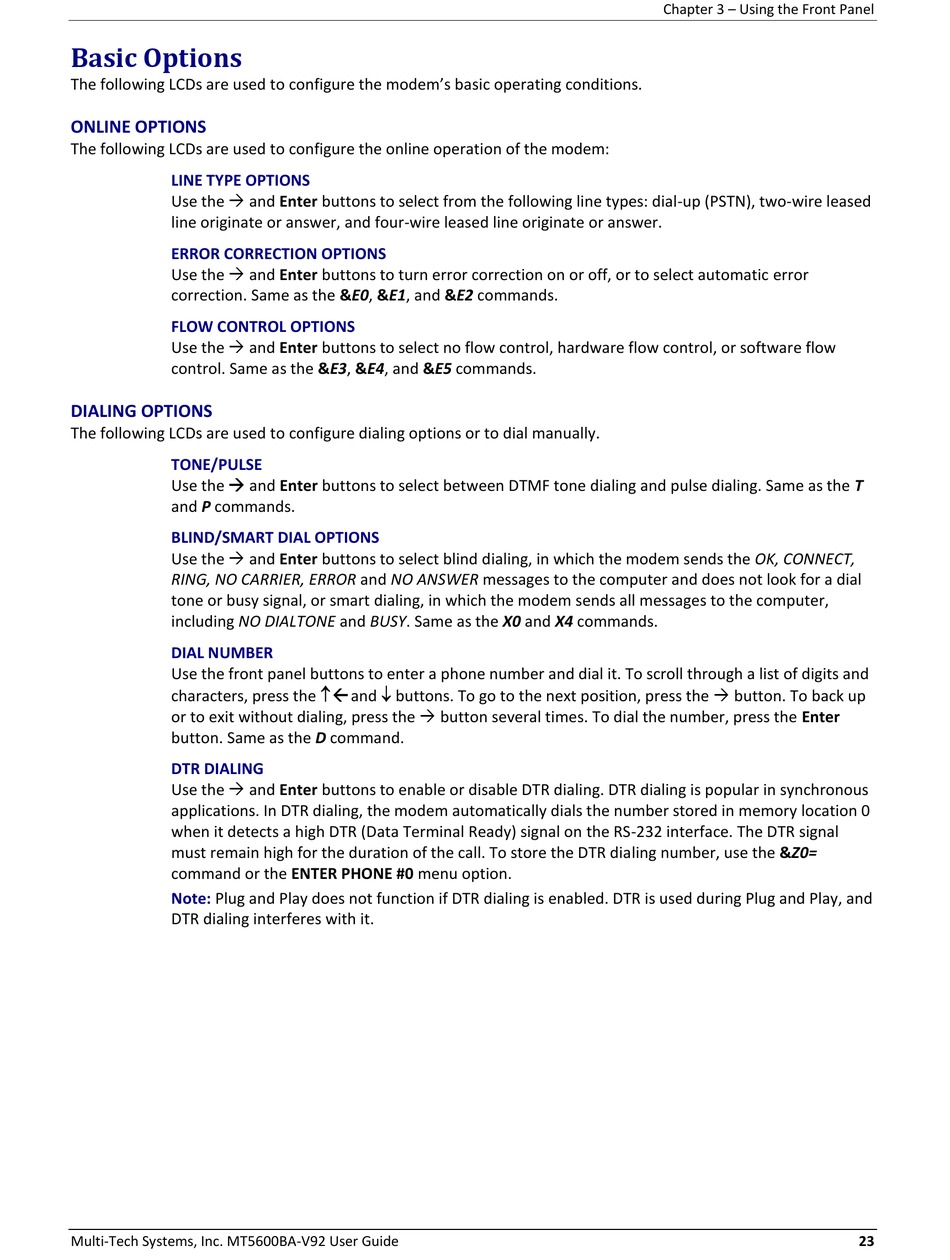

Basic Options
The following LCDs are used to configure the modem's basic operating conditions.
ONLINE OPTIONS
The following LCDs are used to configure the online operation of the modem:
LINE TYPE OPTIONS
Use the  and Enter buttons to select from the following line types: dial-up (PSTN), two-wire leased
line originate or answer, and four-wire leased line originate or answer.
ERROR CORRECTION OPTIONS
Use the  and Enter buttons to turn error correction on or off, or to select automatic error
correction. Same as the &E0, &E1, and &E2 commands.
FLOW CONTROL OPTIONS
Use the  and Enter buttons to select no flow control, hardware flow control, or software flow
control. Same as the &E3, &E4, and &E5 commands.
DIALING OPTIONS
The following LCDs are used to configure dialing options or to dial manually.
TONE/PULSE
Use the  and Enter buttons to select between DTMF tone dialing and pulse dialing. Same as the T
and P commands.
BLIND/SMART DIAL OPTIONS
Use the  and Enter buttons to select blind dialing, in which the modem sends the OK, CONNECT,
RING, NO CARRIER, ERROR and NO ANSWER messages to the computer and does not look for a dial
tone or busy signal, or smart dialing, in which the modem sends all messages to the computer,
including NO DIALTONE and BUSY. Same as the X0 and X4 commands.
DIAL NUMBER
Use the front panel buttons to enter a phone number and dial it. To scroll through a list of digits and
characters, press the   and  buttons. To go to the next position, press the  button. To back up
or to exit without dialing, press the  button several times. To dial the number, press the Enter
button. Same as the D command.
DTR DIALING
Use the  and Enter buttons to enable or disable DTR dialing. DTR dialing is popular in synchronous
applications. In DTR dialing, the modem automatically dials the number stored in memory location 0
when it detects a high DTR (Data Terminal Ready) signal on the RS-232 interface. The DTR signal
must remain high for the duration of the call. To store the DTR dialing number, use the &Z0=
command or the ENTER PHONE #0 menu option.
Note: Plug and Play does not function if DTR dialing is enabled. DTR is used during Plug and Play, and
DTR dialing interferes with it.
