Port Access Control

The following screens are used to monitor 802.1X statistics of the Switch, on a per port basis. To view the Port Access Control
windows, open the monitoring folder and click the Port Access Control folder. There are six windows to monitor.

Authenticator State

The following section describes the 802.1X Authenticator State on the Switch. This window displays the Authenticator State for
individual ports on a selected device. In Port-based mode if one of the attached hosts is successfully authorized, all hosts on the
same port will be granted access to the network. If the port authorization fails, the specified port(s) will continue authenticating. In
Host-based mode each user can individually authenticate and access the network.
To view this window, click Monitoring > Port Access Control > Authenticator State, as shown below:
The user may also view this window if any port/host is authenticated.
Parameter
Port List
MAC Address
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

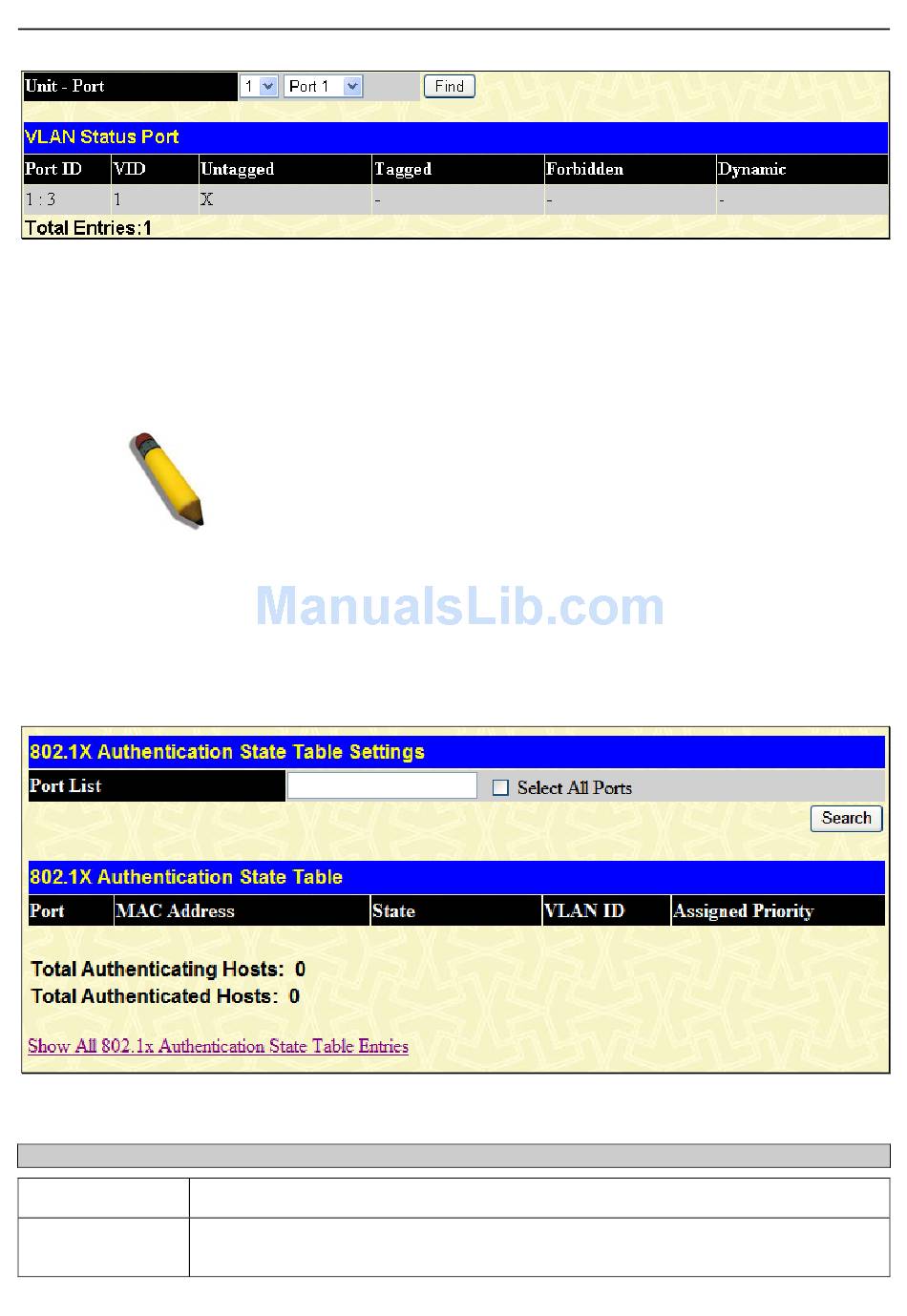

Figure 7 - 22 VLAN Status Port window
NOTE: The Authenticator State cannot be viewed on the Switch unless
802.1X is enabled by port or by MAC address. To enable 802.1X, go to
the DGS-3400 Web Management Tool window.
Figure 7 - 23 Authenticator State window
Description
Enter the port list you wish to find. To view all ports tick the Select All Ports check box.
Displays the MAC address of the client that is present when configured in mac based mode.
It displays "-p" when configured in port based mode.
309
