xStack
PROM Version Shows the PROM in use for the Switch. This may be different from the values shown in the
illustration.
Runtime Version Shows the firmware version in use for the Switch. This may be different from the values shown in
the illustrations.
H/W Version Shows the hardware version in use for the Switch. This may be different from the values shown
in the illustration.
Topology Show the current topology employed using this Switch.
My Box ID Displays the Box ID of the Switch currently in use.
Displays the Unit ID number of the Primary Master of the Switch stack.
Master ID
Backup Master Displays the Unit ID of the Backup Master of the switch stack.
Box Count Displays the number of switches in the switch stack.

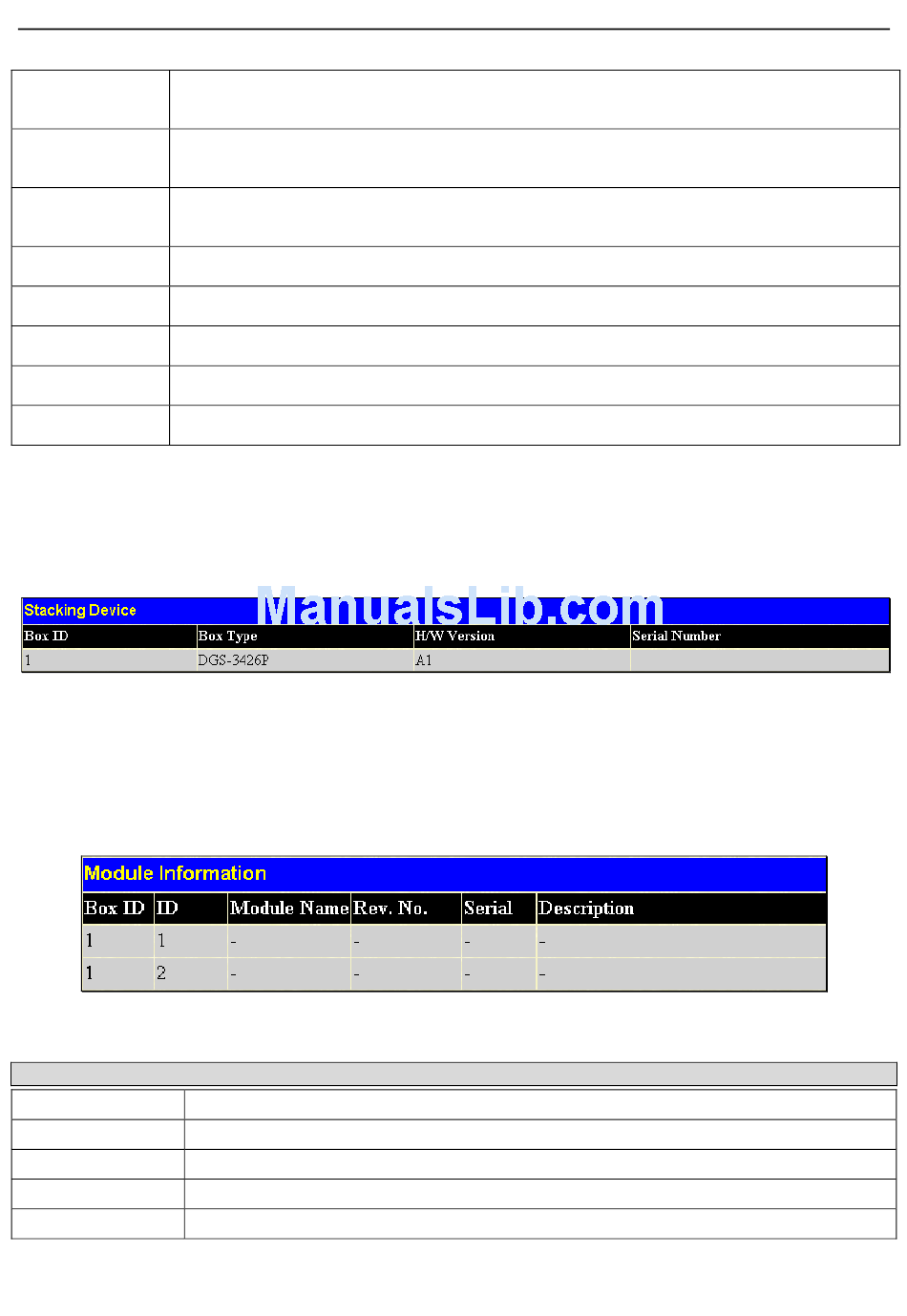

Stacking Device

This window is used to display the current devices in the Switch Stack.
To view this window, click Monitoring > Stacking Device, as shown below:

Module Information

This window displays information about any installed modules.
To view this window, click Monitoring > Module Information, as shown below:
Module information displayed:
Parameter
ID
Module Name
Rev. No.
Serial
Description
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Figure 7 - 3 Stacking Device window
Figure 7 - 4 Module Information window
Description
The slot number where the module is installed.
The full name of the module installed.
The version of the installed module.
The serial number of the module.
A brief description of the type of module.
292
