DHCP Relay Option 61 Default Settings

This window is used to configure the DHCP Relay Option 61 Default Settings. These settings are used to determine the rule to
process those packets that have no option 61 matching rules.
To view this window, click Administration > DHCP/BOOTP Relay > DHCP Relay Option 61 Default Settings, as shown
below:
The following parameters may be configured.
Parameter
DHCP Relay Option
61 Default
Click Apply to implement changes made.

DHCP Relay Option 61 Settings

This command is used to add a rule to the relay server based on option 61. The matching rule can be based on either the MAC
address or by using a user-specified string. Only one relay server can be specified for a MAC address or a string. If the existing
relay servers are determined based on option 60, and one relay server is determined based on option 61, the final relay servers will
be the union of these two sets of servers.
To view this window, click Administration > DHCP/BOOTP Relay > DHCP Relay Option 61 Settings, as shown below:
To add a new entry click Add the following window will appear. To remove an entry, enter the appropriate MAC Address or
String information and click Delete. To delete all entries click Clear All.
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Partial Match – The option 60 string in the packet only needs to partially match the specified
string.

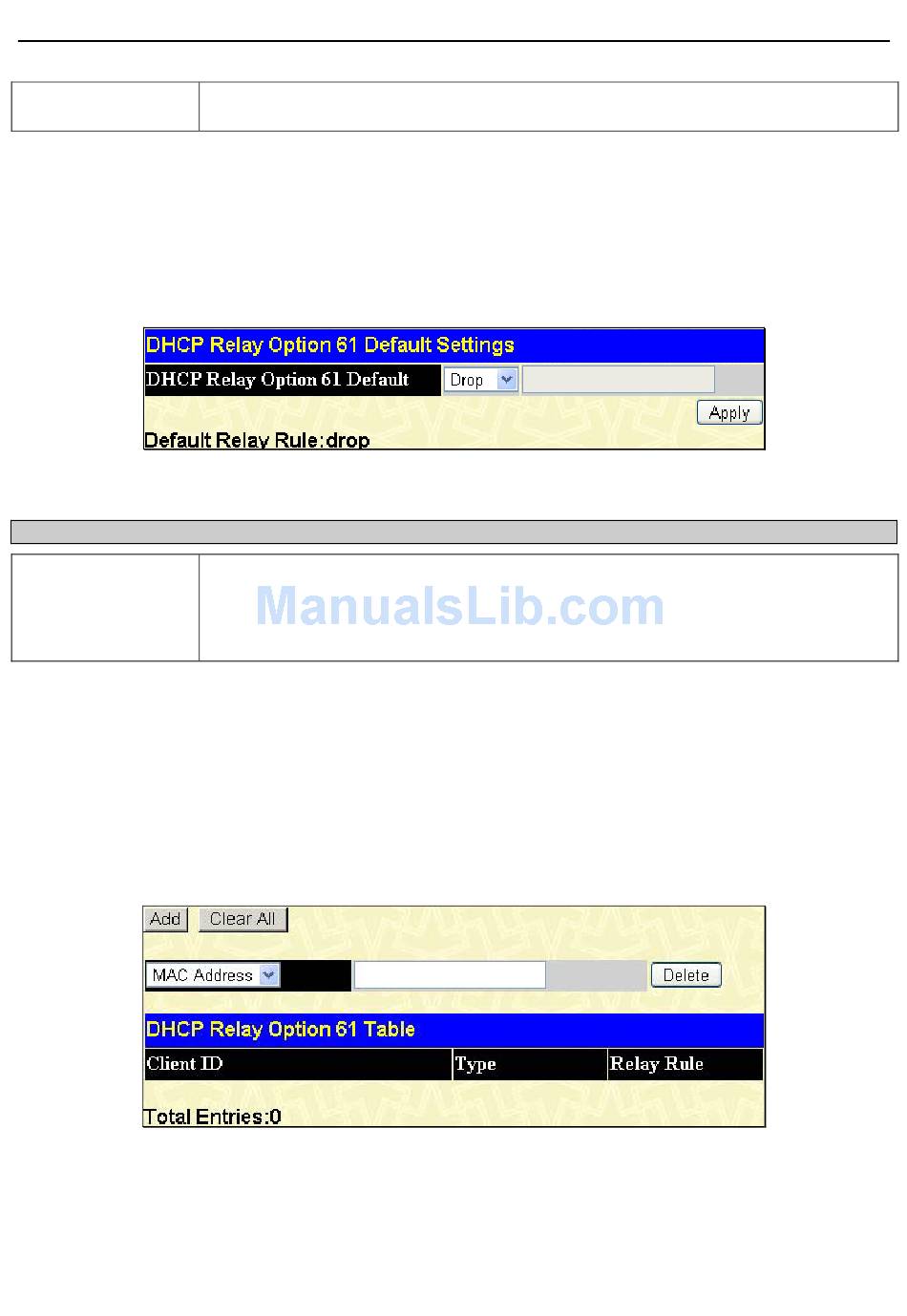

Figure 2 - 56 DHCP Relay Option 61 Default Settings window
Description
Use the pull-down menu to choose either Relay or Drop. When drop is specified, the packet
with no matching rules found will be dropped without further process. When relay is selected
the packet will be relayed based on the relay rules.
Enter the IP Address of the entry you wish to configure.
Figure 2 - 57 DHCP Relay Option 61 Settings window
