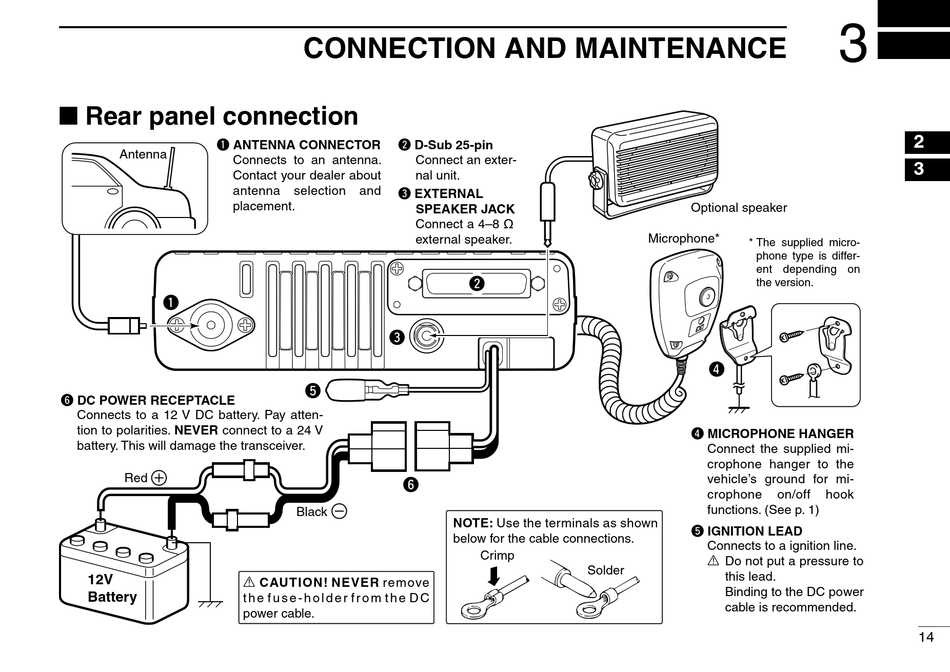

■ Rear panel connection

q ANTENNA CONNECTOR
Antenna
Connects to an antenna.
Contact your dealer about
antenna
placement.
q
y DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay atten-
tion to polarities. NEVER connect to a 24 V
battery. This will damage the transceiver.
Red
12V
Battery

CONNECTION AND MAINTENANCE

w D-Sub 25-pin
Connect an exter-
nal unit.
selection and
e EXTERNAL
SPEAKER JACK
Connect a 4–8 ˘
external speaker.
e
t
y
Black
R CAUTION! NEVER remove
t h e f u s e - h o l d e r f r o m t h e D C
power cable.
w
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
Solder
Optional speaker
Microphone*
*
The supplied micro-
phone type is differ-
ent depending on
the version.
r
r MICROPHONE HANGER
Connect the supplied mi-
crophone hanger to the
vehicle's ground for mi-
crophone on/off hook
functions. (See p. 1)
t IGNITION LEAD
Connects to a ignition line.
R Do not put a pressure to
this lead.
Binding to the DC power
cable is recommended.
