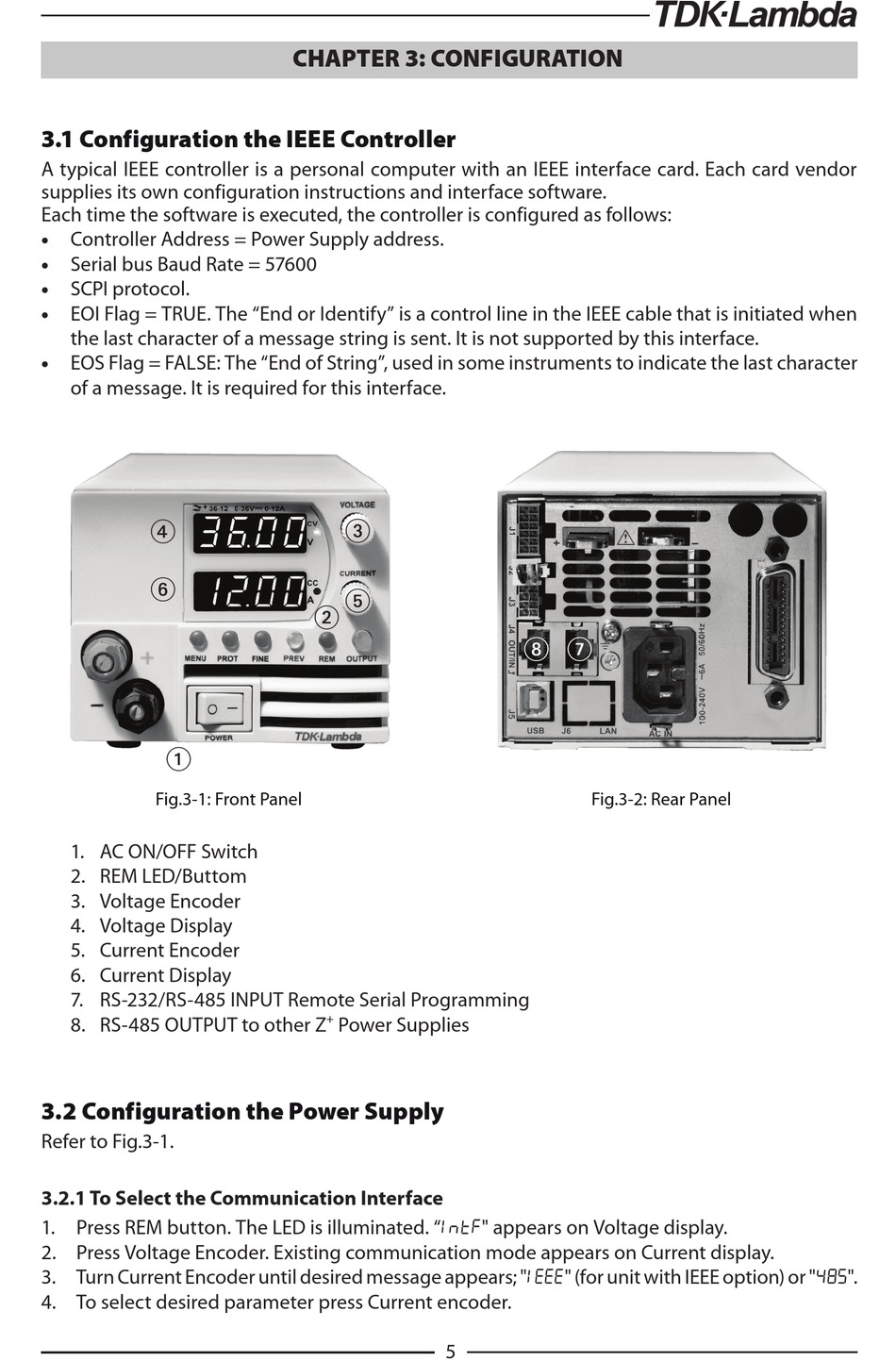

3.1 Configuration the IEEE Controller

A typical IEEE controller is a personal computer with an IEEE interface card. Each card vendor
supplies its own configuration instructions and interface software.
Each time the software is executed, the controller is configured as follows:
•
Controller Address = Power Supply address.
•
Serial bus Baud Rate = 57600
•
SCPI protocol.
•
EOI Flag = TRUE. The "End or Identify" is a control line in the IEEE cable that is initiated when
the last character of a message string is sent. It is not supported by this interface.
•
EOS Flag = FALSE: The "End of String", used in some instruments to indicate the last character
of a message. It is required for this interface.
Fig.3-1: Front Panel
1. AC ON/OFF Switch
2. REM LED/Buttom
3. Voltage Encoder
4. Voltage Display
5. Current Encoder
6. Current Display
7. RS-232/RS-485 INPUT Remote Serial Programming
8. RS-485 OUTPUT to other Z

3.2 Configuration the Power Supply

Refer to Fig.3-1.

3.2.1 To Select the Communication Interface

1. Press REM button. The LED is illuminated. "INtF" appears on Voltage display.
2. Press Voltage Encoder. Existing communication mode appears on Current display.
3. Turn Current Encoder until desired message appears; "I" (for unit with IEEE option) or "5".
4. To select desired parameter press Current encoder.

CHAPTER 3: CONFIGURATION

+
Power Supplies
5
Fig.3-2: Rear Panel
