4. Click Communicate with Instrument in the GPIB Explorer toolbar. NI-488.2 Communicator
appears. Refer to Fig. 4-3

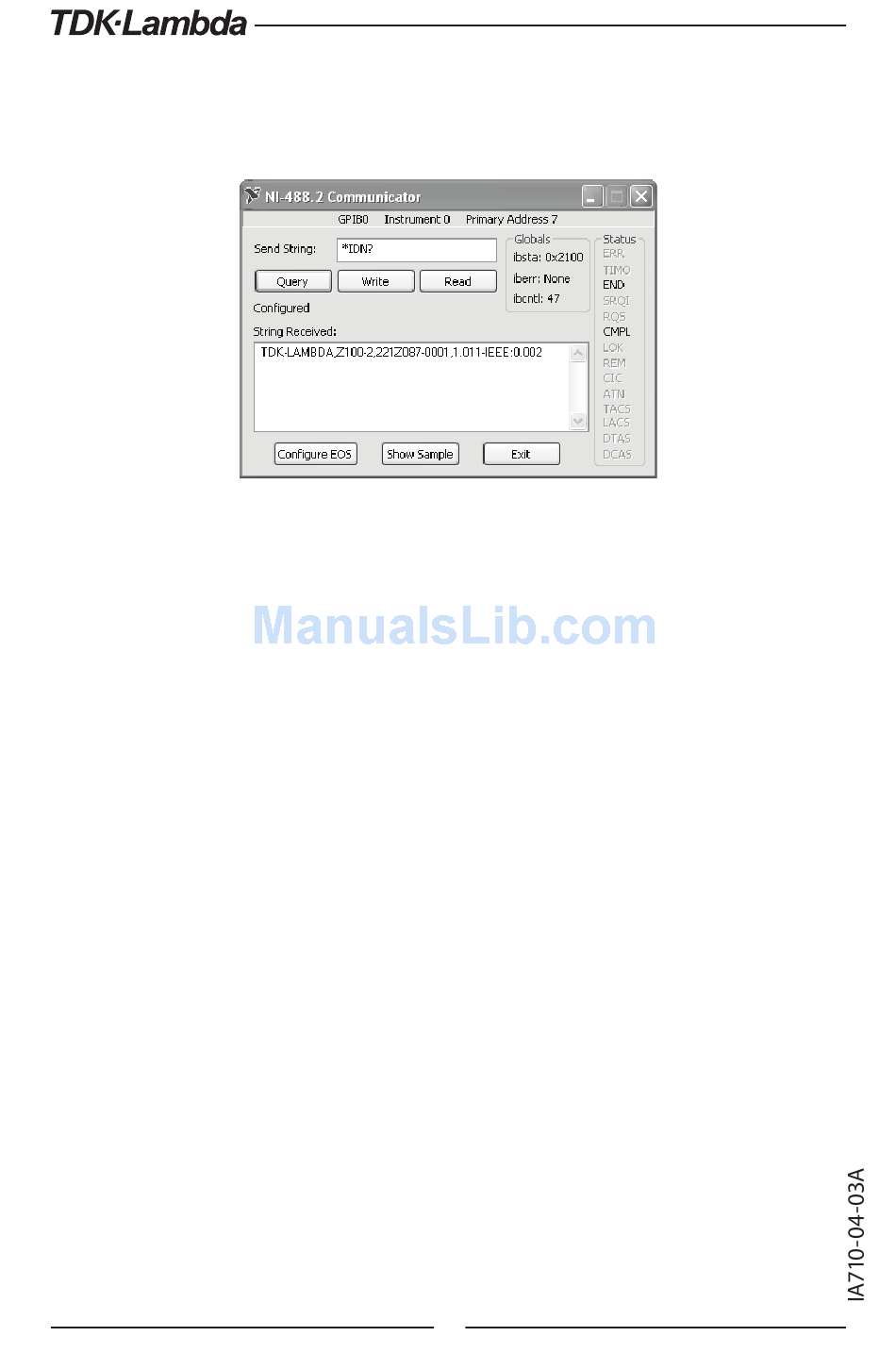

Fig.5-3: ID String Query
5. In the Send String box, *IDN? appears. Click Query. The ID string indicates the model, serial
number, firmware version and the GPIB card firmware version. This will be shown in the text
box below String Received. Refer to Fig.4-3.
16
