- Page 1 CMDP-13MDPI 1by 3 Mini DisplayPort Extender Splitter Operation Manual CMDP-13MDPI...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Revision History
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction …………...……………………………………..………. Applications ……...……………..…………………………....…. Package Contents …………………………..…………….....… System Requirements ……...…………………..….…………..……. Features …………………………...………………..……..……… Specifications ..……………..………………………...………...…. Operation Controls and Functions ………………...……..……… 7.1 Front Panel ................... 7.2 Rear Panel …………..………………………………..…….… 7.3 Top Panel ………..………………………………...…….… Timing tables for monitor ………………........……. Connection and Installation …….…………………..…..…..…... 10. -
Page 5: Introduction

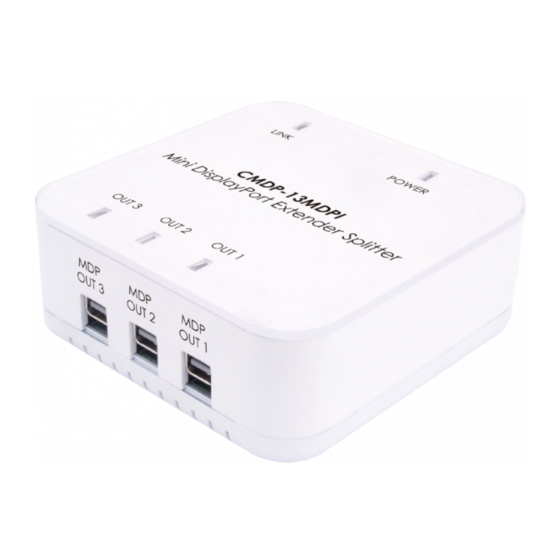

1. Introduction For those who want to display large content the 1x3 Mini DisplayPort Extender Splitter is for you. Able to extend an image onto 2 or 3 displays, this device also allows you to split an image two or three times to connected displays while giving you a platform that is perfect for multi-tasking. -
Page 6: Specifications
6. Specifications Output Resolution 1920 x 1200 Input port 1 x Mini DisplayPort Output ports 3 x Mini DisplayPort Power Supply 3.3V / 1.5A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions(mm) 100 (W) x 70 (D) x 20 (H) Weight(g) -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel OUT 3 OUT 2 OUT 1 MDP OUT 1~3: Connect these slots with the output displays Mini ① DisplayPort input port in order to send a signal. Note: It is suggested to use the same type/model of display in order to get optimal image quality. -
Page 8: Top Panel
7.3 Top Panel LINK POWER CMDP-13MDPI Mini DisplayPort Extender Splitter OUT 3 OUT 2 OUT 1 LINK LED: The green LED will turn on when the input source device is ① connected. POWER LED: The green LED will switch on when the device is powered on. -
Page 9: Timing Tables For Monitor
8. Timing tables for monitor The 1 by 3 Mini DisplayPort splitter is a smart device with a built in feature that can define which and how many monitors are connected and can transmit the proper signal for the display. Below is the expanded timing list which is supported by the device. -
Page 10: Connection And Installation
9. Connection and Installation Mac Pro / Mac Book / Mac Mini LED Cinema Display LED Cinema Display LED Cinema Display LED Cinema Display LED Cinema Display LED Cinema Display... -
Page 11: Acronyms
Acronyms Acronym Complete Term EDID Extended display identification data Graphics Processing Unit HDCP High-bandwidth Digital Content Protection... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100505 MPM-CMDP13MDPI...
