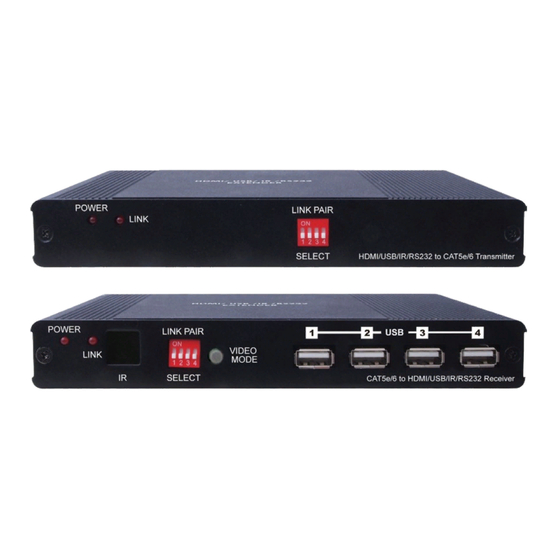

- Page 1 CA-USBHUT & CA-USBHU100R Multi-functioning HDMI/USB/ RS-232 & IR over single CAT5e/6 Transmitter and Receiver Extender Box Operation Manual CA-USBHUT & CA-USBHU100R...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Transmitter’s Front Panel ............Transmitter’s Rear Panel .……………………..…..…...….… Receiver’s Front Panel ............Receiver’s Rear Panel .………………...…..……..…...….… D-Sub 9Pin Definitions ….…………………..….....…..…..Connection and Installation ….…………………..…..…..….. -
Page 5: Introduction
1. Introduction With HDMI & USB over CAT5e/6 connectivity are becoming popular nowadays. The growing need for their flexibility has likewise risen in demand. The HDMI & USB over a CAT5e/6 transmitter and receiver box solution is developed for any household and/or commercial environment. This pair of devices allows HDMI and or USB host device to send data within a 100-meters distance while offering expandability for up to 4 USB outputs to perform tasks. -
Page 6: System Requirements
4. System Requirements Input HDMI and or USB source equipment such as DVD, Blu-Ray player and or PC/Notebook with connection cables. Output display such as HD TV, monitor and active speaker or amplifier with connection cables. CAT5e/6 cable up to 100Ms in between of transmitter and receiver. ... -
Page 7: Specifications
6. Specifications Transmitter Input Port 1 x USB (B type) 1 x HDMI 1 x IR Blaster 1 x RS-232 Output Port 1 x RJ45 Receiver 1 x RJ45 Input Port 1 x 3.5Ø Audio In Output Ports 4 x USB (A type) 1 x HDMI 1 x RS-232 1 x IR Receiver... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Transmitter’s Front Panel LINK LINK PAIR SEL HDMI/USB/IR/RS232 to CAT5e/6 Transmitter ① ② ③ ① This LED will illuminate when the transmitter is linked with receiver's signal. ② USB LED: This LED will illuminate when the transmitter has linked with receiver's USB signal. -
Page 9: Receiver's Front Panel
7.3 Receiver’s Front Panel LINK LINK PAIR SEL CAT5e/6 to HDMI/USB/IR/RS232 Receiver ① ② ③ ④ ⑤ ⑥ ① Link LED: The LED red will illuminate when the device has received output display ’ s single and input source ’ s data. ②... -
Page 10: Receiver's Rear Panel
7.4 Receiver’s Rear Panel ① ② ③ ④ ⑤ ⑥ ⑦ ① DC 5V: Plug the DC power supply into the unit and connect the adaptor to AC wall outlet. Power LED will illuminate when the power is on. ② Power LED: The red LED will illuminate when the device is connected with power. -
Page 11: Connection And Installation
9. Connection and Installation Transmitter's Rear Panel Notebook Notebook PC or Blu-ray IP Router Receiver's Rear Panel Microphone Active TV/Monitor Speaker Receiver's Front Panel ° ° Keybord Mouse Flash... -
Page 12: Acronyms
Acronyms Acronym Complete Term CAT6 Catergory 6 Cable HDCP High-bandwidth Digital Content Protection HDMI High-Definition Television Universal Serial Bus... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100706 MPM-CAUSBHUT...
