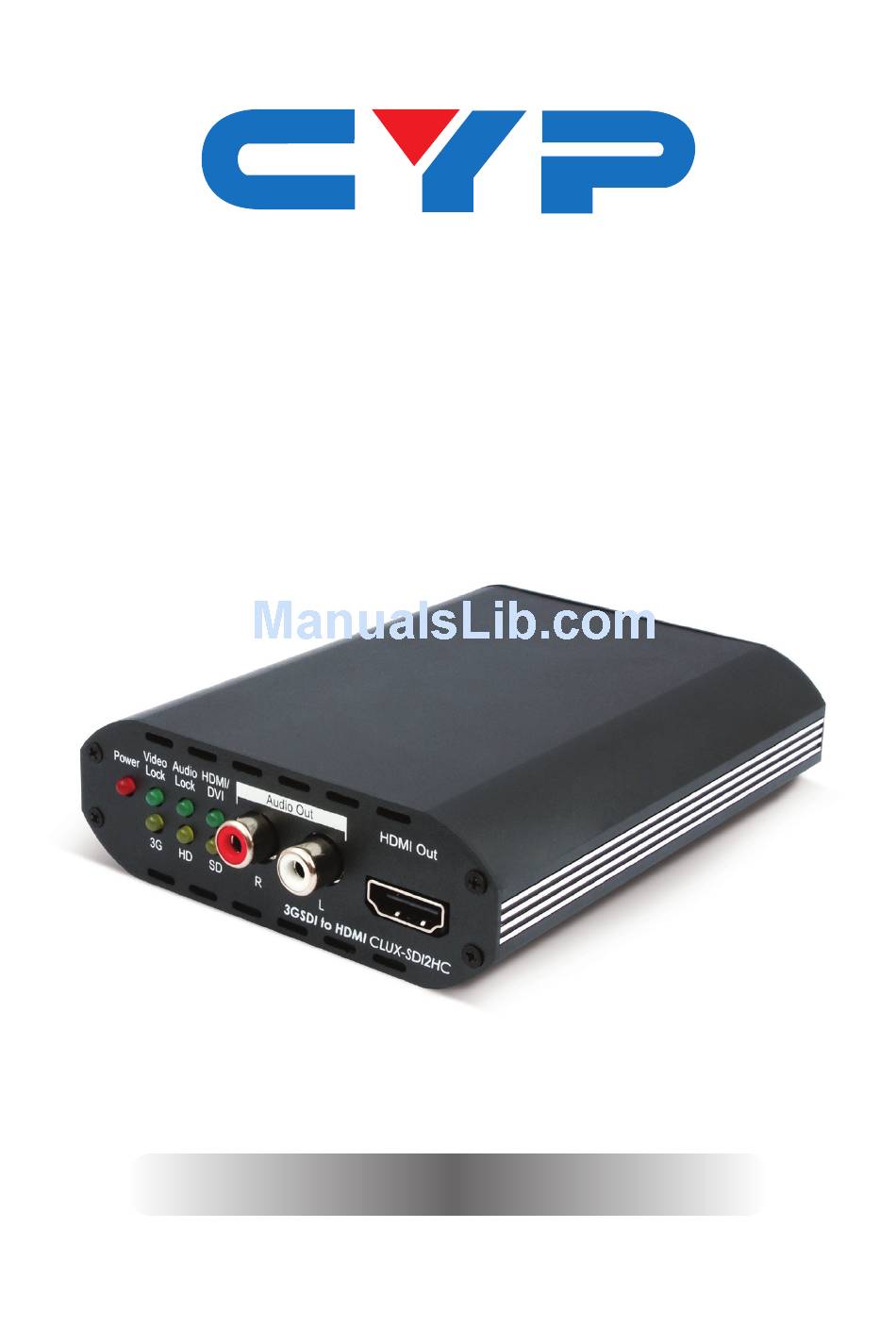

- Page 1 CLUX-SDI2HC 3G-SDI Extender with HDMI Converter Operation Manual Operation Manual...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panels ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 6: Introduction
1. INTRODUCTION The SDI to HDMI Converter allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. Furthermore, thanks to L/ R audio outputs users can output audio in analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and HDMI displays. -
Page 7: Features
5. FEATURES • Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection • Supports HDMI and SDI (bypass) output simultaneously • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s • Converts SDI signal to HDMI: 1. -
Page 8: Operation Controls And Functions

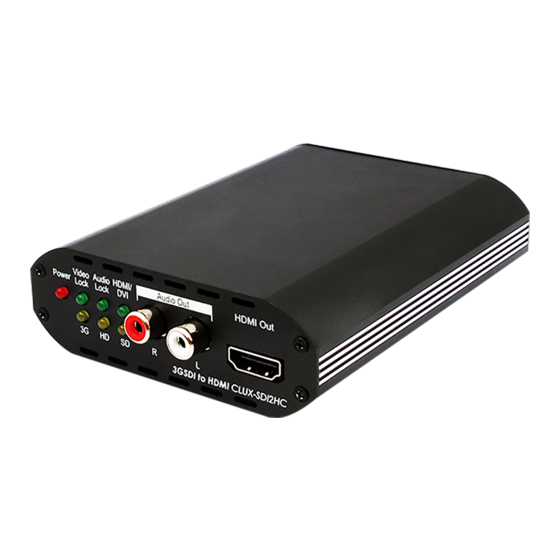

HDMI Out Power Lock Lock 3GSDI to HDMI CLUX-SDI2HC Power LED: The LED will illuminate red when the device is connected to a power supply. Video Lock LED: The LED will illuminate green when both the input SDI source and the output HDMI display have successfully sent and received a signal. -
Page 9: Rear Panel
6.2 Rear Panel SDI IN SDI OUT DC 5V SDI IN: Connect to the SDI output of the SDI source device. Accepts SD,HD or 3G SDI signals. SDI OUT: Provides a 'loop-through' SDI signal output for connection to a SDI display or device. Can be connected to another SDI to HDMI converter/extender to extend the signal or to connect to multiple displays for mirrored output. -
Page 10: Connection Diagram
Unit SDI IN SDI OUT DC 5V SDI Input SDI Output SDI IN SDI OUT DC 5V Video Audio HDMI/ Audio Out HDMI Out Power Lock Lock 3GSDI to HDMI CLUX-SDI2HC HDMI Output Stereo Audio Output Amplifier HDMI Display... -
Page 11: Specifications
8. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gbps 1.485 Gbps, 1.485/1.001 Gbps and 270 Mbps Video Bandwidth 225 MHz/6.75Gbps Input 1×BNC (SD/HD/3G-SDI) Output 1×BNC (SD/HD/3G-SDI), 1×HDMI, 2×RCA SDI Timing Support SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI:... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97Gbps ≈ 3G Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface Serial Digital Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
