- Page 1 CLUX-SDI2HC 3G SDI Extender with HDMI Converter Operation Manual CLUX-SDI2HC...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. Features ..................1 5. System Requirements ..............1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Front Panel ..............3 Rear Panel ..............4 8. Connection and Installation . -
Page 5: Introduction

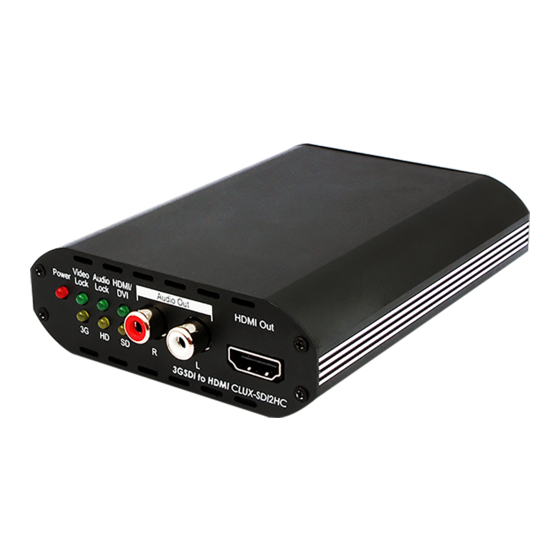

1. Introduction The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter. -
Page 6: Specifications
6. Specifications SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s Frequency Bandwidth 225MHz/link (HDMI 1.3) Input Port 1 x BNC (SDI/HD-SDI/3G-SDI) Output Port 1 x BNC (SDI/HD-SDI/3G-SDI), 1 x HDMI, 2 x RCA Jack Video Supports 480i, 576i, HD-SDI-720p, 1080i, 3G-SDI-1080p Power Supply... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel . Power LED: This red LED will switch on when the device is connected with the power supply. . Video Lock LED: This green LED will turn on when both the input SDI source and the output HDMI display have sent and received a signal. . -
Page 8: Rear Panel
7.2 Rear Panel . SDI IN: This slot is where you connect the SDI source to, in order to send a SDI signal to a display. . SDI OUT: This slot is where you connect the SDI display to, with an SDI cable for displaying images. -
Page 9: Connection And Installation
8. Connection and Installation Video Camera CLUX-SDI2HC Sony Amplifier Monitor HD TV DVD Recorder LMD-245W... - Page 10 Acronyms Acronym Complete Term Bandwidth 2.97Gbit/s ≈ 3G Serial Digital Interface...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-SDI2HC...
