- Page 1 CIR-03 Infrared Extender Box and CIR-12 Infrared Repeater Operation Manual CIR-03 & CIR-12 CIR-03 & CIR-12...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Contents………………………………………………......… System Requirement…………………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Operation Controls and Functions………………...……..……… Front Panel ................Rear Panel …………………………………………..…….… IR Cable Pin Definition......…………...……..……… 3.5Ø Connectors Pin Definition............IR IN Pin Definition ..............IR OUT Pin Definition ..............RJ-45 Pin Definition ..............Connection and Installation …….…………………..……..…... -
Page 5: Introduction
Infrared Extender Box (CIR-03) Infrared Repeater Box (CIR-12) 1pc IR Eye Receiver cable (CIR-12) 5pcs IR Eye blaster cables (3pcs for CIR-03, 2pcs for CIR-12) 1pc 5V DC power supply adaptor (for CIR-12) Operation Manual ... -
Page 6: Specifications
Input Port 1 x IR receiver (CIR-12) Output Ports 1 x CAT5 (CIR-03, CIR-12) 5 x IR extender (3 x CIR-03, 2 x CIR-12) Power Supply 1 x 5V/1A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 10kV (air-gap discharge) ±... -
Page 7: Operation Controls And Functions

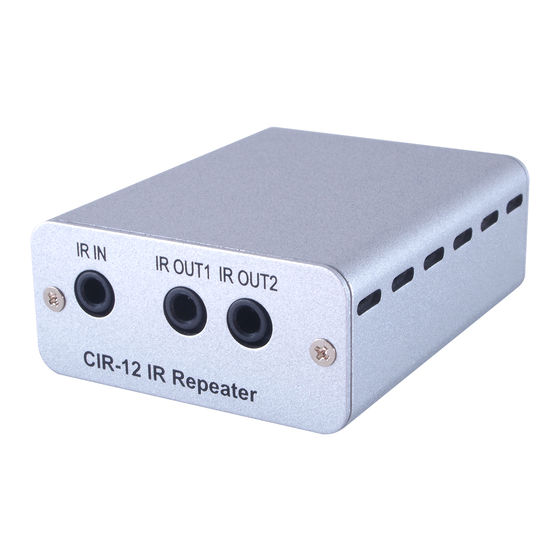

IR OUT2I R OUT3 IR IN IR OUT1I R OUT2 CIR-03 IR Extender CIR-12 IR Repeater ① IR OUT1, 2 and 3: Connect your IR Eye Blaster cables each at 2M long to control source equipments. IR Receiver IR Extender ②... -
Page 8: Ir Cable Pin Definition
8. IR Cable Pin Definition IR Blaster IR Receiver ① Power 5V ① IR signal ② Power 5V ② Power 5V ③ IR blaster signal ③ Grounding ① ② ③ ① ② ③ 9. 3.5Ø Connectors Pin Definition 9.1 IR IN Pin Definition Assignment Power 5V IR Signal... -
Page 9: Connection And Installation
10. Connection and Installation CIR-12 Front Panel Matrix Rear Panel IR CAT5 Blue Ray Rear Panel CIR-03 Front Panel Note: A. IR receiver's control distance can reach up to 7 meters long with open space and direct angle. B. IR extender's control distance can reach up to 3 meters with open... - Page 10 Acronyms Acronym Complete Term CAT5 Category 5 Cable Infrared Direct Current Ground...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20081202 MPM-CIR03...
