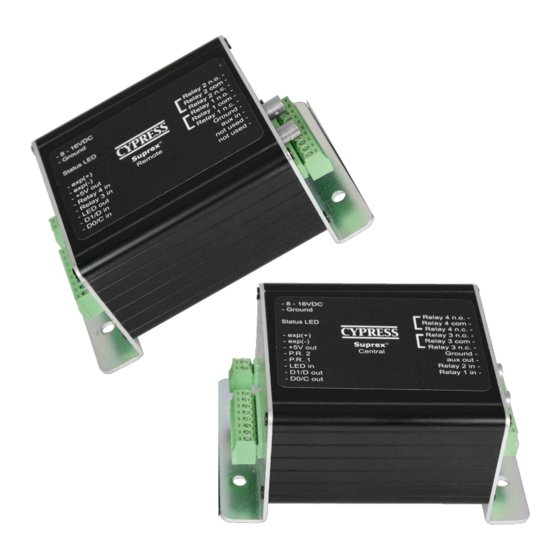

- Page 1 SPX-7400 Series Operations Manual Suprex® Reader Extender - Fiber Optic Interface SPX-7400 shown with EXP-2000 SPX-7400_MAN_082112...
- Page 2 Suprex® SPX-7400 Series This manual covers the operation and setup of the Cypress Suprex® Fiber Optic SPX-7400 series units. Overview: The SPX-7400 series of Fiber Optic solutions provides a bridge from Card Readers with gates or door hardware to most access control manufacturers panels.
- Page 3 External connections and DIP Switch Settings 1 - 8 to 16 VDC In 2 - Ground SPX-7400 1- Relay 4 N.O. Central 2- Relay 4 Com Status LED 3 - Relay 4 N.C. 4 - Relay 3 N.O. 1 - exp (+) 5 - Relay 3 Com 2 - exp (-) 6 - Relay 3 N.C.
- Page 4 Quick Reference For Typical Connections SPX-7400 Series Central Power +8 to +16 VDC Supply Ground Diagnostic LED R1 Input Controls Strike on Access Control Remote Panel LED In D1/Data Out R1 IN D0/Clock Out See page 10 for other strike control options SPX-7400 Series Remote +8 to +16 VDC Power...
- Page 5 Fiber Optic Connections Fiber Optic Interface SPX-7400 Central Fiber Optic Interface SPX-7400 Remote...
- Page 6 Temperature Rating vs Voltage Derating Curve Ambient Temperature (Degrees Celsius) Supply Voltage Temperature/Voltage de-rating curve The Suprex® units should be operated with a filtered 12 Volt nominal DC supply. Any voltage between 8 and 16 volts can be utilized by following the temperature /voltage derating curve.
- Page 7 Cypress Suprex® SPX-7400 Enclosure Dimensions 4.45 3.15 0.80 3.08 0.80 ø0.20 X 4 1.70 2.00...
- Page 8 Cypress Suprex® SPX-7400 Series - Setup and Pre-installation Bench Testing: Before installing the units in the field they should be assembled and tested at a convenient “Bench top” location. This will make it easier to verify / change settings and check operation when both units are visible at the same time.
- Page 9 Cypress Suprex® SPX-7400 Series - Status Indicators LED Diagnostic Indicator: The LED Diagnostic indicator provides information on the operational status of the unit. If the units are not communicating, viewing the diagnostic indicator LED’s may help to determine the nature of the problem.
- Page 10 Cypress Suprex® F.O. Series - Door Strike and LED I/O Note: The LED and Door Strike operation of the FO Suprex® differs from previous Suprex® version To activate the relay on the Remote unit, connect as shown below. These connections can be used to allow the Remote relay to operate a DOOR STRIKE, GATE, or other locking hardware.
- Page 11 Cypress Suprex® F.O. Series - Door Strike and LED I/O The Cypress SPX-7400 provides additional data channels to support access control hardware such as door strikes, tamper alarms, request to exit status, etc. These signals are sent to and from the Remote and Central units without the need to run additional wiring.
- Page 12 Cypress Suprex® F.O. Series - Relay Controls Suprex® Central Suprex® Central Relay 2 IN Input Signal Relay 1 IN Input Signal Red arrow denotes direction of command signal Relay 2 N.O. Suprex® Remote Relay 2 Com Relay 2 N.C. Contact Relay 1 N.O.
- Page 13 Cypress Suprex® F.O. Series - Relay Controls Relay 4 N.O. Suprex® Central Relay 4 Com Relay 4 N.C. Relay 3 N.O. Contact Relay 3 Com Outputs Relay 3 N.C. Suprex® Central Contact Outputs Red arrow denotes direction of command signal Suprex®...
- Page 14 SPX-XXXX Application Note Using Supervised Contacts with the SPX-series Extenders Applies to the following products: SPX-5501, SPX-5601, SPX-5521, SPX-5621, SPX-7400, SPX-7410, SPX-7200, SPX-7500, All RIM series products. This application note describes the connections necessary to convey supervised contact status over a Suprex®...
- Page 15 SPX-7400 Setup - Using Expansion Modules Before using EXP-2000 Expansion modules with the SPX-7400 system, it will be necessary to perform a short configuration process. This process determines if the 7400 will utilize expansion modules, and if so, how many will be used with the system.
- Page 16 Cypress Suprex® LYNK Fiber Optic Solution Door / Parking Gate EXP-2000C SPX-74X0R (1) EXP-2000C EXP-2000R EXP-2000R EXP-2000C EXP-2000R EXP-2000C EXP-2000R SPX-74X0C (1) Card Reader Wiegand Data Fiberoptic Link RS-485 Link - Multi-drop...
-
Page 17: Central Unit
Cypress Suprex® Series - Wiegand Expansion Module Panel “Central” interface Power +8 to +16 VDC Supply Ground SPX-XXXX Central EXP(+) EXP(-) R1 Input Access Controls Control LED In Strike on Panel D1/Data Out R1 IN Remote D0/Clock Out 8 to 16 VDC In RLY4 N.O. -
Page 18: Remote Unit
Cypress Suprex® Series - Wiegand Expansion Module Reader/Door “Remote” interface Power 8 to 16 VDC In SPX-XXXX Supply Ground Remote EXP (+) R1 N.O. EXP (-) Door R1 Com Strike R1 N.C. Output LED Out Card Reader D1/Data In D0/Clock In...
