Suprex
®
RS-485
SPX-7500
Wired Reader-Extender
Product Manual
SPX-7500_MAN_180102
Cypress Integration Solutions
30+ Years of Access Control Ingenuity
CypressIntegration.com
© 2017 Cypress Computer Systems
1778 Imlay City Road, Lapeer, MI 48446
800-807-2977

Advertisement

loading
Need help?

Need help?

Do you have a question about the Suprex SPX-7500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cypress Suprex SPX-7500

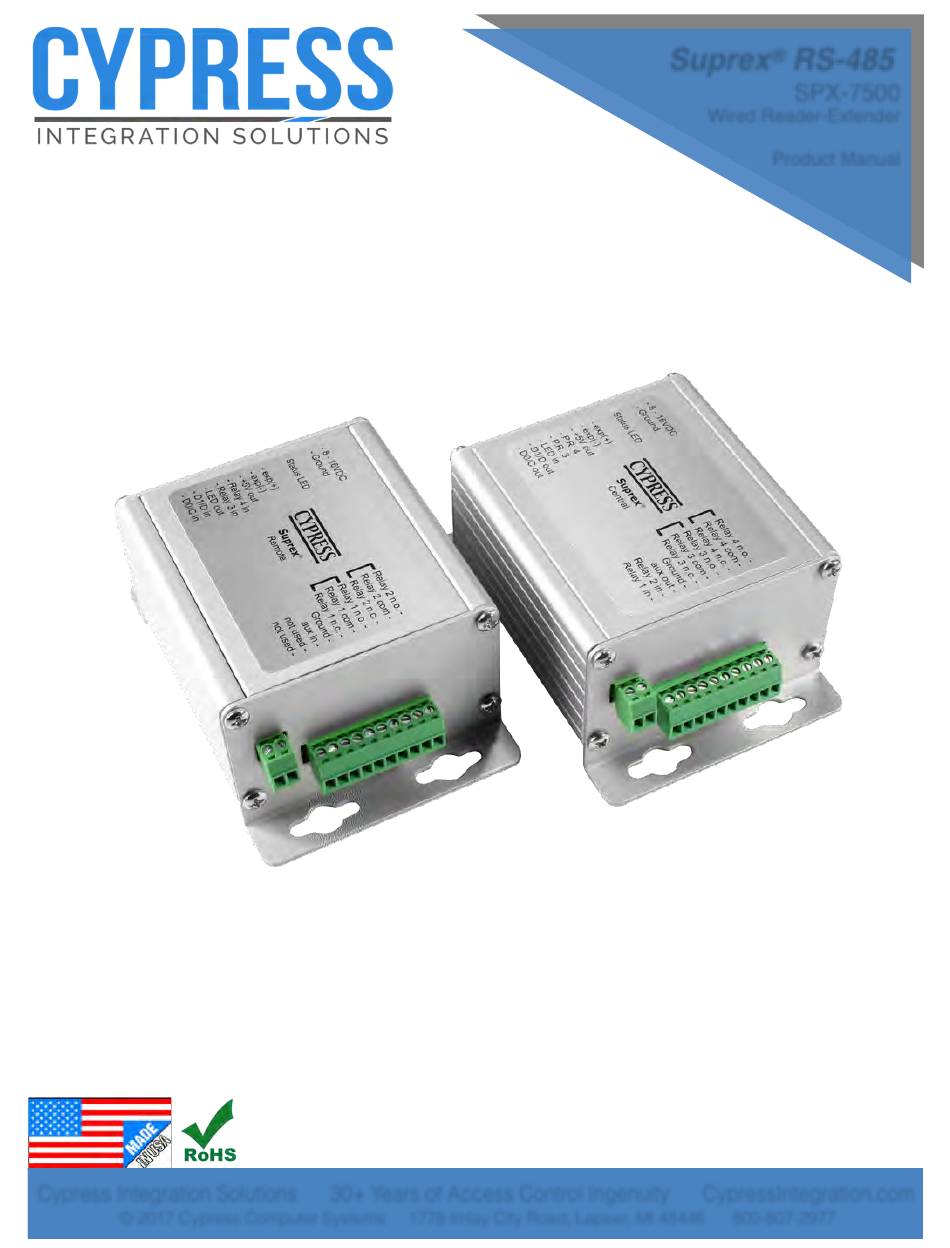

  • Page 1 Suprex ® RS-485 SPX-7500 Wired Reader-Extender Product Manual SPX-7500_MAN_180102 Cypress Integration Solutions 30+ Years of Access Control Ingenuity CypressIntegration.com © 2017 Cypress Computer Systems 1778 Imlay City Road, Lapeer, MI 48446 800-807-2977...

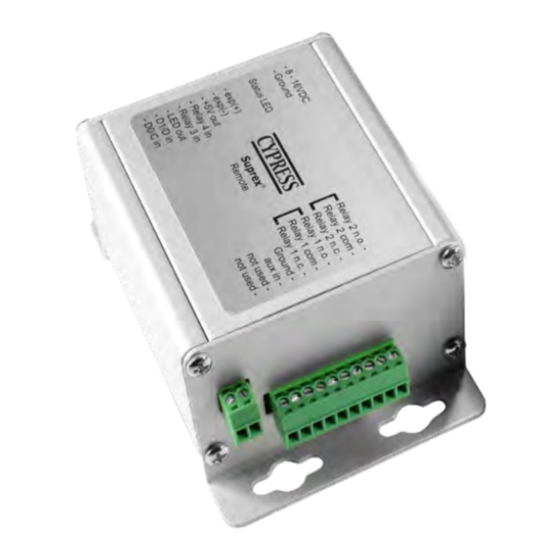

  • Page 2 Cypress Suprex ® RS-485 Series - SPX-7500 Overview The Suprex ® RS-485 SPX-7500 series makes it possible to install card readers far from the access control panel, by providing a two wire RS-485 link between the door or gate readers, and most manufacturers’ panels. The Suprex includes both a Remote (door/gate) unit and a Central (AC Panel) unit.
  • Page 3 Cypress Suprex ® RS-485 Series - Table of Contents Table of Contents Topic Page Overview and Specifications Physical Dimensions and Mounting Hole Locations Central and Remote Pin Layout Setup and Pre-Installation Indicators and Operating Modes Common Configuration and Run Mode Settings...
  • Page 4 Cypress Suprex ® RS-485 Series - Physical Dimensions and Mounting Hole Locations 3.065" 2.770" ø 0.120 X 4 SPX-7500 Enclosure SPX-5631 / SPX-5641 / RPT-5651 4.0625" 3.155" 2.890" ø 0.120 X 4 EXP Enclosure EXP-2000 4.125" All dimensions are listed in inches.
  • Page 5 Cypress Suprex ® RS-485 Series - Central and Remote Pin Layout SPX-7500 Central 8-16VDC Input Ground Relay 4 N.O. Relay 4 COM Relay 4 N.C. Relay 3 N.O. EXP(+) Relay 3 COM EXP(-) Relay 3 N.C. +5VDC Output Ground Prog Res 2...
  • Page 6 Cypress Suprex® RS-485 Series - Setup and Pre-installation Unpacking: Remove Central and Remote units from from the packaging material and check interior for any shipping damage. Inventory any included parts (depending on model) such as terminal connectors. Bench Testing: Before installing the units in the field they should be assembled and tested at a convenient bench top location. This will make it easier to verify / change settings and check operation when both units are visible at the same time.
  • Page 7 Cypress Suprex® RS-485 Series - Indicators and Operating Modes LED DIAGNOSTIC INDICATOR The LED Diagnostic indicator provides information on the operational status of the unit. If the units are not communicating, viewing the diagnostic indicator LEDs may help to determine the nature of the problem.
  • Page 8 Cypress Suprex® RS-485 Series - Common Configuration and Run Mode Settings Configuration Mode settings Standard Wiegand interface is the default setting. To use with non-Wiegand interface: a) Power off both Suprex units. b) Turn on DIP switch 1 on both units.
  • Page 9 Cypress Suprex® RS-485 Series - SPX-7500 DIP Switch Map Run Mode Configuration Mode Test Mode 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Configuration Mode Select - ON = Configuration Mode - OFF = Run Mode...
  • Page 10 Cypress Suprex® RS-485 Series - Quick Reference For Typical Connections DC Power SPX-7500 Central Supply Power Ground +8 to +16 VDC Relay 4 N.O. Ground Relay 4 Com Relay 4 N.C. Access exp(+) Relay 3 N.O. Control exp(-) Relay 3 Com...
  • Page 11 Cypress Suprex® RS-485 Series - Troubleshooting No Communication When the Central and/or Remote unit is not communicating with its partner, the status LED will flash green/red. To troubleshoot communication issues, check the following: • Power: • Both units must be powered.
  • Page 12 Cypress Suprex® RS-485 Series - Accessory I/O - Overview The Cypress SPX-7500 provides additional data channels to support access control hardware such as door strikes, tamper alarms, request to exit status, etc. These signals are sent to and from the Central and Remote units without the need to run additional wiring.
  • Page 13 Cypress Suprex® RS-485 Series - Accessory I/O - Central Relay Inputs To activate the relay on the Remote unit, connect as shown below. These connections can be used to allow the Remote relay to operate a DOOR STRIKE, GATE, or other locking hardware. The diagram below shows two methods of triggering the relays.
  • Page 14 Cypress Suprex® RS-485 Series - Accessory I/O - Relay 1 & 2 I/O Relay 1 I/O Diagram The diagram to the right +8 to +16 VDC +8 to +16 VDC shows how the state of the Relay 4 N.O. Relay 4 N.O.
  • Page 15 Cypress Suprex® RS-485 Series - Accessory I/O - Remote Relay Inputs To activate the relay on the Central unit, connect as shown below. These connections can be used to operate a REX switch or other signals that need to go to the access panel.
  • Page 16 Cypress Suprex® RS-485 Series - Accessory I/O - Relay 3 & 4 I/O Relay 3 I/O Diagram The diagram to the right +8 to +16 VDC +8 to +16 VDC shows how the state of the Relay 4 N.O. Relay 4 N.O.
  • Page 17 Cypress Suprex® RS-485 Series - Using the Remote Digital Relay Inputs This section applies only to the Remote unit, as the Central unit has only digital relay inputs. DIP switch 2 controls whether the Remote unit uses the analog relay inputs or the digital relay inputs. By default, DIP switch 2 is off and the Remote unit is set to use the analog relay inputs.
  • Page 18 Cypress Suprex® RS-485 Series - Accessory I/O - LED I/O For access control panels with a LED Output signal, the SPX-7500 is able to transmit this signal to the reader with the LED Input and LED Output pins. The LED In pin is a digital input and the LED Out pin is a digital output. The LED In pin has two states, 5V (high or normal) and 0V (low or active).
  • Page 19 Cypress Suprex® RS-485 Series - Accessory I/O - AUX I/O The SPX-7500 has an auxiliary I/O signal going from the reader side to the panel side. The SPX-7500 is able to transmit this signal to the panel with the AUX Input and AUX Output pins. The AUX In pin is a digital input and the AUX Out pin is a digital output.
  • Page 20 Application note on using supervised contacts with the Suprex® RS-485 Series The following applies to these products: SPX-7500. This application note describes the connections necessary to convey supervised contact status over a Suprex. The configurations described in this application note should apply to most panels which utilize supervised contacts. When connected as described, the Suprex provides a supervised signal to the panel interface by reading the supervised status of the contacts connected to the Suprex Remote unit.
  • Page 21 • EXP status LED is flashing green: EXP unit is properly communicating with the Suprex. • The EXP-2000 Central and Remote pair will be functionally similar to the standard Cypress SPX-1300 Suprex system. For more details, see the EXP-2000 manual.
  • Page 22 Cypress Suprex® RS-485 Series - Suprex Central and EXP Central Wiring +8 to +16 VDC Relay 4 N.O. Ground Suprex DC Power Relay 4 Com Supply Central Relay 4 N.C. exp(+) Relay 3 N.O. Power exp(-) Relay 3 Com Ground +5V Out Relay 3 N.C.
  • Page 23 Cypress Suprex® RS-485 Series - Suprex Remote and EXP Remote Wiring +8 to +16 VDC Relay 2 N.O. Ground DC Power Suprex Relay 2 Com Supply Relay 2 N.C. Remote exp(+) Relay 1 N.O. exp(-) Power Relay 1 Com Ground +5V Out Relay 1 N.C.
