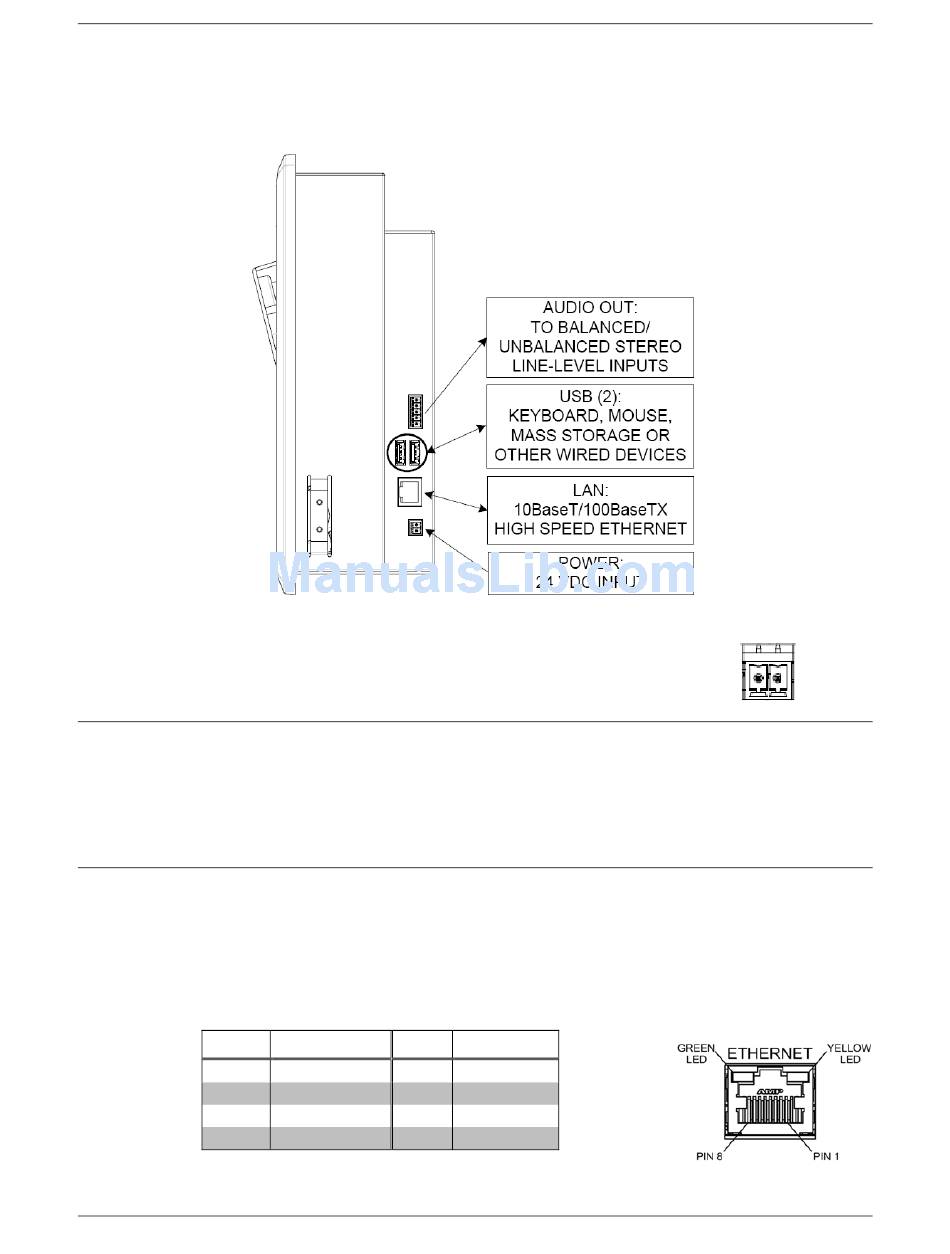

TPMC-8X-DSW

POWER
One 2-pin 3.5 mm detachable terminal block
24 Volt DC power input
Wire size: 18 AWG maximum
NOTE: If the TPMC-8X-DSW is to be fed power from a Cresnet bus (the 24 and G lines), be sure that the Cresnet data lines (Y
and Z) are not connected to the TPMC-8X-DSW, nor shorted together, to ground or to any metal surface. Be sure to isolate
them properly and prevent them from shorting to anything.
NOTE: The maximum continuous current from equipment under any external load conditions shall not exceed a current limit
that is suitable for the minimum wire gauge used in interconnecting cables. The ratings on the connecting unit's supply input
should be considered to prevent overloading the wiring.
LAN
One 8-wire RJ-45 with 2 LED indicators
10/100BaseT Ethernet port
Green LED indicates link status
Yellow LED indicates Ethernet activity.
PIN
1
2
3
4
Doc. 4903B
Crestron Quick Guide to Touchpanel Connections
SIGNAL PIN SIGNAL
TX + 5
TX - 6
RC+ 7
N/C 8
N/C
RC -
N/C
N/C
24 VDC
5
