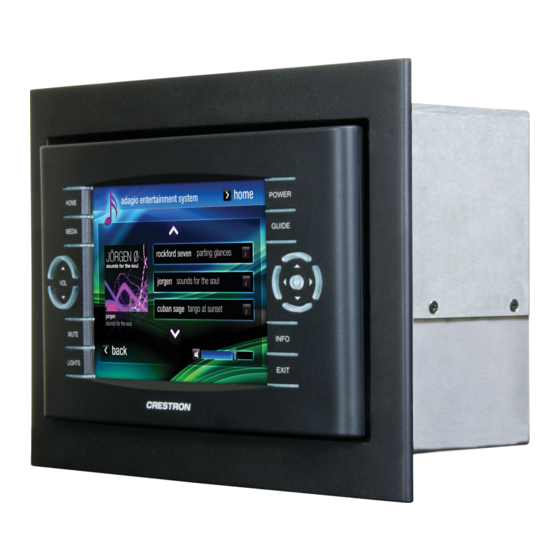

- Page 1 Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X Operations & Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2009 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X Contents Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Introduction ..........................1 Features and Functions ....................1 Specifications ......................2 Physical Description....................3 Industry Compliance ....................7 Setup ............................8 Network Wiring......................8 Supplied Hardware ...................... -
Page 5: Wall Mount Docking Station For Tps-6X: Tps-6X-Dsw
It is designed for installation in a flat, vertical wall structure. For detailed information about the TPS-6X, refer to the latest version of the TPS-6X Operations Guide (Doc. 6575), which is available from the Crestron website (www.crestron.com/manuals). Features and Functions •... -
Page 6: Specifications
Vertical Mounting Options The TPS-6X-DSW is designed for easy flush mount installation in a flat, vertical wall structure. A variety of mounting accessories is offered for both pre- and post-construction applications. -
Page 7: Physical Description
Physical Description This section provides information on the connections, controls and indicators available on your TPS-6X-DSW. TPS-6X-DSW Physical View (Shown with TPS-6X Touchpanel Installed) Wall Mount Docking Station for TPS-6X: TPS-6X-DSW • 3 Operations & Installation Guide – DOC. 6708A... - Page 8 (16.13 cm) 5.98 in (15.19 cm) 6.83 in (17.35 cm) 3.70 in (9.39 cm) TPS-6X-DSW Overall Dimensions (Front and Side Views with Bezel Attached) 9.70 in (24.63 cm) 7.11 in 18.06 cm) 4.17 in (10.60 cm) 4 • Wall Mount Docking Station for TPS-6X: TPS-6X-DSW...
- Page 9 Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X TPS-6X-DSW Overall Dimensions (Front and Side Views with Bezel and TPS-6X Touchpanel Attached) 4.50 in (11.42 cm) TPS-6X-DSW Overall Dimensions (Bottom View with Bezel Attached) 8.89 in (22.58 cm) TPS-6X-DSW (Front View with Aesthetic Plate Removed to Show Connectors) Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •...
- Page 10 3. To determine which is pin 1 on the cable, hold the cable so that the end of the eight pin modular jack is facing away from you, with the clip down and copper side up. Pin 1 is on the far left. 6 • Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A...
-
Page 11: Industry Compliance
Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X Industry Compliance As of the date of manufacture, the TPS-6X-DSW has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. Federal Communications Commission (FCC) Compliance Statement This device complies with part 15 of the FCC rules. -
Page 12: Setup
The TPS-6X-DSW can also use high-speed Ethernet for communications between the device and a control system, computer, digital media server and other IP-based devices. For information on connecting Ethernet devices in a Crestron system, refer to the latest version of the Crestron e-Control Reference Guide (Doc. -
Page 13: Mounting Options
1. Pre-construction refers to framed walls prior to hanging drywall. 2. Post-construction refers to framed walls with drywall hung. 3. Since the TPS-6X-DSW contains moving parts, mounting to a stud offers more support and is therefore highly recommended. Although Crestron offers the post-construction WMKM-6X-DSW and WMKT-6X-DSW mounting options, a mounting option that is secured to a stud, such as the BB-6X-DSW or PMK-6X-DSW is highly recommended. - Page 14 ONCE ALL CABLES ARE CONNECTED, REPLACE THE COVER PLATE. 3. Hold the TPS-6X-DSW near the back box and connect the NET, VID IN and LAN cables from the back box to the ports on the back of the unit. (Refer to “Hardware Hookup” on page 13 for details.) 4.
- Page 15 Part #4507217 comes with TPS-6X-DSW-W-S (white). 6. Use the four supplied #04-40 x 3/16” flat head screws (2007145), to attach the aesthetic plate to the front of the TPS-6X-DSW mechanism. 7. Push the mechanism backward, into the box, until it locks in place, exposing the screw holes on the left and right sides.
- Page 16 (2007203 or 2007204), two on the left side and two on the right side, to attached the bezel. 10. The TPS-6X touchpanel can now be docked. Refer to “Docking the Touchpanel’’ on page 14 for details. 12 • Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A...
-
Page 17: Removal
Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X Removal If it is necessary to remove the TPS-6X-DSW after it has been installed, complete the following steps in the order provided. The only tool required is a #2 Phillips screwdriver. 1. Undock the touchpanel. Refer to “Undocking the Touchpanel” which starts on page 14 for details. -
Page 18: Operation
Docking the Touchpanel To mount the TPS-6X, perform the following procedure in the order provided. 1. Press the OPEN button located on the front of the TPS-6X-DSW, to the right of the docking fixture. The mechanism will slide forward. 2. Position the touchpanel onto the TPS-6X-DSW at a slight angle to latch the top portion of the touchpanel to the tab on the top of the docking fixture. - Page 19 2. Slide the emergency latch release tool upward to engage the release latch. The TPS-6X-DSW mechanism will slide forward and the tab on the bottom of the docking fixture will slide clear of the recess on the rear of the touchpanel.
-
Page 20: Problem Solving
Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. TPS-6X-DSW Troubleshooting TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION... -
Page 21: Check Network Wiring
Cresnet power usage of the entire chain. If the unit is home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side. -
Page 22: Reference Documents
Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor and the other twisted pair is the Y conductor and the Z conductor. -
Page 23: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 24 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6708A 15 Volvo Drive Rockleigh, NJ 07647 (2021696) Tel: 888.CRESTRON 05.09 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
