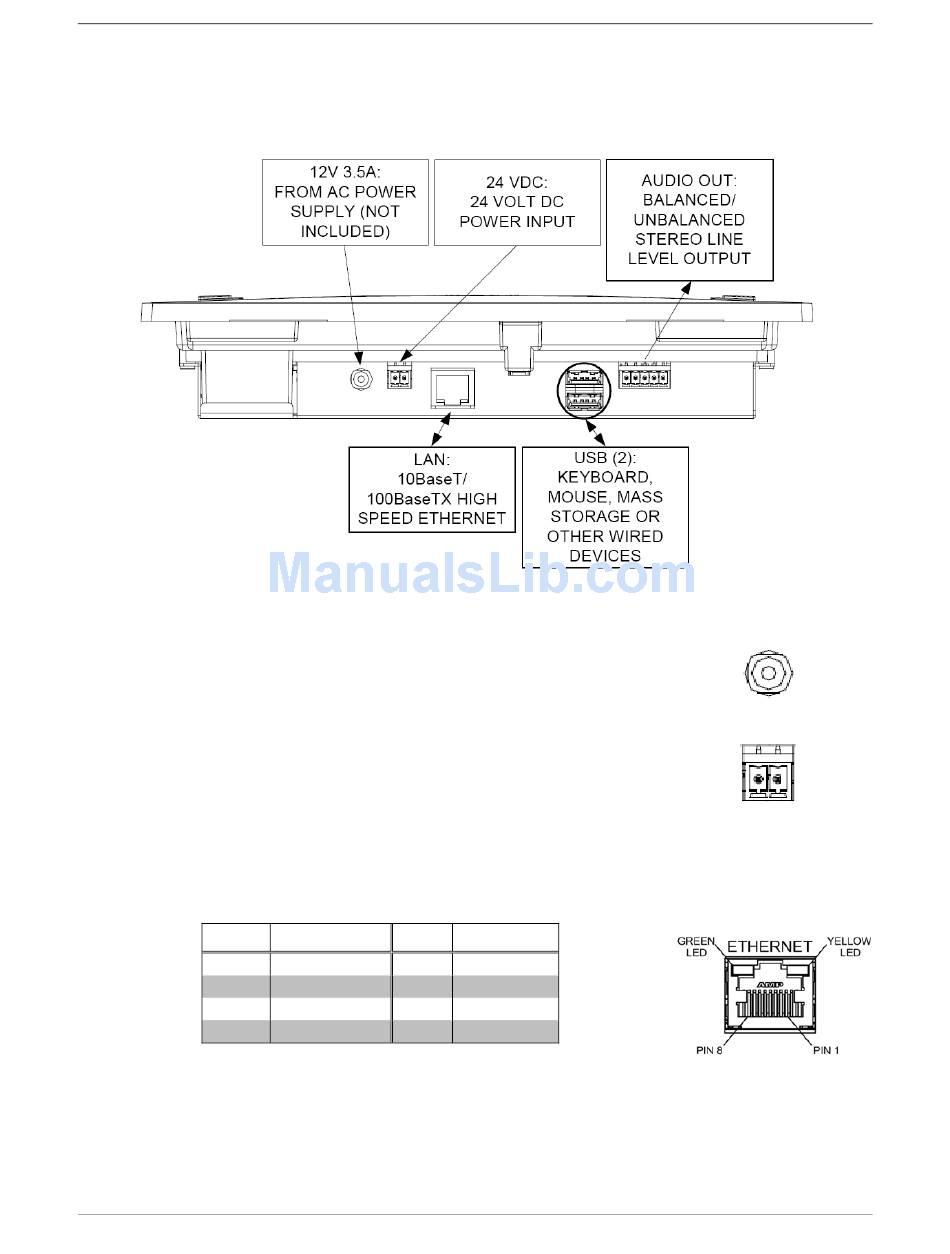

TPMC-8L

Power
One 2.5 mm barrel DC power jack; 12 Volt DC power input (power
supply not included).
One 2-pin 3.5 mm detachable terminal block
24 Volt DC power input; Wire size: 18 AWG maximum
LAN
One 8-wire RJ-45 with 2 LED indicators
10/100BaseT Ethernet port
Green LED indicates link status
Yellow LED indicates Ethernet activity
PIN
1
2
3
4
2
Crestron Quick Guide to Touchpanel Connections
SIGNAL PIN SIGNAL
TX + 5
TX - 6
RC+ 7
N/C 8
N/C
RC -
N/C
N/C
12V 3.5A
24 VDC
Doc. 4903B
