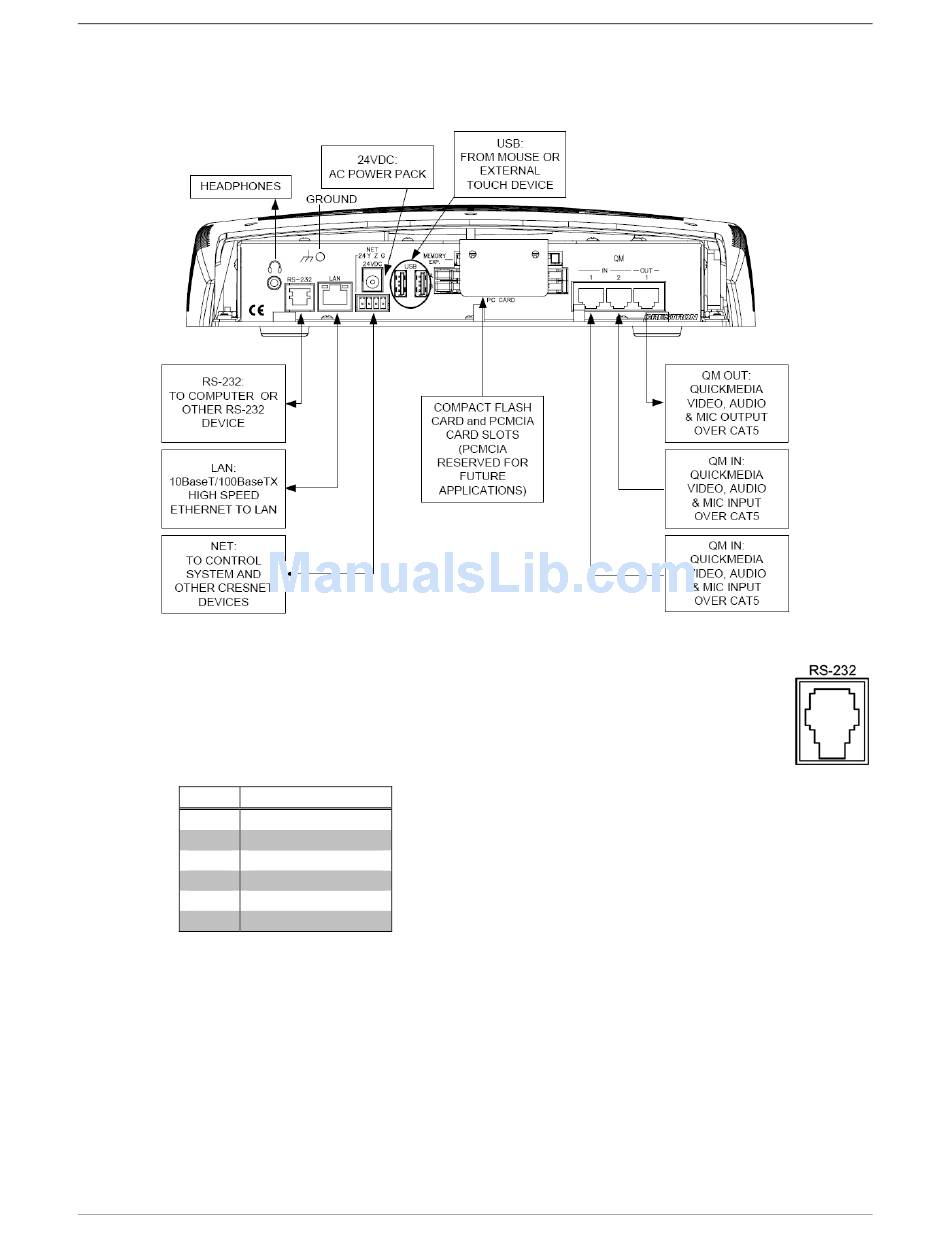

TPS-12G-QM and TPS-15G-QM
RS-232
This 6-pin RJ-11 connector mates with a 9-pin serial port of a PC. The connecting cable is not
supplied. Use this port to establish a direct connection between the touchpanel and a PC
without a control system or network connection. Once the direct connection is established,
touchpanel files and firmware updates can be uploaded to the touchpanel. Additionally, the
touchpanel's diagnostic tools can be accessed over the direct connection.
PIN DESCRIPTION
1 CTS
2 GND
3 RXD
4 TXD
5 RTS
6 N/C (Not connected)
14
Crestron Quick Guide to Touchpanel Connections
Doc. 4903B
