- Page 1 Crestron TPS-6X-DS & TPS-6XNL-DS Docking Stations for the TPS-6X Series Operations Guide...
-
Page 2: Regulatory Compliance
1-888-CRESTRON Regulatory Compliance As of the date of manufacture, the TPS-6X-DS & TPS-6XNL-DS have been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. All brand names, product names and trademarks are the property of their respective owners. -
Page 3: Table Of Contents
Crestron TPS-6X-DS & TPS-6XNL-DS Docking Stations Contents Docking Stations for the TPS-6X Series: TPS-6X-DS & TPS-6XNL-DS Introduction ..........................1 Features and Functions ....................1 Specifications ......................2 Physical Description....................3 Setup ............................6 Hardware Hookup ....................... 6 Recommended Cleaning....................6 Operation ........................... -
Page 5: Docking Stations For The Tps-6X Series: Tps-6X-Ds & Tps-6Xnl-Ds

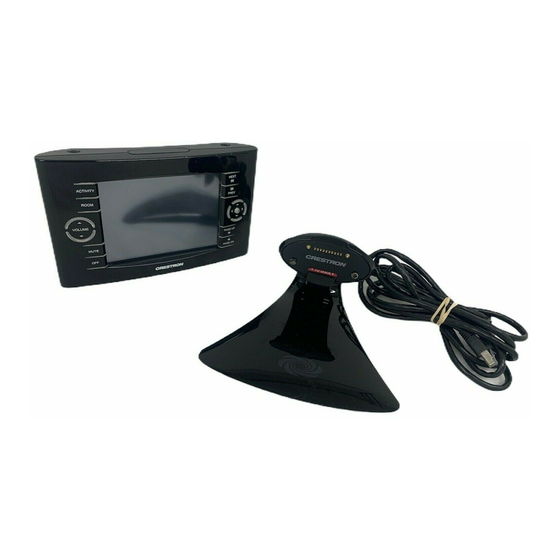

Series: TPS-6X-DS & TPS-6XNL-DS Introduction The TPS-6X-DS is the desktop docking station that is included as standard with the Isys™ TPS-6X Series Wireless Touchpanels. Placing the touchpanel onto the TPS-6X-DS converts it to a stylish tilt touchpanel, providing wired communications and video capability while charging the touchpanel’s internal battery. -
Page 6: Specifications
Crestron TPS-6X-DS & TPS-6XNL-DS Tilt Docking Port The tiltable docking port on the TPS-6X-DS allows the touchpanel to be tilted at any angle up to 45 degrees for optimal viewing and operation. The angle can be freely adjusted during use or locked down at a fixed angle. Strong magnets help guide the touchpanel onto the docking port and hold it in place. -
Page 7: Physical Description
Swivel Mount Kit Physical Description This section provides information on the connections, controls and indicators available on your TPS-6X-DS. TPS-6X-DS Physical View (Locking Model Shown) Docking Stations for the TPS-6X Series: TPS-6X-DS & TPS-6XNL-DS • 3 Operations Guide – DOC. 6876B... - Page 8 NOTE: Dimensions of the locking and No Lock models are the same. TPS-6X-DS Overall Dimensions (Top View) 7.03 in (179 mm) 6.47 in (165 mm) 6.98 in (178 mm) 4 • Docking Stations for the TPS-6X Series: TPS-6X-DS & TPS-6XNL-DS Operations Guide – DOC. 6876B...
- Page 9 Power 24V White 1. The interface module connector fixed onto the TPS-6X-DS is to be connected to the TPS-6X-IMCW’s TO PANEL port. 2. To determine which is pin 1 on the cable, hold the cable so that the end of the ten pin modular plug is facing away from you, with the clip down and copper side up.
-
Page 10: Setup
Crestron TPS-6X-DS & TPS-6XNL-DS Setup Hardware Hookup The only connection to the TPS-6X-DS is via the fixed cable, which is connected to the TO PANEL port on the (included) TPS-6X-IMCW Interface Module. When connecting the TPS-6X-DS, consider the following: •... -
Page 11: Operation
Magnets on the TPS-6X-DS attach to metal plates installed on the TPS-6X to secure the touchpanel in place (refer to the illustration below). - Page 12 Operating Modes NOTE: This section applies to the locking models only. The TPS-6X-DS can be configured into a lock mode or unlock mode to either secure or release the TPS-6X Series touchpanel. The touchpanel can also be configured to permanently lock the touchpanel onto the TPS-6X-DS using a locking pin accessory.
- Page 13 Docking Stations for the TPS-6X Series: TPS-6X-DS & TPS-6XNL-DS • 9 Operations Guide – DOC. 6876B...
-
Page 14: Resources
Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 15: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 16 Crestron Electronics, Inc. Operations Guide – DOC. 6876B 15 Volvo Drive Rockleigh, NJ 07647 (2025143) Tel: 888.CRESTRON 01.10 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
