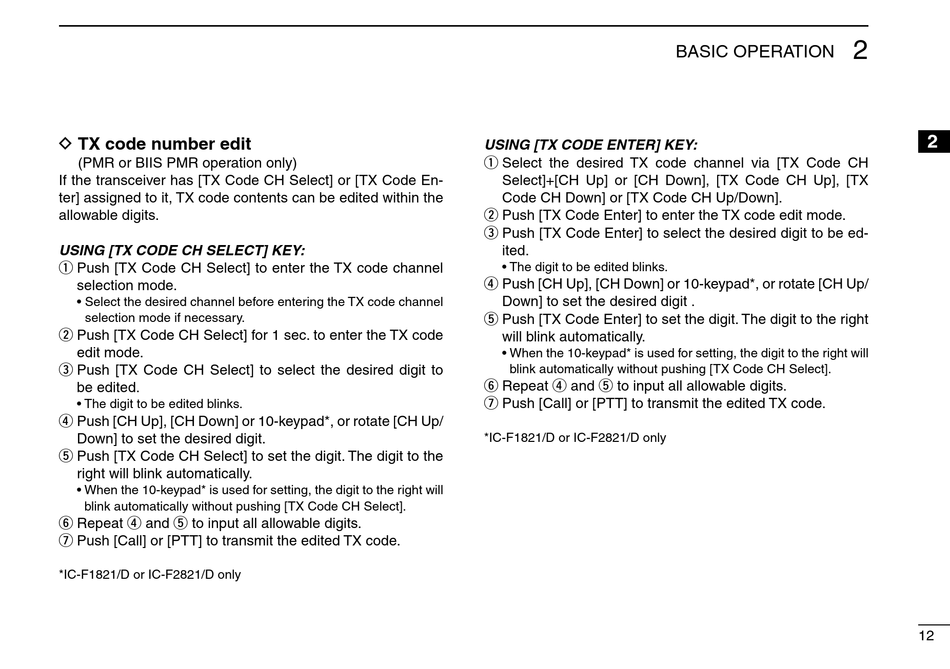

D TX code number edit

(PMR or BIIS PMR operation only)
If the transceiver has [TX Code CH Select] or [TX Code En-
ter] assigned to it, TX code contents can be edited within the
allowable digits.
USING [TX CODE CH SELECT] KEY:
Push [TX Code CH Select] to enter the TX code channel
q
selection mode.
• Select the desired channel before entering the TX code channel
selection mode if necessary.
Push [TX Code CH Select] for 1 sec. to enter the TX code
w
edit mode.
Push [TX Code CH Select] to select the desired digit to
e
be edited.
• The digit to be edited blinks.
Push [CH Up], [CH Down] or 10-keypad*, or rotate [CH Up/
r
Down] to set the desired digit.
Push [TX Code CH Select] to set the digit. The digit to the
t
right will blink automatically.
• When the 10-keypad* is used for setting, the digit to the right will
blink automatically without pushing [TX Code CH Select].
Repeat r and t to input all allowable digits.
y
Push [Call] or [PTT] to transmit the edited TX code.
u
*IC-F1821/D or IC-F2821/D only
USING [TX CODE ENTER] KEY:
Select the desired TX code channel via [TX Code CH
q
Select]+[CH Up] or [CH Down], [TX Code CH Up], [TX
Code CH Down] or [TX Code CH Up/Down].
Push [TX Code Enter] to enter the TX code edit mode.
w
Push [TX Code Enter] to select the desired digit to be ed-
e
ited.
• The digit to be edited blinks.
Push [CH Up], [CH Down] or 10-keypad*, or rotate [CH Up/
r
Down] to set the desired digit .
Push [TX Code Enter] to set the digit. The digit to the right
t
will blink automatically.
• When the 10-keypad* is used for setting, the digit to the right will
blink automatically without pushing [TX Code CH Select].
Repeat r and t to input all allowable digits.
y
Push [Call] or [PTT] to transmit the edited TX code.
u
*IC-F1821/D or IC-F2821/D only
