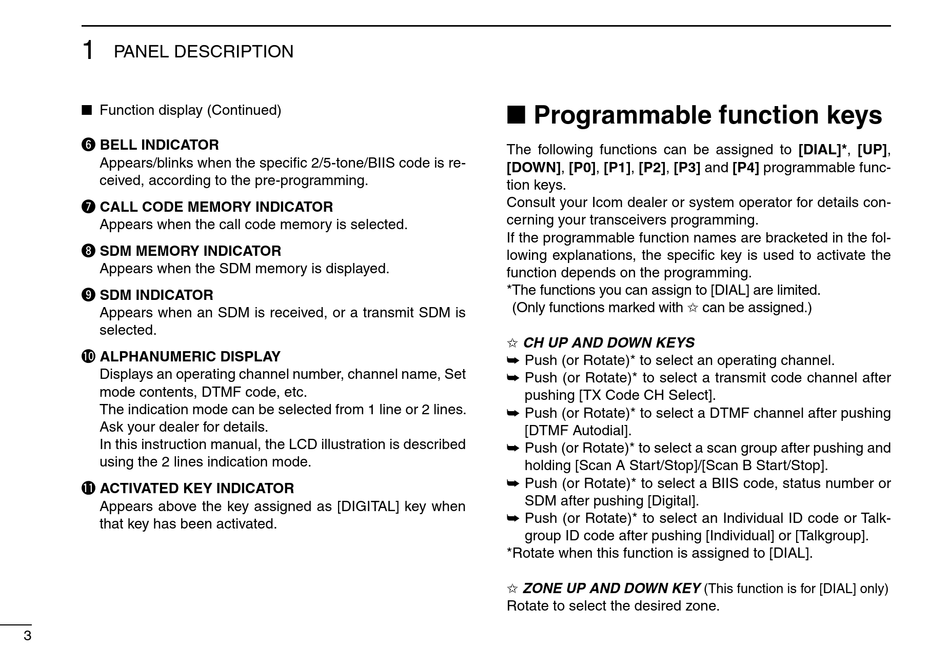

1
PANEL DESCRIPTION
Function display (Continued)
■
y BELL INDICATOR
Appears/blinks when the specific 2/5-tone/BIIS code is re-
ceived, according to the pre-programming.
u CALL CODE MEMORY INDICATOR
Appears when the call code memory is selected.
i SDM MEMORY INDICATOR
Appears when the SDM memory is displayed.
o SDM INDICATOR
Appears when an SDM is received, or a transmit SDM is
selected.
!0 ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name, Set
mode contents, DTMF code, etc.
The indication mode can be selected from 1 line or 2 lines.
Ask your dealer for details.
In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!1 ACTIVATED KEY INDICATOR
Appears above the key assigned as [DIGITAL] key when
that key has been activated.
3

Programmable function keys

■
The following functions can be assigned to [DIAL]*, [UP],
[DOWN], [P0], [P1], [P2], [P3] and [P4] programmable func-
tion keys.
Consult your Icom dealer or system operator for details con-
cerning your transceivers programming.
If the programmable function names are bracketed in the fol-
lowing explanations, the specific key is used to activate the
function depends on the programming.
* The functions you can assign to [DIAL] are limited.
(Only functions marked with ✩ can be assigned.)
✩ CH UP AND DOWN KEYS
Push (or Rotate)* to select an operating channel.
➥
Push (or Rotate)* to select a transmit code channel after
➥
pushing [TX Code CH Select].
Push (or Rotate)* to select a DTMF channel after pushing
➥
[DTMF Autodial].
Push (or Rotate)* to select a scan group after pushing and
➥
holding [Scan A Start/Stop]/[Scan B Start/Stop].
Push (or Rotate)* to select a BIIS code, status number or
➥
SDM after pushing [Digital].
Push (or Rotate)* to select an Individual ID code or Talk-
➥
group ID code after pushing [Individual] or [Talkgroup].
* Rotate when this function is assigned to [DIAL].
✩ ZONE UP AND DOWN KEY
Rotate to select the desired zone.
(This function is for [DIAL] only)
