2
PRODUCT INTRODUCTION
2.1 Models
These LevelOne 11" Fast Ethernet Switches are multi-speed, versatile
network devices combining both standard and "Big-Pipe" ports under the
same hood. The Switches are Twenty-Four (24) ports and Sixteen (16) ports
Fast Ethernet Switches.
2.2 Key Features
Store-and-Forward technology filtering/forwarding is used to eliminate bad
packets.
Back-Pressure Flow-Control support for Half-Duplex operation.
IEEE802.3x Flow-Control support for Full-Duplex operation.
LEDs on front panel for easy access and real time viewing of Switch status.
All TP ports support Auto-MDI/MDIX, and Auto-Negotiation function.

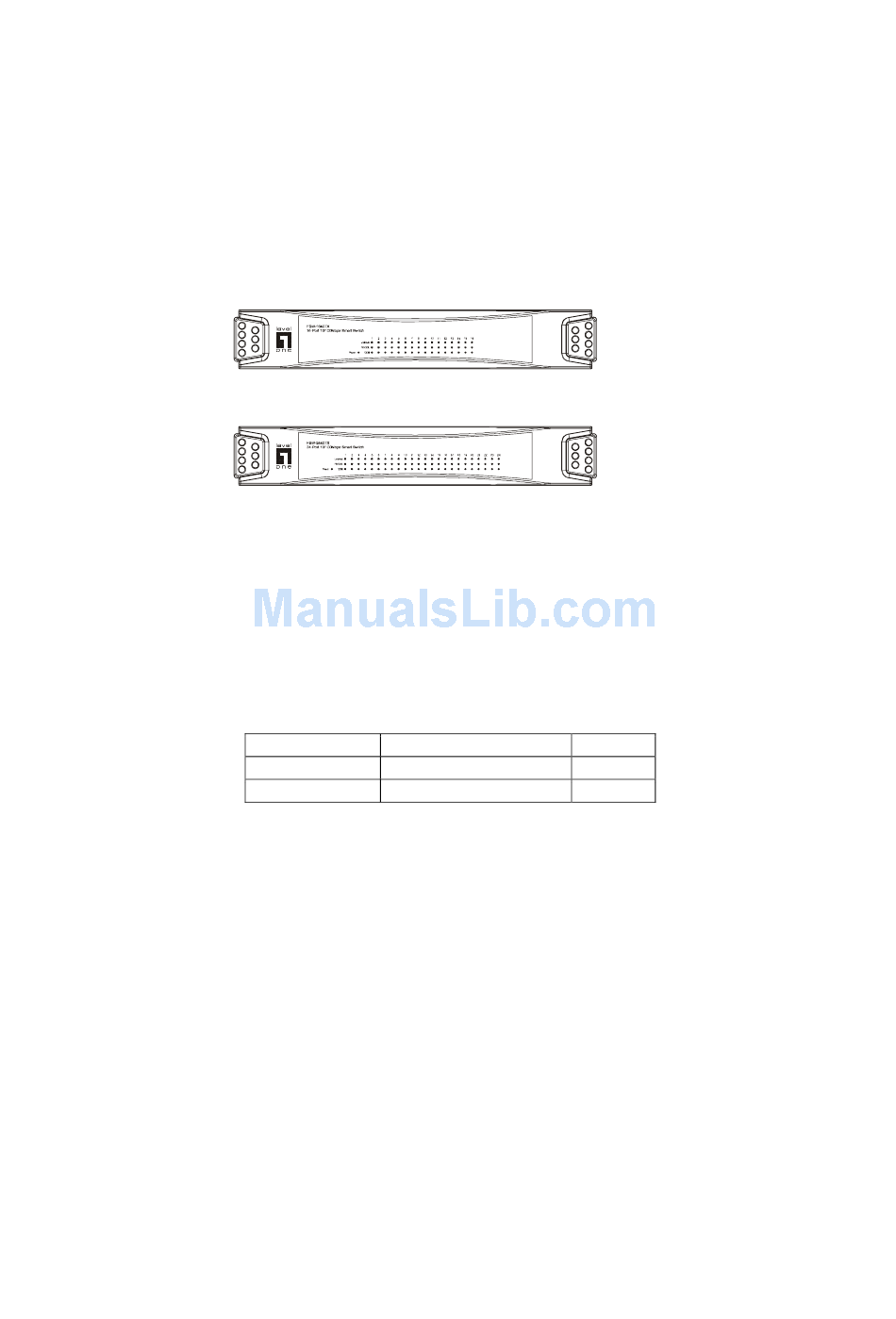

2.3 Front Panel
16-Port 100BASE-TX Fast Ethernet Switch
24-Port 100BASE-TX Fast Ethernet Switch
2.3.1 10/100Mbps TP Ports
Each 10/100Mbps TP port provides an Auto-Negotiation function that senses
for the attached device's maximum operating speed and automatically sets
the Switch to operate at that speed. Users only need to connect a network
device into any TP port. Auto-MDIX is also supported on all TP ports which
allows uplinking to another Switch free of cross-over or straight cable
selection hassle.
2.3.2 Cabling
10Mbps -When transmitting at 10Mbps Category 3, 4 or 5 TP cabling with
RJ-45 sockets can be used.
100Mbps -To transmit at 100Mbps requires Category 5 TP cabling.
Port Type
10BASE-T
100BASE-TX
Note: Category 5 TP cable is recommended whenever installing new cabling.
2.3.3 Status LEDs
The Switches come with a complete range of LEDs. The table below lists
each LEDs name, color and a brief description of its function.
Cable Type
Category 3, 4 or 5 TP
Cat.5 TP
6
Connector
RJ-45
RJ-45
