Name Color Function
Pwr Green Lit: Power "On"
LINK/ACT Green Lit: When the port has a valid physical connection with
another device.
Blinks: When the port is sending or receiving data
(Activity).
FD/Half Green Lit: When the port is set to Full-Duplex mode.
OFF: When the port is in Half-Duplex mode.
Speed Green Lit: When the port is operating at 100Mbps.
Off: When the port is operating at 10Mbps.

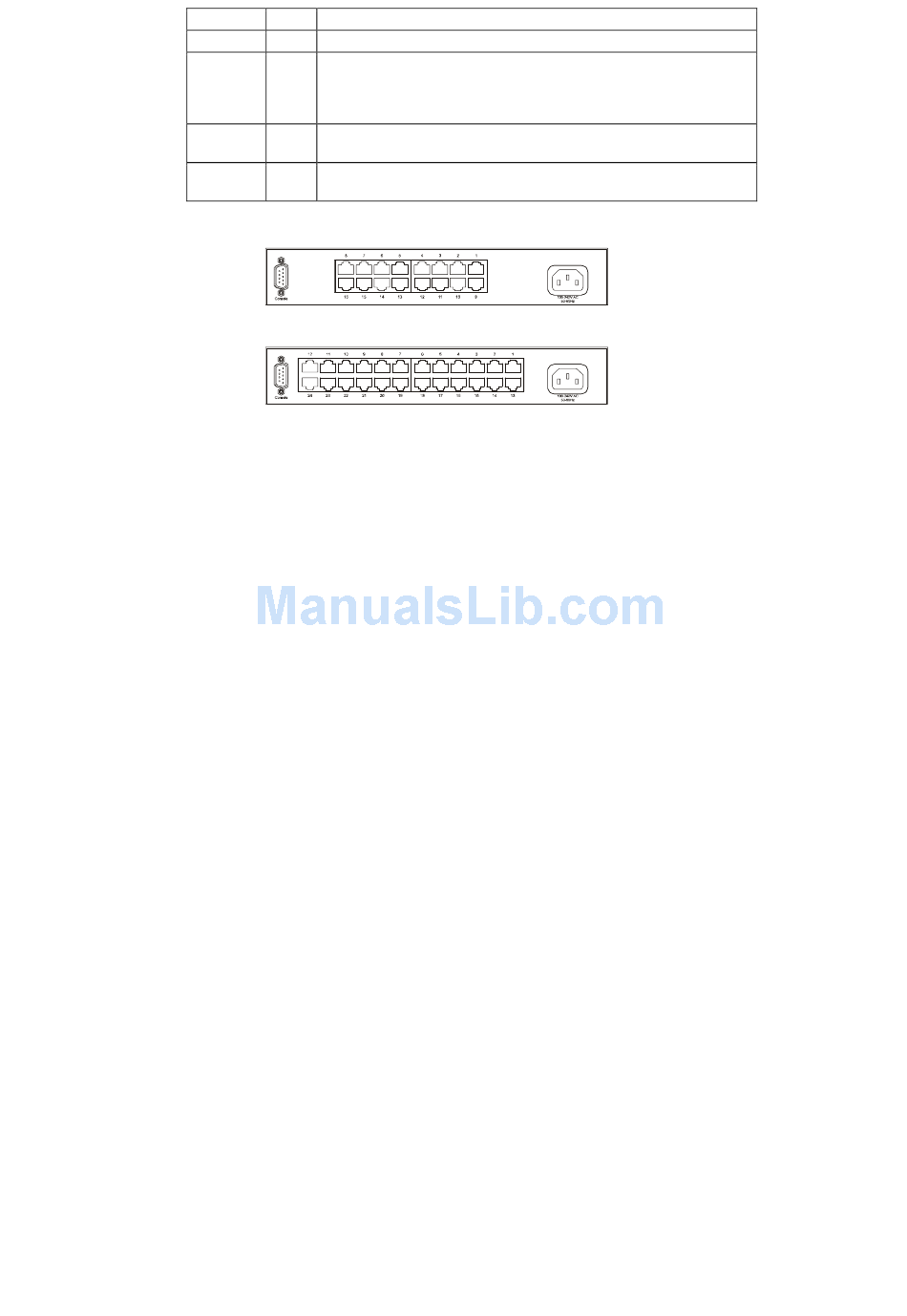

2.4 Rear Panel

16-Port 100BASE-TX Fast Ethernet Switch
24-Port 100BASE-TX Fast Ethernet Switch

2.4.1 Power Socket

The Power Socket is designed to be used with the power cord included in the
product package.
Attach the female end of the cord to the power connector on the back panel.
Attach the male end of the cord to a grounded power outlet.
7
