Summary of Contents for LevelOne FSW-1621

  • Page 1: User Manual

    LevelOne FSW-1621 FSW-2421 16/24-port 10/100BASE-TX Fast Ethernet Switch User Manual Rev.2.00-0705...
  • Page 3 1. Introduction Congratulations on your purchase of FSW-1621/2421. The FSW-1621/2421, 16/24-port 10/100Base-TX Switch, is a multi-port Switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. The Switch is targeted at workgroup, department or backbone computing environment at SME (small, medium enterprise) business.
  • Page 4: Package Contents

    User Guide 19” Rack-Mount Kits Power Cord Rubber Feet Figure 1-2. Package Contents Compare the contents of your FSW-1621/2421 10/100Base-TX Switch package with the standard checklist above. If any item is missing or damaged, please contact your local dealer for service.
  • Page 5: Hardware Description

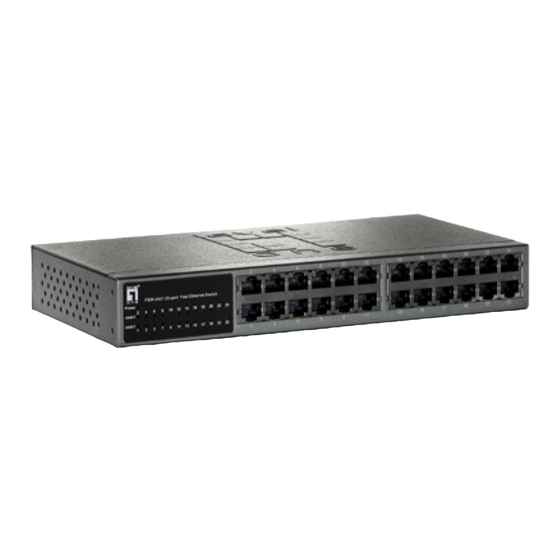

    250mmx 133 mm x 37mm (L x W x H) Front Panel FSW-1621/2421 consists of 16/24 x 10/100Base-TX RJ-45 ports. The LED Indicators are also located on the front panel of the Switch. Figure 2-1. The Front view of FSW-1621/2421 RJ-45 ports (Auto MDI/MDIX): 16/24x 10/100Mbps auto-sensing port for 10Base-T or 100Base-TX devices connection.
  • Page 6: Led Indicators

    The 3-pronged power plug is located at the rear panel of the 16/24-port 10/100Base-TX Switch as show in the Figure 2-3. The Switch will work with AC in the range 100-240V AC, 50-60Hz. Figure 2-3. The Rear Panel of FSW-1621/2421...
  • Page 7: Desktop Installation

    Then attach the remaining bracket to the other side of the Switch. B. After attached both mounting brackets, position FSW-1621/2421 in the rack by lining up the holes in the brackets with the appropriate holes on the rack.
  • Page 8: Network Application

    3.Network Application This section provides you a few samples of network topology in which the Switch is used. In general, FSW-1621/2421 is designed as a segment switch. That is, with its large address table and high performance, it is ideal for interconnecting networking segments.
  • Page 9: Segment Bridge

    In the illustration below, two Ethernet switches with PCs, print server, and local server attached, are both connect to the FSW-1621/2421. All those devices in this network can communicate with each other through FSW-1621/2421 Switch. Connecting servers to the Switch allow other users to access the server’s data.
  • Page 10: Technical Specification

    Store and Forward switching architecture 14,880 pps Ethernet port Transfer Rate 148,800 pps Fast Ethernet port MAC address 4K/8K Mac address table for FSW-1621/2421 Memory Buffer 4Mbits/1.25Mbits of FSW-1621/2421 10BASE-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) Network Cable 100BASE-TX: 2-pair UTP/STP Cat.
