    LevelOne FSW-1610TX FSW-2410TX 16/24-Port Fast Ethernet Switch User Manual Version 1.1-0609...

  • Page 3: Ce Mark Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    ABLE OF ONTENTS ABOUT THIS GUIDE ... 1 ... 1 URPOSE ERMS SAGE VERVIEW OF THIS INTRODUCTION ... 2 THERNET WITCHING ... 4 EATURES UNPACKING AND INSTALLATION ... 6 ... 6 NPACKING NSTALLATION OUNTING IDENTIFYING EXTERNAL COMPONENTS ... 8 RONT ANEL ...

  • Page 5: Overview Of Thi User' Guide

    This guide discusses how to install your 16/24-port 10/100Mbps Fast Ethernet Switch. Terms/Usage In this guide, the term “Switch” (first letter upper case) refers to your 16/24-Port 10/100Mbps Fast Ethernet Switch, and ”switch” (first letter lower case) refers to other Ethernet switches.

  • Page 6: Introduction

    NTRODUCTION This chapter describes the features of the Switch and some background information about Ethernet/Fast Ethernet switching technology. Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks.

  • Page 7: Switching Technology

    For Fast Ethernet networks, a switch is an effective way of eliminating problems of chaining hubs beyond the “two-repeater limit.” A switch can be used to split parts of the network into different collision...

  • Page 8: Features

    As all ports support 200Mbps, the Switch can be cascaded from any port and to any number of switches. The Switch is a perfect choice for site planning to upgrade to Fast Ethernet in the future. Ethernet workgroups can connect to the Switch now, and change adapters and hubs anytime later without needing to change the Switch or reconfigure the network.
  • Page 9 The Switch is an unmanaged 10/100 Fast Ethernet Switch that offers solutions in accelerating small Ethernet workgroup bandwidth. Other key features are: 16/24-Port 10/100BASE Ethernet Switch with RJ-45 connectors Support Auto-negotiation for speed and duplex modes for each port Supports Auto-MDI/MDI-X for each port...

  • Page 10: Unpacking And Installation

    If any item is found missing or damaged, please contact your local reseller for replacement. Installation The site where you install the Switch stack may greatly affect its performance. When installing, consider the following pointers: Install the Switch in a fairly cool and dry place. See Specifications for the acceptable temperature and humidity operating ranges.

  • Page 11: Rack Mounting

    Install the Switch on a sturdy, level surface that can support its weight, or in an EIA standard-size equipment rack. For information on rack installation, see the next section, Rack Mounting. When installing the Switch on a level surface, attach the rubber feet to the bottom of each device.

  • Page 12: Identifying External Components

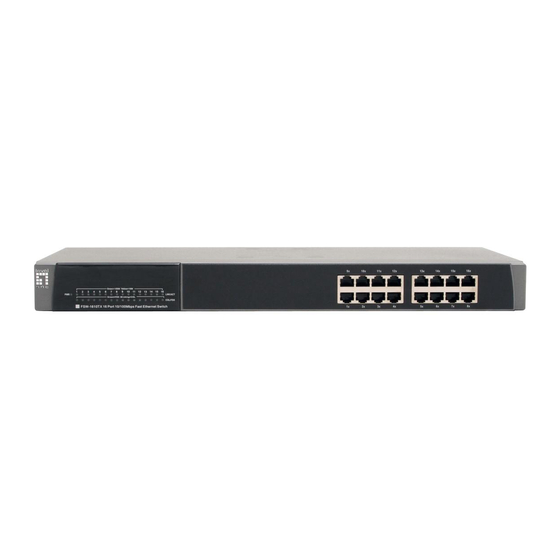

    The figure below shows the front panels of the switch. FSW-2410TX 24-port 10/100Mbps Fast Ethernet Switch LED Indicator Panel Refer to the detailed information about each of the switch’s LED indicators. Power (PWR) This indicator lights green when the switch is receiving power, otherwise, it is off.

  • Page 13: Twisted-Pair Ports

    Twisted-Pair Ports These ports supports automatic MDI/MDIX crossover detection function gives true ‘plug and play’ capability without the need of confusing crossover cables or crossover ports. With the Auto-MDI function, you just need to plug-in the network cable to the hub directly and no need to care if the end node is NIC (Network Interface Card) or switches and hubs.

  • Page 14: Physical And Environmental

    Number of 16/24 x 10/100Mbps Auto-MDI ports Ports AC inputs 100 to 240 VAC, 50 or 60 Hz internal universal power supply Power FSW-1610TX Consumption FSW-2410TX Temperature Operating: 0° ~ 40° C, Storage: -10° ~ 70° C Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90%...
