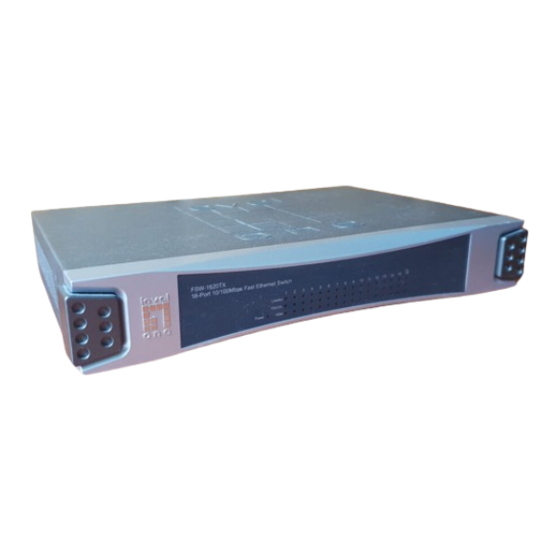

- Page 1 LevelOne FSW-1620TX FSW-2420TX 16/24-Port 10/100Mbps 11" Fast Ethernet Switch User’s Guide Version: 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS UNPACKING INFORMATION ...3 PRODUCT INTRODUCTION ...4 ...4 ODELS ...4 EATURES ...4 RONT ANEL 2.3.1 10/100Mbps TP Ports...4 2.3.2 Cabling...4 2.3.3 Status LEDs...4 ...5 ANEL 2.4.1 Power Socket...5 INSTALLATION ...6 O LOCATE THE SWITCH ON A DESKTOP ACKMOUNT PLACEMENT HELPFUL SUGGESTIONS ...7 ...7 RIOR TO... -
Page 3: Unpacking Information
Thank you for purchasing LevelOne 11" Fast Ethernet Switch. Before continuing, please check the contents of the product package. This product package should contain the following items: One (1) Switch One (1) Power Cord Four (4) Rubber Feet Rackmount Kit This User’s Guide... -
Page 4: Product Introduction
Models These LevelOne 11" Fast Ethernet Switches are multi-speed, versatile network devices combining both standard and "Big-Pipe" ports under the same hood. The Switches are Twenty-Four (24) ports and Sixteen (16) ports Fast Ethernet Switches. Key Features For FSW-1620TX Support 16-port 10/100M wire speed Ethernet Store-and-Forward technology filtering/forwarding is used to eliminate bad packets. -
Page 5: Rear Panel
Name Color Function Green Lit: Power "On" LINK/ACT Green Lit: When the port has a valid physical connection with another device. Blinks: When the port is sending or receiving data (Activity). FD/COL Green Lit: When the port is set to Full-Duplex mode. Blinks: When a collision is detected, when the port is in Half-Duplex mode. -
Page 6: Installation
The LevelOne 11" Fast Ethernet Switch is "Plug-&-Play". It does not require software configuration. Users can immediately use any of the features of this product simply by attaching the cables and turning on the power. If user need advanced smart functions to manage LAN network more effectively, we provide software and cable for easy configuration of the Switch. -
Page 7: Helpful Suggestions
Prior to Installation Before installing the Switch and connecting network devices, it is important to plan the network's layout. Things you should consider include: Dedicated Bandwidth: File servers and other high-traffic hardware improve their performance if they have their own dedicated 10Mbps or 100Mbps bandwidth. Full-Duplex: Determine which devices support Full-Duplex connections. -
Page 8: Mac Address Table
10Mbps 10Mbps (10BASE-T, Half-Duplex) no Auto-Negotiation 10Mbps 20Mbps (10BASE-T, Full-Duplex) with Auto-Negotiation Note: If the attached device is set to a fixed mode (ex: Forced Full-Duplex) it will not operate as an Auto-Negotiation device. MAC Address Table Every Ethernet data packet includes both source and destination addresses. This Six (6)-bytes ID is called the MAC (Media Access Control) Address. -
Page 9: Sample Application
The optimal application for the Switch is as a "big pipe" backbone interconnecting file servers with bandwidth-hungry workgroups, departments, and offices. FSW-2420TX Workstation with 10/100Mbps Fast Ethernet Adapter 100BASE-TX FSW-1620TX Workstation with 10/100Mbps Fast Ethernet Adapter... -
Page 10: Product Specifications
Model Standards IEEE 802.3: 10BASE-T IEEE 802.3u: 100BASE-TX EEE 802.3x: Flow-Control for Full-Duplex operation Ports Sixteen (16) 100BASE-TX (Copper) Media Support 10BASE-T: Category 3, 4 or 5 TP 100BASE-TX: Category 5 TP Bandwidth 100BASE-TX: 200/100Mbps 10BASE-T: 20/10Mbps Forwarding/Filtering 148810 packets/second per port @ 100Mbps, maximum Rate 14881 packets/second per port @ 10Mbps, maximum 8.5 µsec @100Mbps, minimum... - Page 11 Model Standards IEEE 802.3: 10BASE-T IEEE 802.3u: 100BASE-TX EEE 802.3x: Flow-Control for Full-Duplex operation Ports Twenty-Four (24) 100BASE-TX (Copper) Media Support 10BASE-T: Category 3, 4 or 5 TP 100BASE-TX: Category 5 TP Bandwidth 100BASE-TX: 200/100Mbps 10BASE-T: 20/10Mbps Forwarding/Filtering 148810 packets/second per port @ 100Mbps, maximum Rate 14881 packets/second per port @ 10Mbps, maximum 8 µsec @100Mbps, minimum...
- Page 12 FCC WARNING This equipment has been tested and found to comply with the limits for a Class A computing device pursuant to Part 15 of FCC Rules, which are designed to provide reasonable protection against electromagnetic interference in a commercial environment. Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
