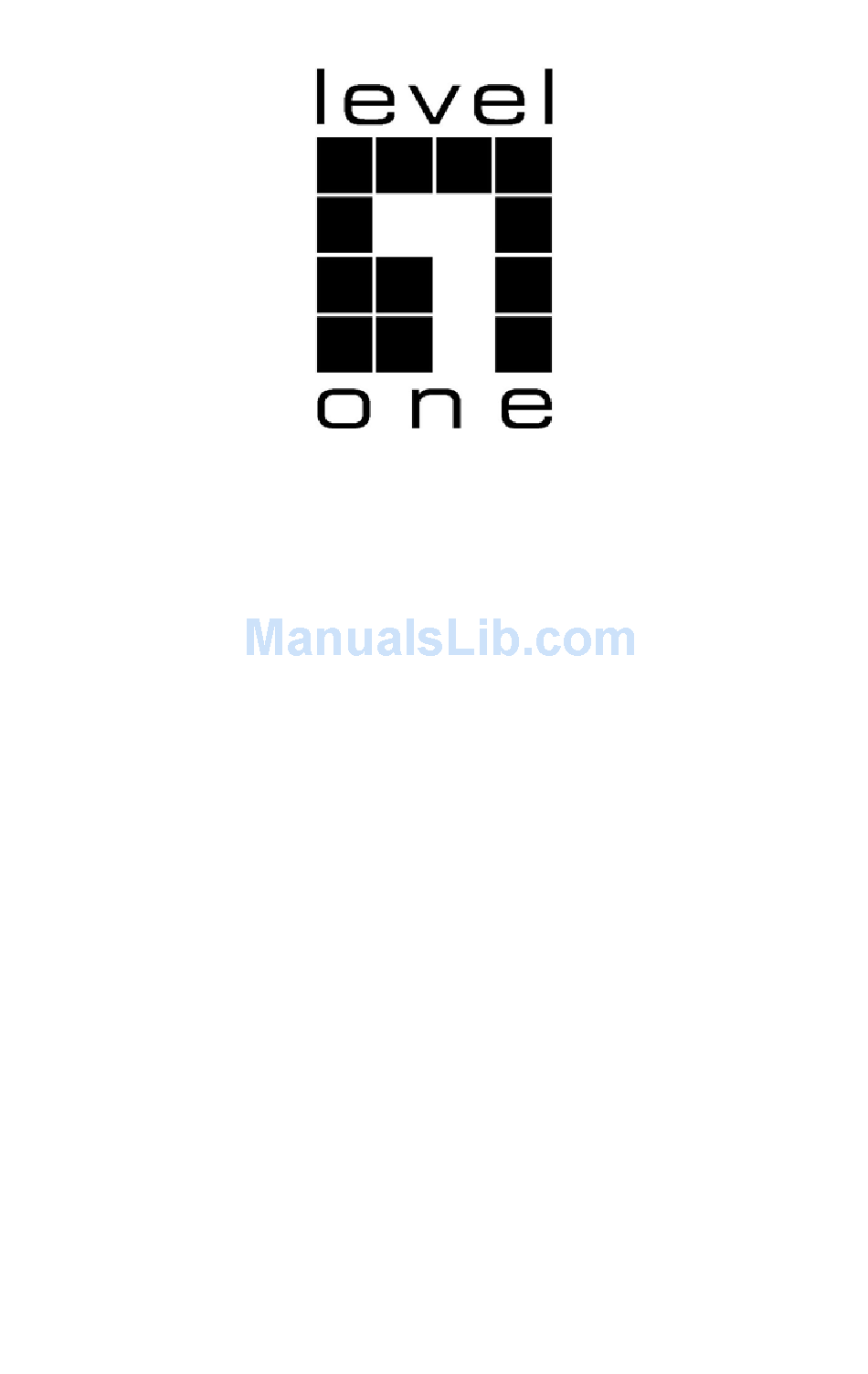

- Page 1 FSW-1650 FSW-2450 User Manual 16/24-Port 10/100 Rackmount Switch V2.0.0.0812...
- Page 2 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. LevelOne is a registered trademark of Digital Data Communications Asia Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Digital Data Communications Asia Co., Ltd.
-
Page 3: Fcc Statement
FCC STATEMENT The Switch has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Package Contents
Package Contents: The following contents should be found in your box: One FSW-1650 / FSW-2450 Switch One power cord This User's Guide Mounting screws and two “L” planks Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. -
Page 5: Table Of Contents
CONTENTS Chapter 1 Introduction of the Product ........... 1 Overview of the product ..............1 Features ..................1 Chapter 2 Installation ............... 1 Mounting the Switch on a Desk ............1 Mounting the Switch in a Rack ............2 Power on ..................3 Chapter 3 Identifying External Components ........ -
Page 6: Chapter 1 Introduction Of The Product

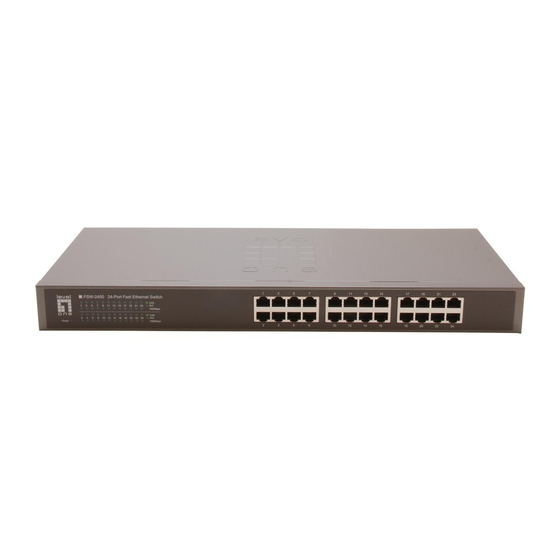

10/100 Rackmount Switch User's Guide Chapter 1 Introduction of the Product This chapter describes the features of the model of FSW-1650/FSW-2450 16/24- port 10/100 Rackmount Switch. FSW-1650 and FSW-2450 just differ in the number of LED indicators and ports, all figures in this guide are of FSW-2450. -
Page 7: Mounting The Switch In A Rack
Make sure not to place anything to heavy on top of the switch. Mounting the Switch in a Rack The dimension of FSW-1650 / FSW-2450 is designed according to the standard 19” rack-mountable steel case of Electronic Industries Association. -
Page 8: Power On
10/100 Rackmount Switch User's Guide Power on Power on The FSW-1650/FSW-2450 16/24-port 10/100 Rackmount switch is The FSW-1650/FSW-2450 16/24-port 10/100 Rackmount switch is powered by an AC Power Supply. Connect the Switch and power outlet powered by an AC Power Supply. Connect the Switch and power outlet by power cord. - Page 9 FSW-1650/FSW-2450 10/100 Rackmount Switch User's Guide section shows the LED indicators of the Switch along with an explanation of each indicator. Figure 3-3 FSW-2450 Switch LEDs sketch Power LED: This indicator will light solid red when the Switch powers up. If the LED is not lit, please check the power supply and connection.
-
Page 10: Appendix A: Specifications
FSW-1650/FSW-2450 10/100 Rackmount Switch User's Guide Appendix A: Specifications General Standards IEEE802.3 10Base-T IEEE802.3u 100Base-TX Topology Star Protocol CSMA/CD Ethernet: 10Mbps (Half Duplex), 20Mbps (FullDuplex) Data Transfer Rate Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) Number of Ports 16/24 10/100Mbps Auto-Negotiation RJ-45 ports Safety &... -
Page 11: Appendix B: Troubleshooting
FSW-1650/FSW-2450 10/100 Rackmount Switch User's Guide Appendix B: Troubleshooting The Power LED is not lit Make sure the AC power cord connected the Switch with power source properly. Make sure the power source is ON. The Link/Act LED is not lit when a device is connected to the...
